2EH Series | ISO 16028 DP Multicoupling (Steel)

2EH Series | ISO 16028 DP Multicoupling (Steel)
2EH Series | ISO 16028 DP Multicoupling (Steel)2EH Series | ISO 16028 DP Multicoupling (Steel)2EH Series | ISO 16028 DP Multicoupling (Steel)2EH Series | ISO 16028 DP Multicoupling (Steel)2EH Series | ISO 16028 DP Multicoupling (Steel)
CategoriesMulticouplings
InterchangeSTUCCHI DP PLATE SERIES
Update TimeSep 12,2025
Contact Now
Favorites
Detail Information
Items
Specs
Applications

2EH Series

Hydraulic Multicoupling (Steel), Flat Face Couplings, ISO-16028 Standard

Connect Under Pressure

This EH series is interchangeable with STUCCHI DP PLATE SERIES. The multicoupling series offers an efficient solution for simultaneous hydraulic line connections, featuring multiple configurable sets of 3/8" or 1/2" plugs and couplers operated via a steel handle for quick, secure engagement. Designed for demanding applications, all couplers are zinc-nickel plated for corrosion resistance and support connect-under-pressure functionality, ensuring reliable performance in high-pressure systems. The modular design allows individual coupler replacement after reaching their recommended service life.

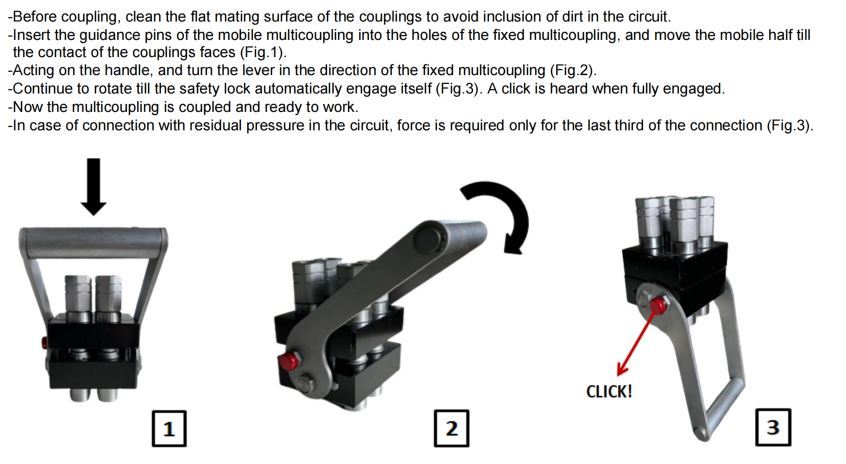

To Connect


multicoupling series

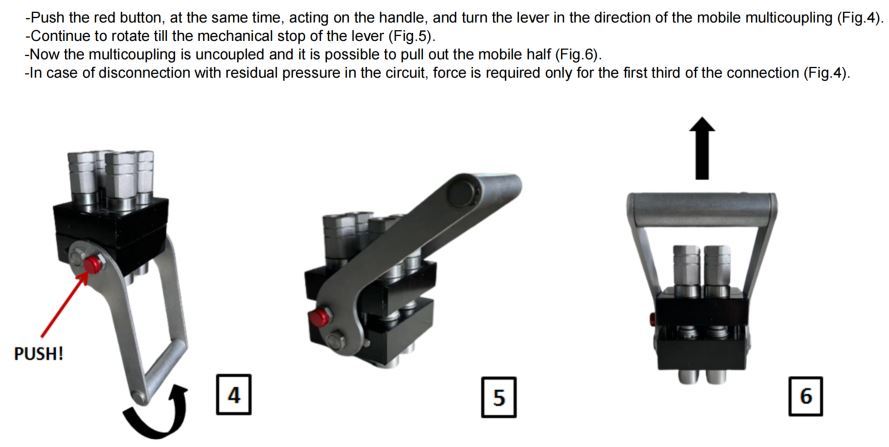

To Disconnect

multicoupling series

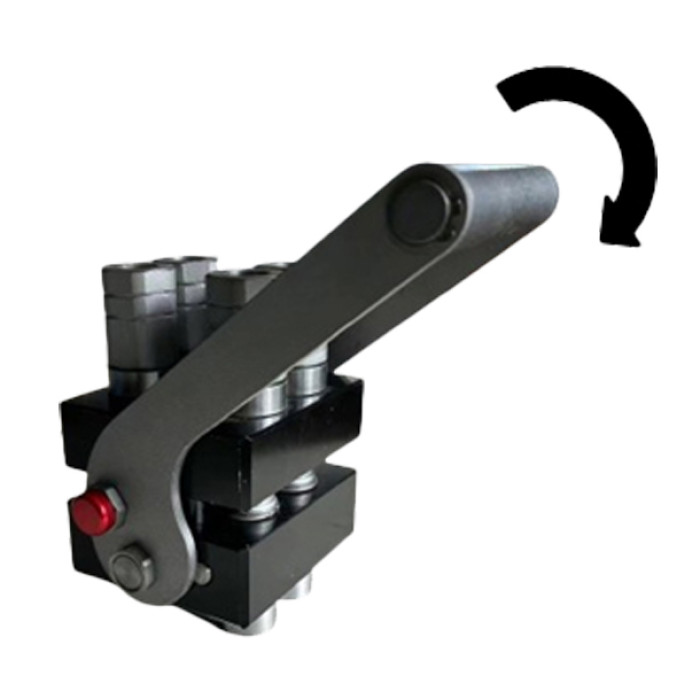

Fixed & Mobile Multicoupling


Fixed & Mobile Multicoupling
Cap for Fixed Multicoupling

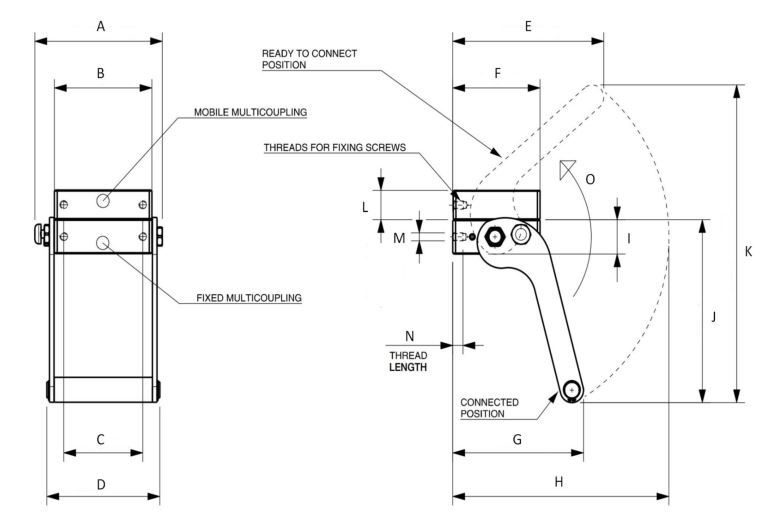

Hydraulic Lines & Dimensions - Part 1
Hydraulic
Lines
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
F(mm)
G(mm)
H(mm)
I(mm)
J(mm)
2x3/8''
102.2
70
50
86.6
131.9
94
130.3
194
34.5
145
2x1/2''
112.2
80
60
96.6
172.5
114
150.6
242.6
34.5
183.6
4x3/8''
137.2
105
85
121.6
162.5
94
140.6
232.6
34.5
183.6
4x1/2''
157.2
125
105
141.6
172.5
114
150.6
242.6
34.5
183.6
6x3/8''
137.2
105
85
121.6
204.2
135.7
182.3
274.3
34.5
183.6
6x1/2''
157.2
125
105
141.6
233.5
165
211.6
303.6
34.5
183.6
Hydraulic Lines & Dimensions - Part 2
Hydraulic
Lines
K(mm)
L(mm)
M
N(mm)
O
P(mm)
Q(mm)
R(mm)
S(mm)
T(mm)
2x3/8''
254.4
29.3
M8
11
115°
50
93.5
70
11
34.5
2x1/2''
318.8
33.1
M8
17
115°
60
113.5
80
17
34.5
4x3/8''
318.8
29.3
M8
11
115°
85
93.5
105
11
34.5
4x1/2''
318.8
33.1
M8
17
115°
105
113.5
125
17
34.5
6x3/8''
318.8
29.3
M8
11
115°
85
134
105
11
34.5
6x1/2''
318.8
33.1
M8
17
115°
105
164.8
125
17
34.5
Hydraulic Lines & Dimensions - Part 3
Hydraulic
Lines
U(mm)
V
W(mm)
X(mm)
Y(mm)
Z(mm)
AA(mm)
BB
CC(mm)
DD(mm)
2x3/8''
29.3
M8
70
50
94
10.9
22
M8
44
11
2x1/2''
33.1
M8
80
60
114
10.9
22
M8
44
17
4x3/8''
29.3
M8
105
85
94
10.9
22
M8
44
11
4x1/2''
33.1
M8
125
105
114
10.9
22
M8
44
17
6x3/8''
29.3
M8
105
85
134.5
10.9
22
M8
44
11
6x1/2''
33.1
M8
125
105
164.8
10.9
22
M8
44
17
Part Numbers & Technical Data (2 Hydraulic Lines), Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Multi
Coupling
Unit
Body Size
(Inch)
Hydraulic
Lines
Threads
Electric
Lines
2EH206-2-38G-MF
Mobile Half
3/8''
2x3/8''
3/8'' BSPP
Female
/
2EH206-2-38G-MF-P
Mobile Half +
Park Station
3/8''
2x3/8''
3/8'' BSPP
Female
/
2EH206-2-38G-FF
Fixed Half
3/8''
2x3/8''
3/8'' BSPP
Female
/
2EH206-2-38G-FF-C
Fixed Half + Cap
3/8''
2x3/8''
3/8'' BSPP
Female
/
2EH206-2-38G-F
Complete Set
3/8''
2x3/8''
3/8'' BSPP
Female
/
2EH206-2-12G-MF
Mobile Half
3/8''
2x3/8''
1/2'' BSPP
Female
/
2EH206-2-12G-MF-P
Mobile Half +
Park Station
3/8''
2x3/8''
1/2'' BSPP
Female
/
2EH206-2-12G-FF
Fixed Half
3/8''
2x3/8''
1/2'' BSPP
Female
/
2EH206-2-12G-FF-C
Fixed Half + Cap
3/8''
2x3/8''
1/2'' BSPP
Female
/
2EH206-2-12G-F
Complete Set
3/8''
2x3/8''
1/2'' BSPP
Female
/
2EH208-2-12G-MF
Mobile Half
1/2''
2x1/2''
1/2'' BSPP
Female
/
2EH208-2-12G-MF-P
Mobile Half +
Park Station
1/2''
2x1/2''
1/2'' BSPP
Female
/
2EH208-2-12G-FF
Fixed Half
1/2''
2x1/2''
1/2'' BSPP
Female
/
2EH208-2-12G-FF-C

Fixed Half + Cap
1/2''
2x1/2''
1/2'' BSPP
Female
/
2EH208-2-12G-F

Complete Set
1/2''
2x1/2''
1/2'' BSPP
Female
/
2EH208-2-34G-MF

Mobile Half
1/2''
2x1/2''
3/4'' BSPP
Female
/
2EH208-2-34G-MF-P

Mobile Half +
Park Station
1/2''
2x1/2''
3/4'' BSPP
Female
/
2EH208-2-34G-FF

Fixed Half
1/2''
2x1/2''
3/4'' BSPP
Female
/
2EH208-2-34G-FF-C
Fixed Half + Cap
1/2''
2x1/2''
3/4'' BSPP
Female
/
2EH208-2-34G-F
Complete Set
1/2''
2x1/2''
3/4'' BSPP
Female
/
Part Numbers & Technical Data (4 Hydraulic Lines), Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Multi
Coupling
Unit
Body Size
(Inch)
Hydraulic
Lines
Threads
Electric
Lines
2EH206-4-38G-MF
Mobile Half
3/8''
4x3/8''
3/8'' BSPP
Female
/
2EH206-4-38G-MF-P
Mobile Half +
Park Station
3/8''
4x3/8''
3/8'' BSPP
Female
/
2EH206-4-38G-FF
Fixed Half
3/8''
4x3/8''
3/8'' BSPP
Female
/
2EH206-4-38G-FF-C
Fixed Half + Cap
3/8''
4x3/8''
3/8'' BSPP
Female
/
2EH206-4-38G-F
Complete Set
3/8''
4x3/8''
3/8'' BSPP
Female
/
2EH206-4-12G-MF
Mobile Half
3/8''
4x3/8''
1/2'' BSPP
Female
/
2EH206-4-12G-MF-P
Mobile Half +
Park Station
3/8''
4x3/8''
1/2'' BSPP
Female
/
2EH206-4-12G-FF
Fixed Half
3/8''
4x3/8''
1/2'' BSPP
Female
/
2EH206-4-12G-FF-C
Fixed Half + Cap
3/8''
4x3/8''
1/2'' BSPP
Female
/
2EH206-4-12G-F
Complete Set
3/8''
4x3/8''
1/2'' BSPP
Female
/
2EH208-4-12G-MF
Mobile Half
1/2''
4x1/2''
1/2'' BSPP
Female
/
2EH208-4-12G-MF-P
Mobile Half +
Park Station
1/2''
4x1/2''
1/2'' BSPP
Female
/
2EH208-4-12G-FF
Fixed Half
1/2''
4x1/2''
1/2'' BSPP
Female
/
2EH208-4-12G-FF-C

Fixed Half + Cap
1/2''
4x1/2''
1/2'' BSPP
Female
/
2EH208-4-12G-F

Complete Set
1/2''
4x1/2''
1/2'' BSPP
Female
/
2EH208-4-34G-MF

Mobile Half
1/2''
4x1/2''
3/4'' BSPP
Female
/
2EH208-4-34G-MF-P

Mobile Half +
Park Station
1/2''
4x1/2''
3/4'' BSPP
Female
/
2EH208-4-34G-FF

Fixed Half
1/2''
4x1/2''
3/4'' BSPP
Female
/
2EH208-4-34G-FF-C
Fixed Half + Cap
1/2''
4x1/2''
3/4'' BSPP
Female
/
2EH208-4-34G-F
Complete Set
1/2''
4x1/2''
3/4'' BSPP
Female
/
Part Numbers & Technical Data (6 Hydraulic Lines), Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Multi
Coupling
Unit
Body Size
(Inch)
Hydraulic
Lines
Threads
Electric
Lines
2EH206-6-38G-MF
Mobile Half
3/8''
6x3/8''
3/8'' BSPP
Female
/
2EH206-6-38G-MF-P
Mobile Half +
Park Station
3/8''
6x3/8''
3/8'' BSPP
Female
/
2EH206-6-38G-FF
Fixed Half
3/8''
6x3/8''
3/8'' BSPP
Female
/
2EH206-6-38G-FF-C
Fixed Half + Cap
3/8''
6x3/8''
3/8'' BSPP
Female
/
2EH206-6-38G-F
Complete Set
3/8''
6x3/8''
3/8'' BSPP
Female
/
2EH206-6-12G-MF
Mobile Half
3/8''
6x3/8''
1/2'' BSPP
Female
/
2EH206-6-12G-MF-P
Mobile Half +
Park Station
3/8''
6x3/8''
1/2'' BSPP
Female
/
2EH206-6-12G-FF
Fixed Half
3/8''
6x3/8''
1/2'' BSPP
Female
/
2EH206-6-12G-FF-C
Fixed Half + Cap
3/8''
6x3/8''
1/2'' BSPP
Female
/
2EH206-6-12G-F
Complete Set
3/8''
6x3/8''
1/2'' BSPP
Female
/
2EH208-6-12G-MF
Mobile Half
1/2''
6x1/2''
1/2'' BSPP
Female
/
2EH208-6-12G-MF-P
Mobile Half +
Park Station
1/2''
6x1/2''
1/2'' BSPP
Female
/
2EH208-6-12G-FF
Fixed Half
1/2''
6x1/2''
1/2'' BSPP
Female
/
2EH208-6-12G-FF-C

Fixed Half + Cap
1/2''
6x1/2''
1/2'' BSPP
Female
/
2EH208-6-12G-F

Complete Set
1/2''
6x1/2''
1/2'' BSPP
Female
/
2EH208-6-34G-MF

Mobile Half
1/2''
6x1/2''
3/4'' BSPP
Female
/
2EH208-6-34G-MF-P

Mobile Half +
Park Station
1/2''
6x1/2''
3/4'' BSPP
Female
/
2EH208-6-34G-FF

Fixed Half
1/2''
6x1/2''
3/4'' BSPP
Female
/
2EH208-6-34G-FF-C
Fixed Half + Cap
1/2''
6x1/2''
3/4'' BSPP
Female
/
2EH208-6-34G-F
Complete Set
1/2''
6x1/2''
3/4'' BSPP
Female
/

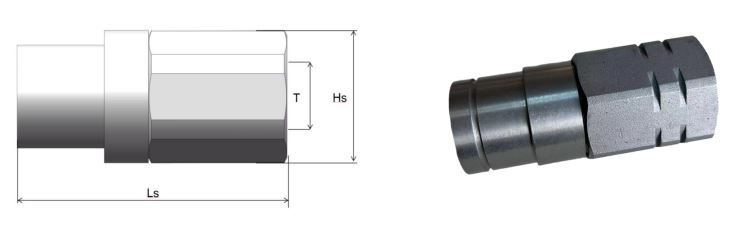

Replacement Female Coupler


Replacement Female Coupler
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (Inch)
Ls(mm)
Hs(mm)
T
2EHC06-38G-F
3/8''
72.4
S30
3/8" BSPP Female
2EHC06-12G-F
3/8''
72.4
S30
1/2" BSPP Female
2EHC08-12G-F
1/2''
84.2
S36
1/2" BSPP Female
2EHC08-34G-F
1/2''
84.2
S36
3/4" BSPP Female

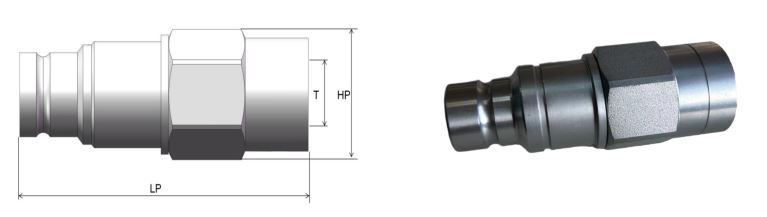

Replacement Male Plug


Replacement Female Coupler
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (Inch)
Lp(mm)
Hp(mm)
T
2EHP06-38G-F
3/8''
80
S27
3/8" BSPP Female
2EHP06-12G-F
3/8''
80
S27
1/2" BSPP Female
2EHP08-12G-F
1/2''
91
S36
1/2" BSPP Female
2EHP08-34G-F
1/2''
91
S36
3/4" BSPP Female

Technical Specifications

Coupler Dash Size
Coupler Body Size (Inch)
Max. Work PressureMobile Half(bar)
Min. BurstPressure Mobile Half(bar)
Max. Work Pressure Fixed Half (bar)
Min. Burst Pressure Fixed Half (bar)
Max. Work PressureReplacement Male Plug(bar)
Min. Burst PressureReplacement Male Plug (bar)
Max. Work Pressure Replacement Female Coupler(bar)
Min. Burst
Pressure
Replacement Female
Coupler
(bar)
06
3/8''
350
1000
350
1200
350
1200
350
1000
08
1/2''
330
1000
330
1200
330
1200
330
1000
Material:
Steel, Aluminum
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
MATE 1000 (ZnNi)
Specifications:
Series Interchange:
STUCCHI DP PLATE SERIES
Valve Type:
Flat
Connection:
Lever
Disconnection:
Lever
Connection Under Pressure:
Allowed Residual
