EH1001,1002 Series | Low Pressure Brass Ball Valve (Brass)
| Categories | Low Pressure Brass Valves and Hose Tails |
|---|---|
| MOQ (Minimum Order Quantity) | 1000 Pieces |
| Update Time | Sep 12,2025 |
Detail Information
EH1001 Series

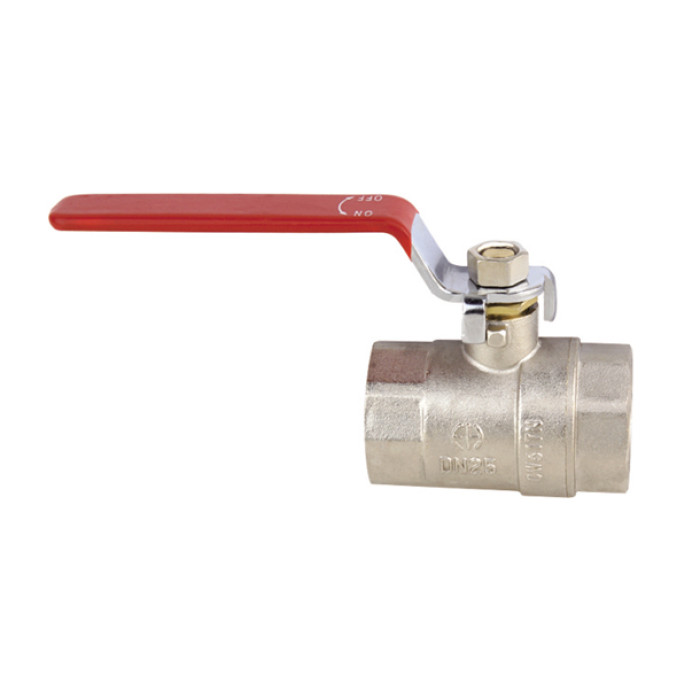

Low Pressure 2-Way Brass Ball Valve, Red Steel Flat Handle (Brass)
Brass Product. Suitable for industrial, pneumatic, domestic, and hydraulic installations. Steam, gasoline, fuel, oils, gas-oil, kerosene, acids, compressed air, etc. Minimum and maximum working temperature: -15°C-120°C. Available from 1/4'' to 2'' body sizes.
Dimensions
| Other Threads/Fitting Ends Are Available Upon Request | |||||
Body Size(Inch) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
1/4'' | 41.8 | 8 | 21.5 | 65.5 | 41 |
3/8'' | 45 | 10 | 25 | 65.5 | 42 |
1/2'' | 53 | 14 | 29 | 91.5 | 47.2 |
3/4'' | 60.7 | 19 | 35.5 | 101 | 56 |
1'' | 69 | 23 | 42 | 118 | 61.5 |
1-1/4'' | 84 | 31 | 55.5 | 114.5 | 68 |
1-1/2'' | 98 | 39.5 | 68 | 176 | 81 |
2'' | 118 | 48 | 83 | 176 | 87.5 |
| Other Threads/Fitting Ends Are Available Upon Request | |||||
Body Size(Inch) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
1/4'' | 52 | 8 | 21.5 | 65.5 | 41 |
3/8'' | 55 | 10 | 25 | 65.5 | 42 |
1/2'' | 59 | 14 | 29 | 91.5 | 47.2 |
3/4'' | 68.2 | 19 | 35.5 | 101 | 56 |
1'' | 76.2 | 23 | 42 | 118 | 61.5 |
1-1/4'' | 94.5 | 31 | 55.5 | 114.5 | 68 |
1-1/2'' | 104.5 | 39.5 | 68 | 176 | 81 |
2'' | 130 | 48 | 83 | 176 | 87.5 |
