84 Series | TURKEY FERRO Screw To Connect Quick Coupling (Steel)

Categories	Specialty Couplers
Interchange	TURKEY FERRO STHD SERIES
Update Time	Sep 12,2025

Detail Information

84 Series

High Pressure Screw To Connect Coupling (Steel)

Poppet Valve

This EH series is interchangeable with TURKEY FERRO STHD SERIES. The 84 series features poppet valve quick couplings that are specialized for Turkey, Iran, and the Middle East countries.

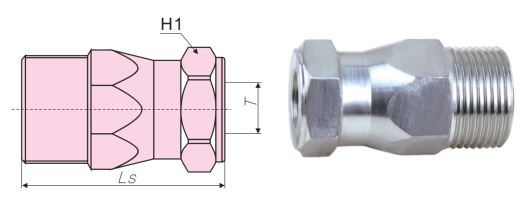

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	H1(mm)	T
HFSFC8414-1/4"	1/4''	55	S27	1/4"BSPP
HFSFC8438-3/8"	3/8''	61	S30	3/8"BSPP
HFSFC8412-1/2"	1/2''	68	S36	1/2"BSPP
HFSFC8434-3/4"	3/4''	82	S41	3/4"BSPP
HFSFC8410-1"	1''	100	S50	1"BSPP

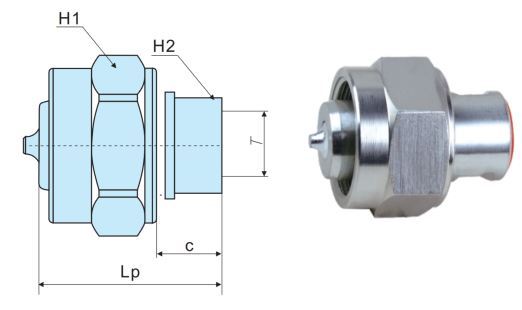

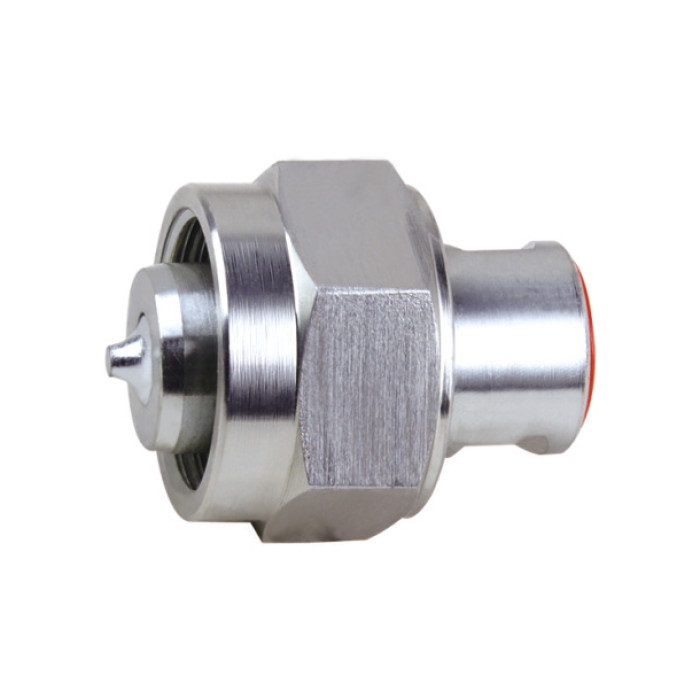

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	C(mm)	H1(mm)	H2(mm)	T
HFSFP8414-1/4"	1/4''	41	16	S32	16	1/4"BSPP
HFSFP8438-3/8"	3/8''	45.5	17	S36	20	3/8"BSPP
HFSFP8412-1/2"	1/2''	48	17	S41	25	1/2"BSPP
HFSFP8434-3/4"	3/4''	55	18	S50	32	3/4"BSPP
HFSFP8410-1"	1''	66	22	S60	40	1"BSPP

Accessories

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
04	1/4''	720	720	720	/	/	/	/
06	3/8''	700	700	700	/	/	/	/
08	1/2''	680	680	680	/	/	/	/
12	3/4''	660	660	660	/	/	/	/
16	1''	590	590	590	/	/	/	/

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	TURKEY FERRO STHD SERIES
	Valve Type:	Poppet
	Connection:	Screw To Connect
	Disconnection:	Unscrew to Disconnect
	Connection Under Pressure:	Not Allowed
