102 Series | ARGENTINA COMEL Quick Coupler (Steel)

Categories	Specialty Couplers
Interchange	ARGENTINA COMEL E SERIES
Update Time	Sep 12,2025

Detail Information

102 Series

Hydraulic Special Quick Coupling (Steel)-Poppet Valve

This EH series is interchangeable with the ARGENTINA COMEL E SERIES. Steel Product. The 102 series coupling is a family of quick couplings for hydraulic systems and for high-pressure water. A manually operated locking ring provides extra security against involuntary disconnection. Both steel and brass valves are available.

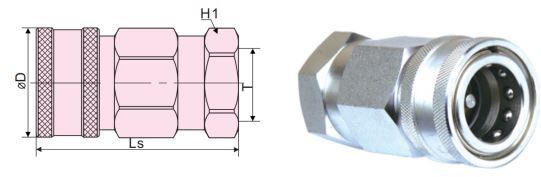

Female

Hydraulic Special Quick Coupling (Steel)

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	H1(mm)	T
HFSFC10234-3/4"	3/4''	83	45	S39	3/4" BSPP(NPTF)
HFSFC10210-1"	1''	93.5	54	S46	1" BSPP(NPTF)

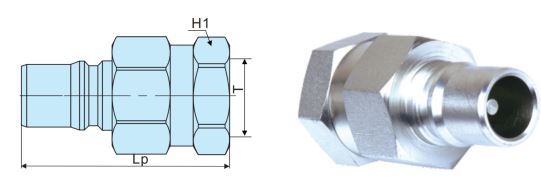

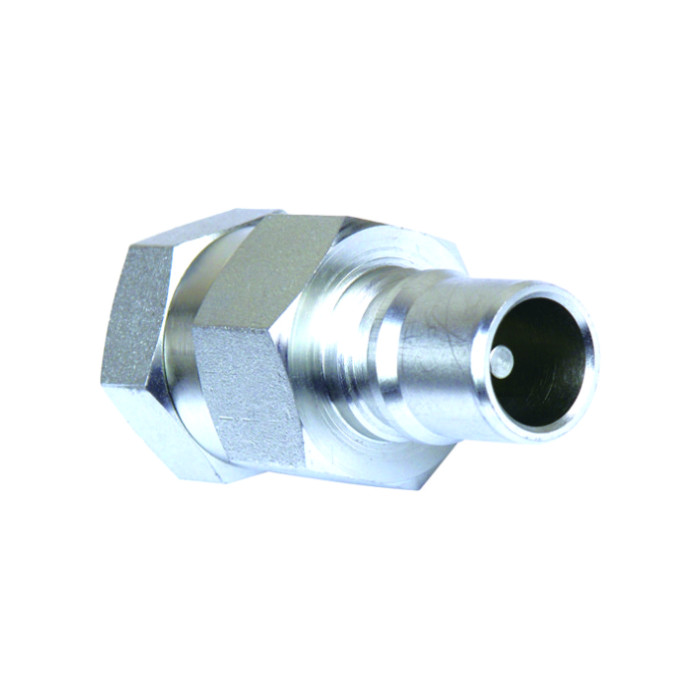

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	H1(mm)	T
HFSFP10034-3/4"	3/4''	80	S39	3/4" BSPP(NPTF)
HFSFP10010-1"	1''	93.5	S46	1" BSPP(NPTF)

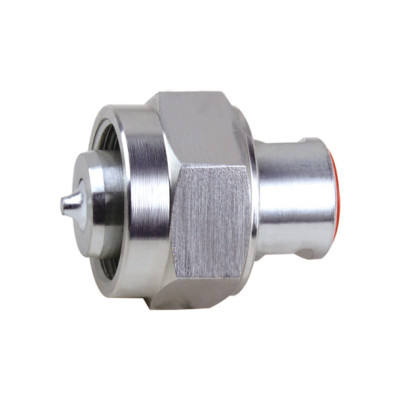

Accessories

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
12	3/4''	200	200	200	800	800	800	/
16	1''	150	150	150	600	600	600	/

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Internal Valve:	Steel/Brass
Specifications:	Series Interchange:	ARGENTINA COMEL E SERIES
	Valve Type:	Poppet
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
