EH26 Series | RECTUS Pneumatic Quick Coupling (Brass)
| Categories | Pneumatic Quick Couplers |
|---|---|
| Interchange | RECTUS 26KA SERIES |
| Interchange | RECTUS 25KA SERIES |
| Interchange | TEMA 1600 SERIES |
| Interchange | CEJN 320 SERIES |
| Interchange | DIXON CJ SERIES |
| Update Time | Sep 12,2025 |
Detail Information
26 Series
Pneumatic Quick Coupling (Brass)
This EH series is interchangeable with RECTUS 26KA SERIES, RECTUS 25KA SERIES, TEMA 1600 SERIES, CEJN 320 SERIES, and DIXON CJ SERIES. Brass Product. This sleeve-type coupler accepts industrial interchange. It is widely used to connect air lines and low-pressure fluids. Its compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple. The sliding spring-loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple. Common applications include: compressed air, water, grease, paint, limited vacuum, and limited gases.

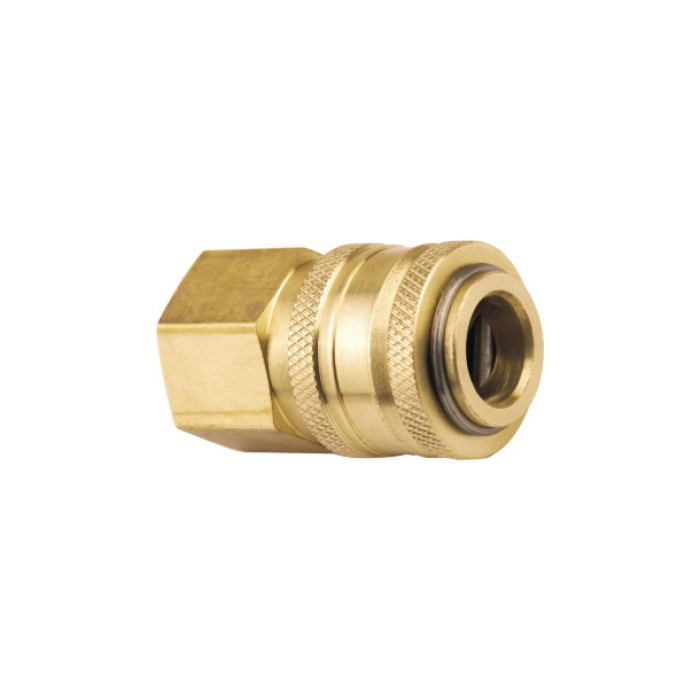

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFBFC2614-1/4"BSP | 1/4'' | 41 | 25 | S22 | 1/4"BSPP |
| HFBFC2614-3/8"BSP | 1/4'' | 41 | 25 | S22 | 3/8"BSPP |
HFBFC2614-1/2"BSP | 1/4'' | 42.5 | 25 | S24 | 1/2"BSPP |
HFBMC2614-1/4''BSP | 1/4'' | 40 | 25 | S22 | 1/4"BSPP |
HFBMC2614-3/8"BSP | 1/4'' | 41 | 25 | S22 | 3/8"BSPP |
HFBMC2614-1/2"BSP | 1/4'' | 43 | 25 | S22 | 1/2"BSPP |
| Other Threads/Fitting Ends Are Available Upon Request | ||||||

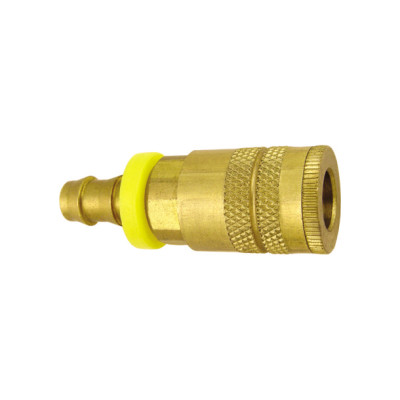

| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L1(mm) | A(mm) |
| HFBHC2614-6MM | 1/4'' | 58.5 | 25 | S22 | 25 | 6 |
| HFBHC2614-8MM | 1/4'' | 58.5 | 25 | S22 | 25 | 8 |
HFBHC2614-9MM | 1/4'' | 58.5 | 25 | S22 | 25 | 9 |
HFBHC2614-10MM | 1/4'' | 58.5 | 25 | S22 | 25 | 10 |
HFBHC2614-13MM | 1/4'' | 58.5 | 25 | S22 | 25 | 13 |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFBFP2614-1/4"BSP | 1/4'' | 33 | S17 | 1/4"BSPP |
| HFBFP2614-3/8"BSP | 1/4'' | 33 | S19 | 3/8"BSPP |
HFBFP2614-1/2"BSP | 1/4'' | 35 | S27 | 1/2"BSPP |
HFBMP2614-1/4"BSP | 1/4'' | 33 | S17 | 1/4"BSPP |
HFBMP2614-3/8"BSP | 1/4'' | 33 | S19 | 3/8"BSPP |
HFBMP2614-1/2"BSP | 1/4'' | 38 | S24 | 1/2"BSPP |
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | L1(mm) | A(mm) | B(mm) |
| HFBHP2614-6MM | 1/4'' | 55 | 25 | 6 | 15 |
| HFBHP2614-8MM | 1/4'' | 55 | 25 | 8 | 15 |
HFBHP2614-8MM | 1/4'' | 55 | 25 | 9 | 15 |
HFBHP2614-10MM | 1/4'' | 55 | 25 | 10 | 15 |
HFBHP2614-13MM | 1/4'' | 55 | 25 | 13 | 15 |
