Home / All / Pneumatic Quick Couplers / EH29 Series | Pneumatic Quick Coupling, Instant Air Couplings, Adaptors, Swivel Adaptors (Steel)
EH29 Series | Pneumatic Quick Coupling, Instant Air Couplings, Adaptors, Swivel Adaptors (Steel)
| Categories | Pneumatic Quick Couplers |
|---|---|
| Update Time | Sep 12,2025 |
Detail Information
29 Series

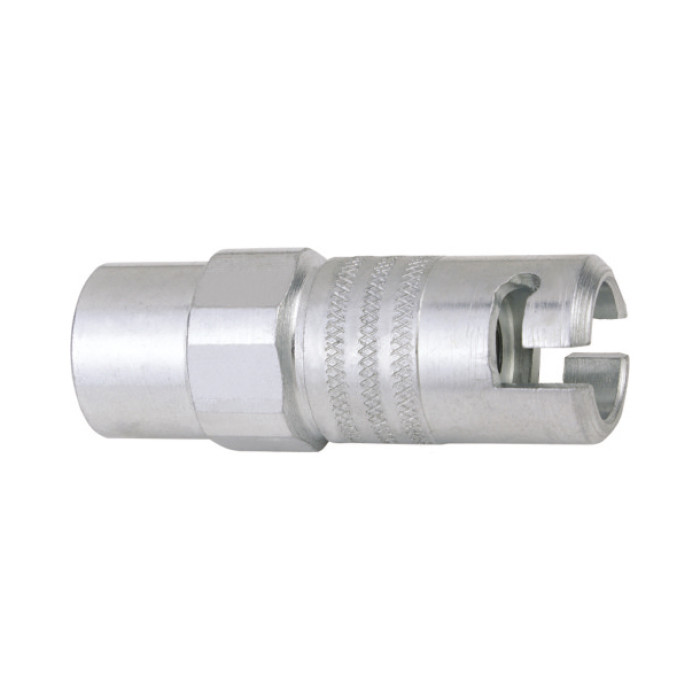

Pneumatic Quick Coupling (Steel Zinc Plated) Instant Air Couplings & Adaptors, Swivel Adaptors
Pneumatic Quick Coupling, Instant Air Couplings, Adaptors, Swivel Adaptors (Steel). This coupling system has a safety lock. To disconnect, the plug must first be twisted out from the coupling before it can be unlocked. This prevents unintentional disconnection.

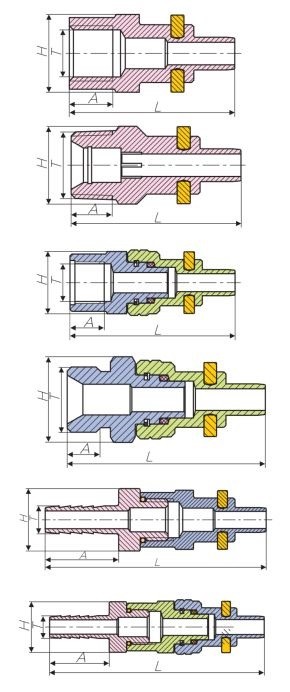

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Size | L(mm) | A(mm) | H(mm) | T |
| PFSFC2914 | 1/4'' | 04SF | 57 | 11 | S19 | 1/4"BSPP |
| PFSFC2938 | 3/8'' | 06SF | 57 | 12 | S21 | 3/8"BSPP |
PFSMC2914 | 1/4'' | 04SM | 57 | 11 | S19 | 1/4"BSPT |
PFSMC2938 | 3/8'' | 06SM | 57 | 12 | S19 | 3/8"BSPT |
PFSHC2914 | 1/4'' | 04SH | 91 | 25 | S21 | 1/4H |
PFSHC29516 | / | 05SH | 95 | 29 | S21 | 5/16H |
PFSHC2938 | 3/8'' | 06SH | 95 | 29 | S21 | 3/8H |

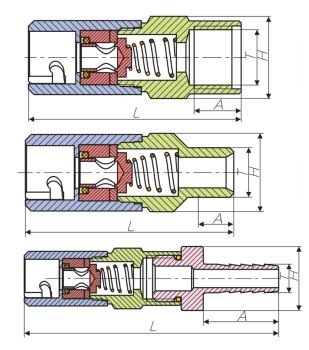

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Size | L(mm) | A(mm) | H(mm) | T |
| PFSFP2914 | 1/4'' | 04PF | 41.5 | 11 | S19 | 1/4"BSPP |
| PFSFP2938 | 3/8'' | 06PF | 42.5 | 12 | S21 | 3/8"BSPP |
PFSMP2914 | 1/4'' | 04PM | 41.5 | 11 | S15.2 | 1/4"BSPT |
PFSMP2938 | 3/8'' | 06PM | 42.5 | 12 | S19 | 3/8"BSPT |
PFSHP2914 | 1/4'' | 04PH | 75 | 25 | S21 | 1/4H |
PFSHP29516 | / | 05PH | 79 | 29 | S21 | 5/16H |
PFSHP2938 | 3/8'' | 06PH | 79 | 29 | S21 | 3/8H |
| | ||||||
| Art. No. | Body Size (inch) | Size | L(mm) | A(mm) | H(mm) | T |
| PFSFSP2914 | 1/4'' | 04SPF | 51.3 | 11 | S19 | 1/4"BSPP |
| PFSFSP2938 | 3/8'' | 06SPF | 52.3 | 12 | S21 | 3/8"BSPP |
PFSMSP2914 | 1/4'' | 04SPM | 46.8 | 6.5 | S15 | 1/4"BSPP |
PFSMSP2938 | 3/8'' | 06SPM | 48.8 | 8.5 | S19 | 3/8"BSPP |
PFSHSP2914 | 1/4'' | 04SPH | 83.8 | 25 | S21 | 1/4H |
PFSHSP29516 | / | 05SPH | 89.3 | 29 | S21 | 5/16H |
PFSHSP2938 | 3/8'' | 06SPH | 89.3 | 29 | S21 | 3/8H |
