75 Series | ANV AGRI ISO 7241 A Quick Couplings With Poppet Valve (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | HANSEN HA15000 SERIES |
| Interchange | PARKER 6600 SERIES |
| Interchange | EATON AEROQUIP 5600 SERIES |
| Interchange | DNP PAV1 SERIES |
| Interchange | STUCCHI BIR SERIES |
| Interchange | STUCCHI IRV SERIES |
| Interchange | DIXON K SERIES |
| Interchange | VOSWINKEL IA SERIES |
| Interchange | SAFEWAY S56 SERIES |
| Interchange | FASTER ANV SERIES |
| Interchange | FASTER AGRI SERIES |
| Update Time | Sep 12,2025 |
Detail Information
75 Series
Hydraulic Quick Coupling (Steel)
ISO-7241-A, Poppet Valve
This EH series is interchangeable with HANSEN HA15000 SERIES, PARKER 6600 SERIES, EATON AEROQUIP 5600 SERIES, FASTER ANV SERIES, DNP PAV1 SERIES, STUCCHI BIR SERIES, STUCCHI IRV SERIES, DIXON K SERIES, VOSWINKEL IA SERIES, and SAFEWAY S56 SERIES. The 75 series is a poppet-type quick coupler compatible with ISO 7241-1 "A" standards. Constructed from carbon steel with zinc plating, it ensures global interchangeability and is available in sizes from ¼'' to 2''. Due to its versatility, the 75 series is widely used in hydraulic systems, particularly in agricultural and industrial applications.

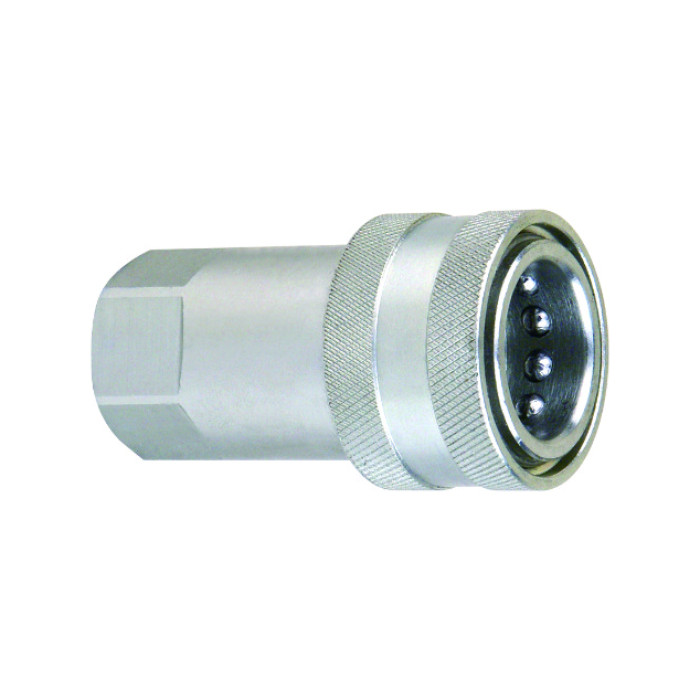

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC7514-1/4" | 1/4'' | 47 | 25 | S19 | 1/4"BSPP(NPT) |
| HFSFC7538-3/8" | 3/8'' | 57 | 31 | S22 | 3/8"BSPP(NPT) |
HFSFC7512-1/2" | 1/2'' | 66 | 38 | S27 | 1/2"BSPP(NPT) |
HFSFC7534-3/4" | 3/4'' | 82.5 | 48 | S34 | 3/4"BSPP(NPT) |
HFSFC7510-1" | 1'' | 97 | 54 | S41 | 1"BSPP(NPT) |
HFSFC75114-1-1/4" | 1-1/4'' | 117 | 70 | S50 | 1-1/4"BSPP(NPT) |
HFSFC75112-1-1/2" | 1-1/2'' | 133.5 | 84 | S60 | 1-1/2"BSPP(NPT) |
HFSFC7520-2" | 2'' | 160 | 100 | S75 | 2"BSPP(NPT) |

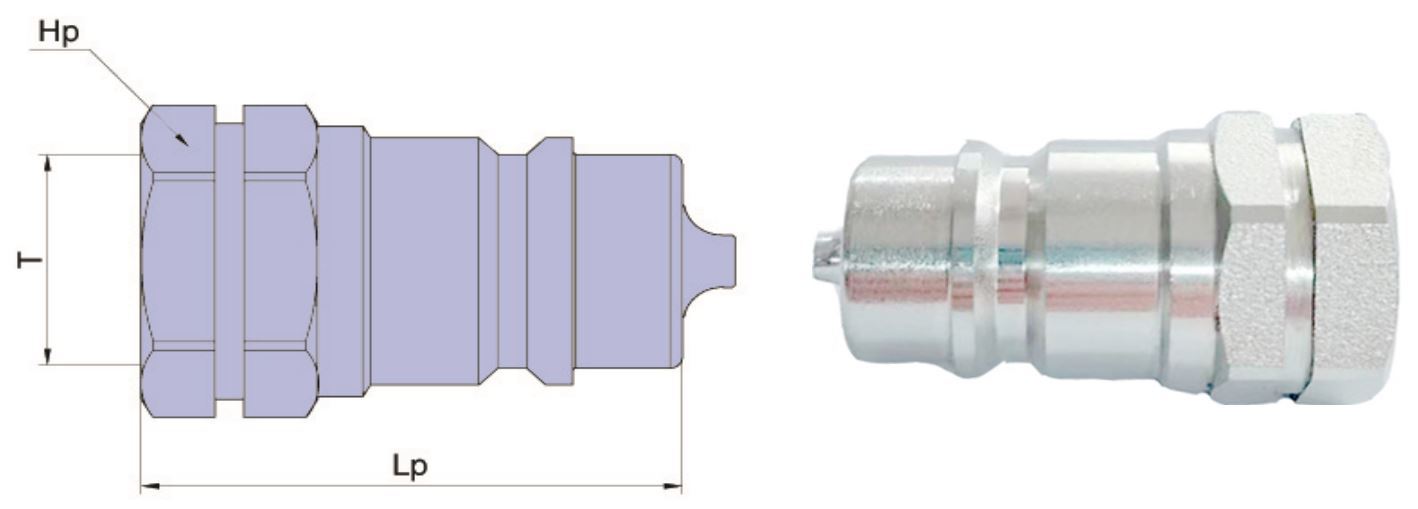

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP7514-1/4" | 1/4'' | 35 | S19 | 1/4"BSPP(NPT) |
| HFSFP7538-3/8" | 3/8'' | 39 | S22 | 3/8"BSPP(NPT) |
HFSFP7512-1/2" | 1/2'' | 46 | S27 | 1/2"BSPP(NPT) |
HFSFP7534-3/4" | 3/4'' | 55 | S34 | 3/4"BSPP(NPT) |
HFSFP7510-1" | 1'' | 63 | S41 | 1"BSPP(NPT) |
HFSFP75114-1-1/4" | 1-1/4'' | 75 | S50 | 1-1/4"BSPP(NPT) |
HFSFP75112-1-1/2" | 1-1/2'' | 83 | S60 | 1-1/2"BSPP(NPT) |
HFSFP7520-2" | 2'' | 100 | S75 | 2"BSPP(NPT) |
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-A-1/4-P-P | ISO-A-1/4-C-P | PVC |
| 06 | 10 | ISO-A-3/8-P-P | ISO-A-3/8-C-P | PVC |
08 | 12.5 | ISO-A-1/2-P-P | ISO-A-1/2-C-P | PVC |
12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
| 16 | 25 | ISO-A-1-P-P | ISO-A-1-C-P | PVC |
