76 Series | CPV CNV PV Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)

76 Series | CPV CNV PV Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)
76 Series | CPV CNV PV Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)76 Series | CPV CNV PV Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)76 Series | CPV CNV PV Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)76 Series | CPV CNV PV Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)
CategoriesPoppet (Interchange) Couplers
InterchangeSTUCCHI I-IP SERIES
InterchangeFASTER CPV SERIES
InterchangeFASTER CNV SERIES
InterchangePARKER 4200 SERIES
InterchangePIONEER 2000 SERIES
InterchangeDNP PPV1 SERIES
InterchangeDIXON AG SERIES
InterchangeVOSWINKEL HP SERIES
InterchangeSAFEWAY S40 SERIES
InterchangeFASTER PV SERIES
InterchangeFASTER NV SERIES
Update TimeSep 12,2025
Contact Now
Favorites
Detail Information
Items
Specs
Applications

76 Series

Hydraulic Push-Pull Coupling (Steel)

ISO-7241-A, Poppet Valve, ISO8434-1

This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PARKER 4200 SERIES, PIONEER 2000 SERIES, DNP PPV1 SERIES, DIXON AG SERIES, VOSWINKEL HP SERIES, SAFEWAY S40 SERIES, FASTER PV SERIES, and FASTER NV SERIES. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.

Female


Hydraulic Push-Pull Coupling female
L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
Li(mm)
B(mm)
Hs(mm)
T
HFSMC7612-M14X1.5-08L
1/2''
72
10
8
S27
M14X1.5
HFSMC7612-M16X1.5-10L
1/2''
73
11
10
S27
M16X1.5
HFSMC7612-M18X1.5-12L
1/2''
73
11
12
S27
M18X1.5
HFSMC7612-M22X1.5-15L
1/2''
74
12
15
S27
M22X1.5
HFSMC7612-M26X1.5-18L
1/2''
74
12
18
S27
M26X1.5
S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
Li(mm)
B(mm)
Hs(mm)
T
HFSMC7612-M14X1.5-06S
1/2''
74
12
6
S27
M14X1.5
HFSMC7612-M16X1.5-08S
1/2''
74
12
8
S27
M16X1.5
HFSMC7612-M18X1.5-10S
1/2''
74
12
10
S27
M18X1.5
HFSMC7612-M20X1.5-12S
1/2''
74
12
12
S27
M20X1.5
HFSMC7612-M24X1.5-16S
1/2''
76
14
16
S27
M24X1.5
Art. No.
Body Size (inch)
Ls(mm)
Li(mm)
B(mm)
Hs(mm)
T
HFSFC7612-1/2"
1/2''
70
12
10
S27
1/2''BSPP (NPT)
HFSFC7612-3/4"UNF
1/2''
70
12
10
S27
3/4''UNF
HFSFC7612-3/8"UNF
1/2''
70
12
10
S27
3/8''UNF

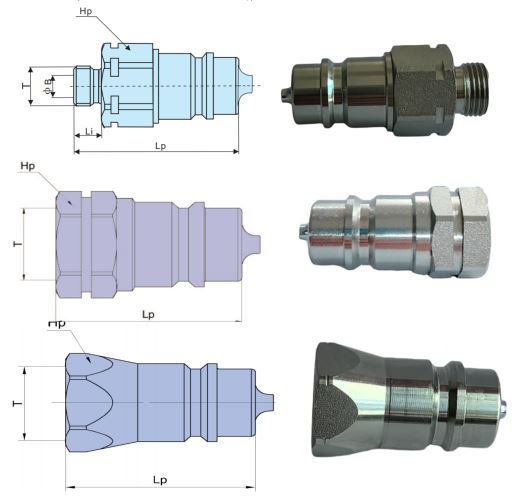

Male

Hydraulic Push-Pull Coupling male
  L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
Li(mm)
B(mm)
Hp(mm)
T
HFSMP7612-M14X1.5-08L
1/2''
57
10
8
S27
M14X1.5
HFSMP7612-M16X1.5-10L
1/2''
58
11
10
S27
M16X1.5
HFSMP7612-M18X1.5-12L
1/2''
58
11
12
S27
M18X1.5
HFSMP7612-M22X1.5-15L
1/2''
59
12
15
S27
M22X1.5
HFSMP7612-M26X1.5-18L
1/2''
59
12
18
S27
M26X1.5
  S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
Li(mm)
B(mm)
Hp(mm)
T
HFSMP7612-M14X1.5-06S
1/2''
74
12
6
S27
M14X1.5
HFSMP7612-M16X1.5-08S
1/2''
74
12
8
S27
M16X1.5
HFSMP7612-M18X1.5-10S
1/2''
74
12
10
S27
M18X1.5
HFSMP7612-M20X1.5-12S
1/2''
74
12
12
S27
M20X1.5
HFSMP7612-M24X1.5-16S
1/2''
76
14
16
S27
M24X1.5
Art. No.
Body Size (inch)
Lp(mm)
Li(mm)
B(mm)
Hp(mm)
T
HFSFP7512-1/2"
1/2''
44
12
10
S27
1/2''BSPP (NPT)
HFSFP7512
-3/4" UNF
1/2''
44
12
10
S27
3/4''UNF
HFSFP7512
-3/8"UNF
1/2''
44
12
10
S27
3/8''UNF
HFSFP6612-1/2"
1/2''
44
12
10
S27
1/2''BSPP (NPT)
HFSFP6612
-3/4" UNF
1/2''
44
12
10
S27
3/4''UNF
HFSFP6612
-3/8"UNF
1/2''
44
12
10
S27
3/8''UNF

Accessories


Technical Specifications

Dash Size
Body Size (Inch)
Max. Work PressureMale (bar)
Max. Work PressureFemale (bar)
Max. Work PressureCoupled (bar)
Min. Burst
Pressure
Male
(bar)
Min. Burst
Pressure
Female
(bar)
Min. Burst
Pressure
Coupled
(bar)
Spillage
(ml)
08
1/2''
250
250
250
1000
1000
1000
1.8
Material:
Steel
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
MATE 500 (CRIII)
Specifications:
Series Interchange:
PARKER 4200 SERIES, PIONEER 2000 SERIES, SAFEWAY S40 SERIES, FASTER CPV SERIES, FASTER CNV SERIES, STUCCHI I-IP SERIES, DNP PPV1 SERIES, VOSWINKEL HP SERIES, DIXON AG SERIES, FASTER PV SERIES, and FASTER NV SERIES
Valve Type:
Poppet
Connection:
Push to Connect
Disconnection:
Pull to Disconnect
Connection Under Pressure:
Not Allowed

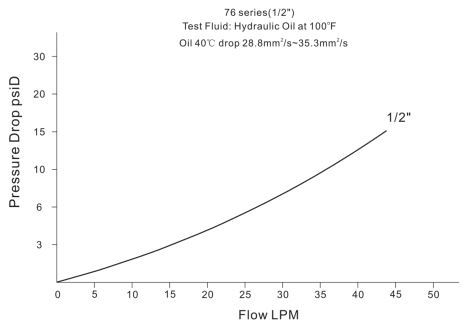

Pressure Drop

Pressure Drop

Applications

Hydraulic Push-Pull Coupling for Tractor-Towed Beach Cleaner
Tractor-Towed Beach Cleaner
