72 Series | ISO 7241 A Quick Couplings Free Flow (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | DNP PAO1 SERIES |
| Update Time | Sep 12,2025 |
Detail Information
72 Series
Hydraulic Quick Coupling (STEEL)
ISO-7241-A, UNVALVED

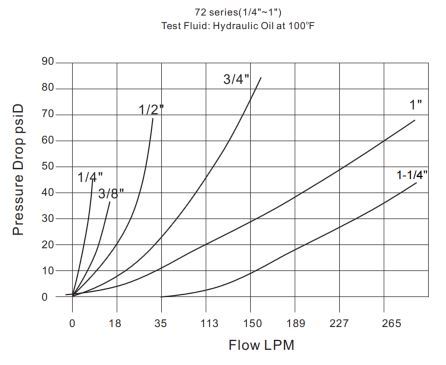

This EH series is interchangeable with the DNP PAO1 SERIES. Steel Product. As the free-flow version of the 75 series, 72 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss.

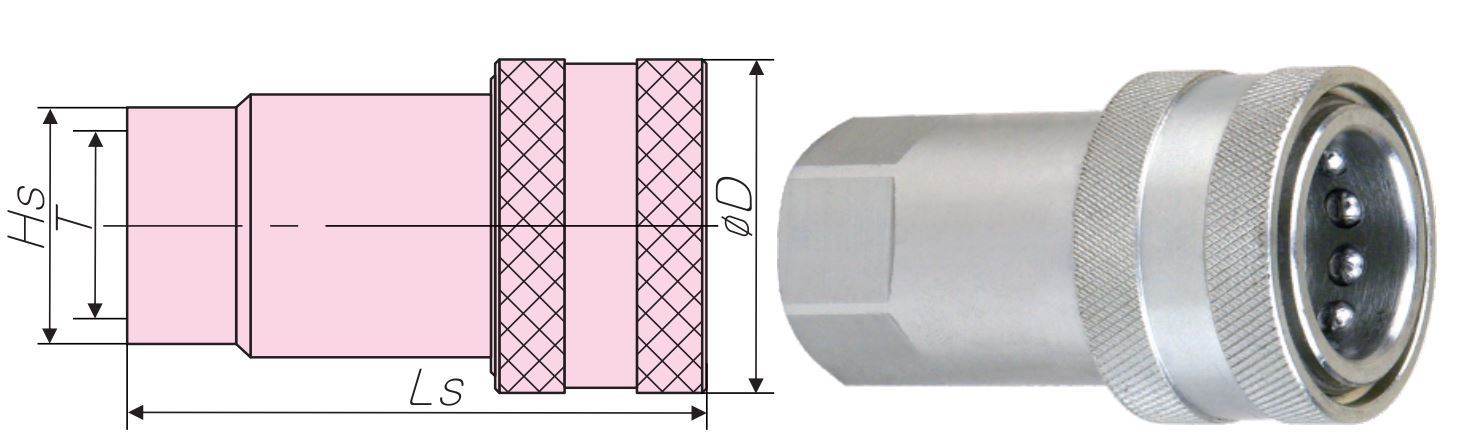

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC7214-1/4" | 1/4'' | 47 | 25 | S19 | 1/4"BSPP(NPT) |
| HFSFC7238-3/8" | 3/8'' | 57 | 31 | S22 | 3/8"BSPP(NPT) |
HFSFC7212-1/2" | 1/2'' | 66 | 38 | S27 | 1/2"BSPP(NPT) |
HFSFC7234-3/4" | 3/4'' | 82.5 | 48 | S34 | 3/4"BSPP(NPT) |
HFSFC7210-1" | 1'' | 97 | 54 | S41 | 1"BSPP(NPT) |
HFSFC72114-1-1/4" | 1-1/4'' | 117 | 70 | S50 | 1-1/4"BSPP(NPT) |

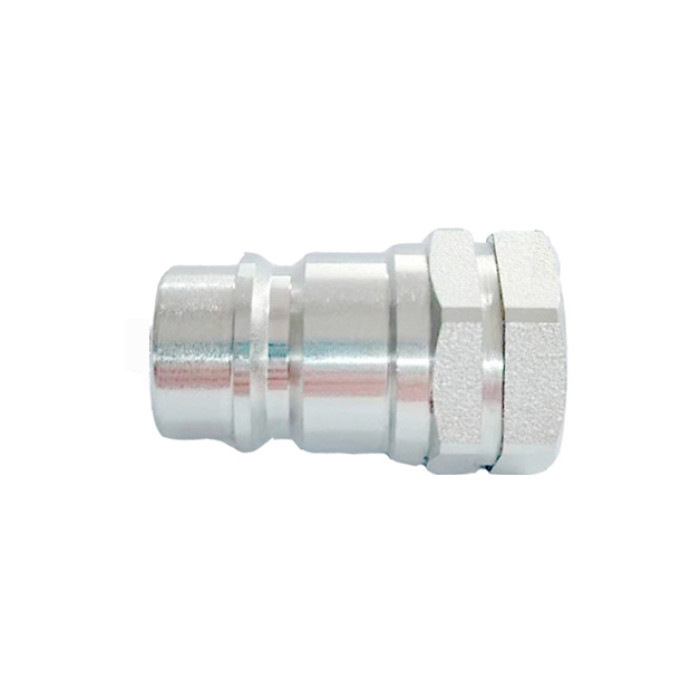

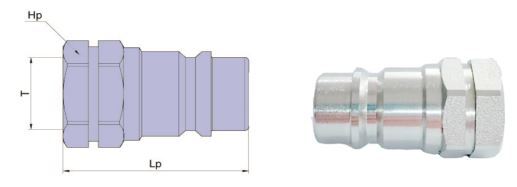

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP7214-1/4" | 1/4'' | 35 | S19 | 1/4"BSPP(NPT) |
| HFSFP7238-3/8" | 3/8'' | 39 | S22 | 3/8"BSPP(NPT) |
HFSFP7212-1/2" | 1/2'' | 46 | S27 | 1/2"BSPP(NPT) |
HFSFP7234-3/4" | 3/4'' | 55 | S34 | 3/4"BSPP(NPT) |
HFSFP7210-1" | 1'' | 63 | S41 | 1"BSPP(NPT) |
HFSFP72114-1-1/4" | 1-1/4'' | 75 | S50 | 1-1/4"BSPP(NPT) |
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-A-1/4-P-P | ISO-A-1/4-C-P | PVC |
| 06 | 10 | ISO-A-3/8-P-P | ISO-A-3/8-C-P | PVC |
08 | 12.5 | ISO-A-1/2-P-P | ISO-A-1/2-C-P | PVC |
12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
| 16 | 25 | ISO-A-1-P-P | ISO-A-1-C-P | PVC |
