87 Series | CVV ISO 14541 European Screw Quick Coupler (Steel)

87 Series | CVV ISO 14541 European Screw Quick Coupler (Steel)
87 Series | CVV ISO 14541 European Screw Quick Coupler (Steel)87 Series | CVV ISO 14541 European Screw Quick Coupler (Steel)87 Series | CVV ISO 14541 European Screw Quick Coupler (Steel)
CategoriesThreaded Poppet Couplers
InterchangeSTUCCHI VD SERIES
InterchangeFASTER CVV SERIES
InterchangeVOSWINKEL HS SERIES
InterchangeDNP PVV3 SERIES
InterchangeDIXON CVV SERIES
InterchangeGROMELLE 626-A SERIES
Update TimeSep 12,2025
Contact Now
Favorites
Detail Information
Items
Specs

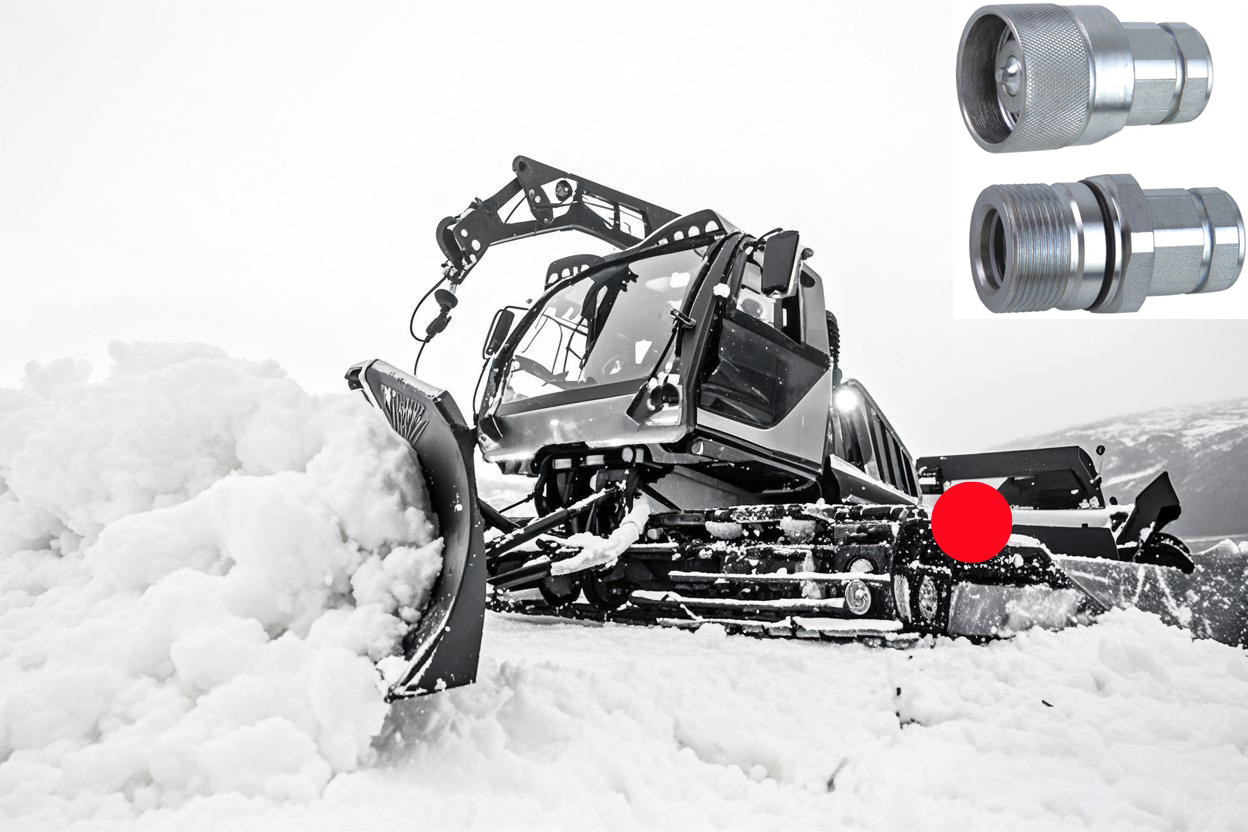

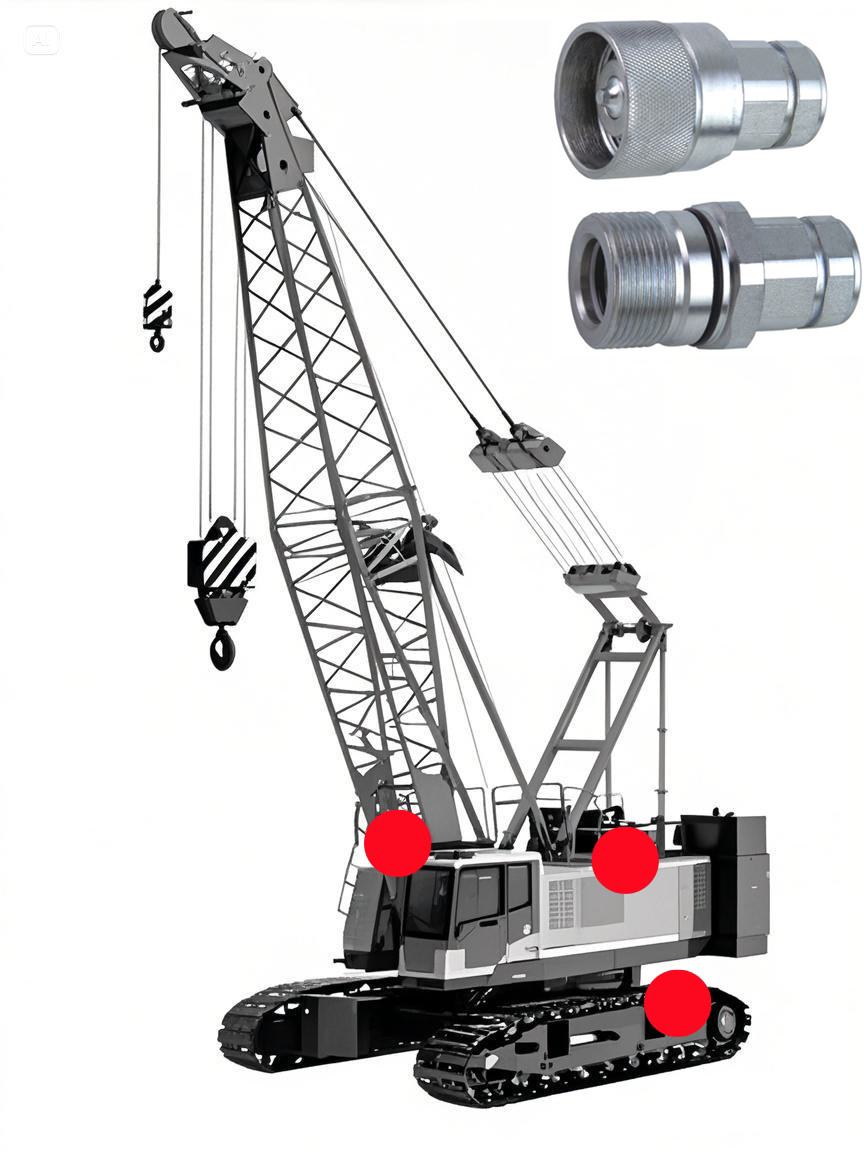

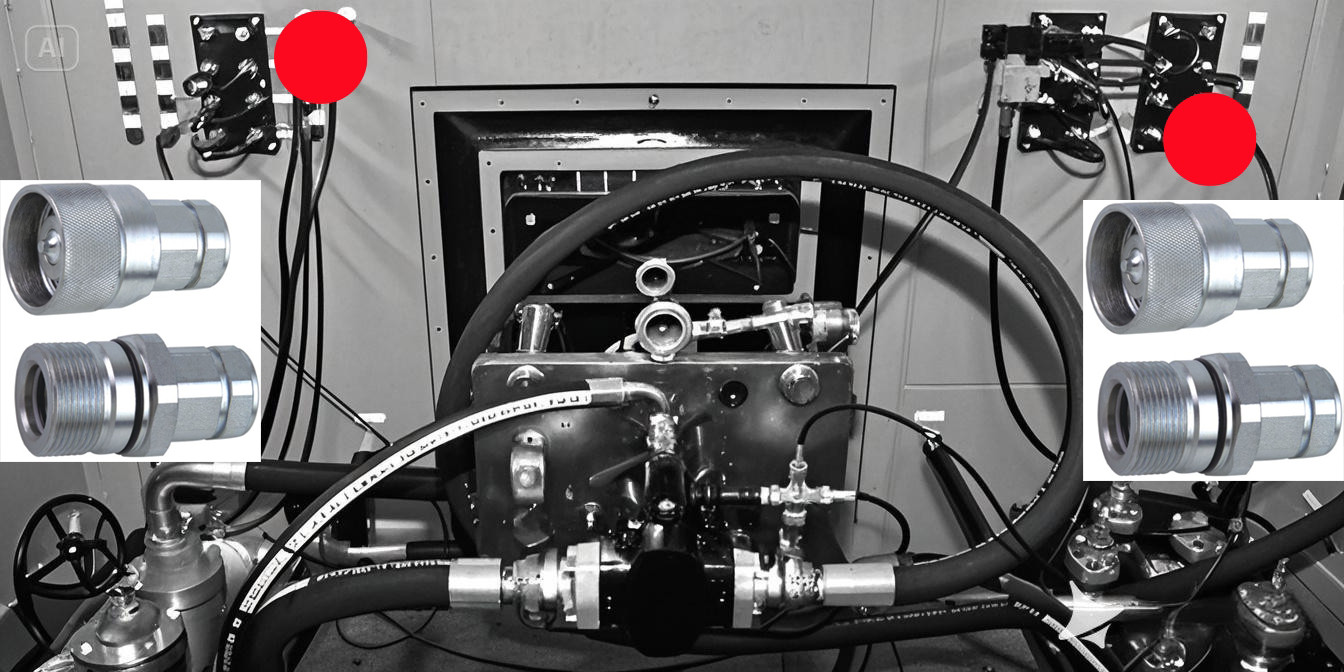

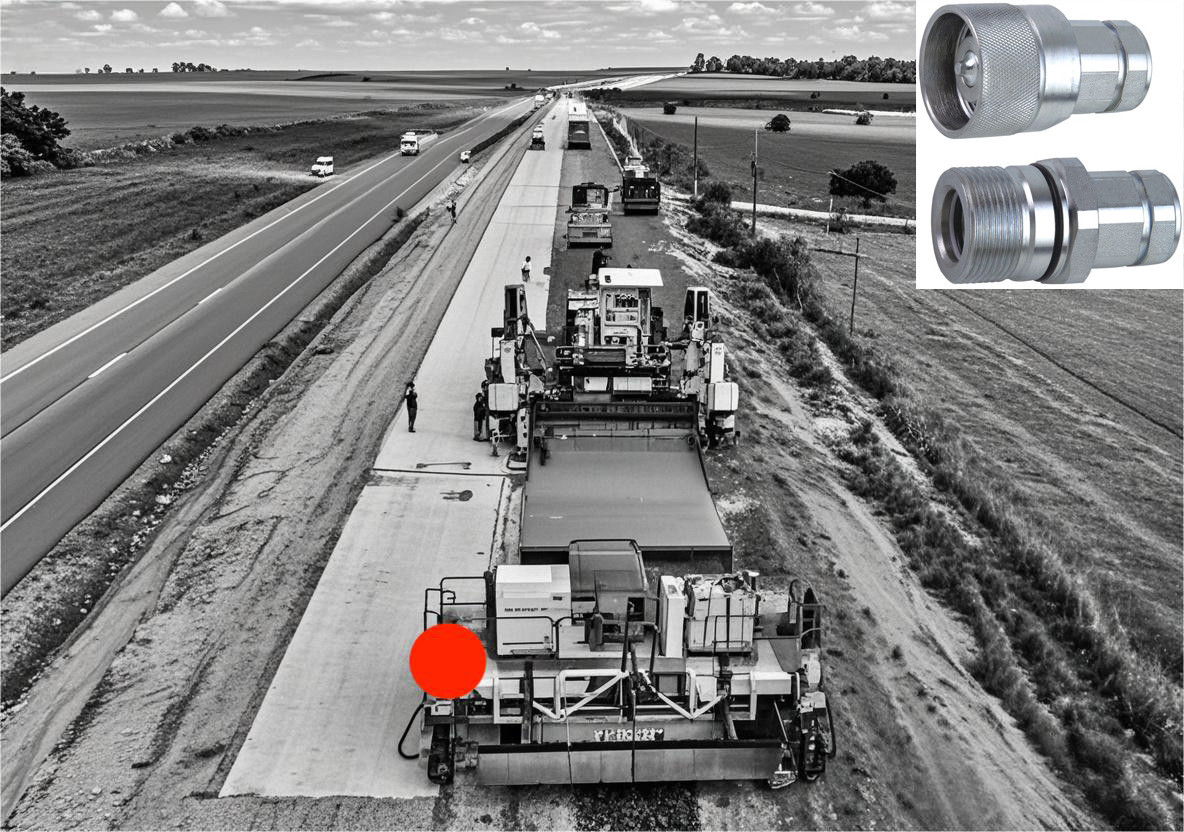

Applications

87 Series

High Pressure Screw-To-Connect Coupling (Steel)

Poppet Valve, ISO-14541

This EH series is interchangeable with STUCCHI VD SERIES, FASTER CVV SERIES, VOSWINKEL HS SERIES, DNP PVV3 SERIES, DIXON CVV SERIES, and GROMELLE 626-A SERIES. General-purpose screw-on couplings designed for reliable performance under residual pressure conditions. Engineered to withstand high-pressure impulses and flow surges while maintaining ISO 14541 interchangeability.

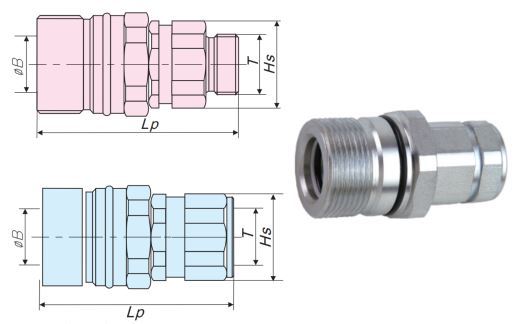

Female


High Pressure Screw-To-Connect Coupling
L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
B(mm)
Hs(mm)
T
HFSMC8714-M12X1.5-6L
1/4''
65.5
13
S19
M12X1.5 MALE 6L
HFSMC8714-M14X1.5-8L
1/4''
65.5
13
S19
M14X1.5 MALE 8L
HFSMC8714-M14X1.5-8L
1/4''
81.5
13
S19
M14X1.5 MALE
Bulkhead short 8L
HFSMC8738-M16X1.5-10L
3/8''
66.5
17.5
S24
M16X1.5 MALE 10L
HFSMC8712-M16X1.5-10L
1/2''
66.5
22.1
S30
M16X1.5 MALE 10L
HFSMC8712-M18X1.5-12L
1/2''
66.5
22.1
S30
M18X1.5 MALE 12L
HFSMC8712-M22X1.5-15L
1/2''
67.5
22.1
S30
M22X1.5 MALE 15L
HFSMC8712-M16X1.5-10L
1/2''
90
22.1
S30
M16X1.5 MALE
Bulkhead 10L
HFSMC8712-M18X1.5-12L
1/2''
90
22.1
S30
M18X1.5 MALE
Bulkhead 12L
HFSMC8712-M22X1.5-15L
1/2''
90
22.1
S30
M22X1.5 MALE
Bulkhead 15L
HFSMC8712-M16X1.5-10L
1/2''
81
22.1
S30
M16X1.5 MALE
Bulkhead Short 10L
HFSMC8712-M18X1.5-12L
1/2''
81
22.1
S30
M18X1.5 MALE
Bulkhead Short 12L
HFSMC8712-M22X1.5-15L
1/2''
81
22.1
S30
M22X1.5 MALE
Bulkhead Short 15L
HFSMC8710-M30x2-22L
1''
93
35
S41
M30X2 MALE 22L
HFSMC8710-M36X2-28L
1''
93
35
S41
M36X2 MALE 28L
HFSMC8710-M30X2-22L
1''
115
35
S41
M30X2 MALE
Bulkhead 22L
HFSMC8710-M36X2-28L
1''
115
35
S41
M36X2 MALE
Bulkhead 28L
S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
B(mm)
Hs(mm)
T
HFSMC8712-M20X1.5-12S
1/2''
67.5
22.1
S30
M20X1.5 MALE 12S
HFSMC8712-M22X1.5-14S
1/2''
67.5
22.1
S30
M22X1.5 MALE 14S
HFSMC8712-M24X1.5-16S
1/2''
69.5
22.1
S30
M24X1.5 MALE 16S
HFSMC8712-M20X1.5-12S
1/2''
90
22.1
S30
M20X1.5 MALE
Bulkhead 12S
HFSMC8712-M22X1.5-14S
1/2''
90
22.1
S30
M22X1.5 MALE
Bulkhead 14S
HFSMC8712-M24X1.5-16S
1/2''
90
22.1
S30
M24X1.5 MALE
Bulkhead 16S
HFSMC8712-M20X1.5-12S
1/2''
81
22.1
S30
M20X1.5 MALE
Bulkhead short 12S
HFSMC8712-M22X1.5-14S
1/2''
81
22.1
S30
M22X1.5 MALE
Bulkhead short 14S
HFSMC8712-M24X1.5-16S
1/2''
81
22.1
S30
M24X1.5 MALE
Bulkhead short 16S
HFSMC8710-M30x2-20S
1''
95
35
S41
M30X2 MALE 20S
HFSMC8710-M36X2-25S
1''
97
35
S41
M36X2 MALE 25S
HFSMC8710-M42X2-30S
1''
99
35
S41
M42X2 MALE 30S
HFSMC8710-M30x2-20S
1''
119
35
S41
M30X2 MALE
Bulkhead 20S
HFSMC8710-M36X2-25S
1''
119
35
S41
M36X2 MALE
Bulkhead 25S
HFSMC8710--M42X2-30S
1''
121
35
S41
M42X2 MALE
Bulkhead 30S
Art. No.
Body Size (inch)
Lp(mm)
B(mm)
Hs(mm)
T
HFSFC8714-1/4"
1/4''
69.5
13
S19
1/4" BSPP FEMALE
HFSFC8738-3/8"
3/8''
69.5
17.5
S24
3/8" BSPP FEMALE
HFSFC8712-1/2"
1/2''
71.5
22.1
S30
1/2" BSPP FEMALE
HFSFC8734-3/4"
3/4''
85
28.1
S36
3/4" BSPP FEMALE
HFSFC8710-1"
1''
100
35
S41
1" BSPP FEMALE

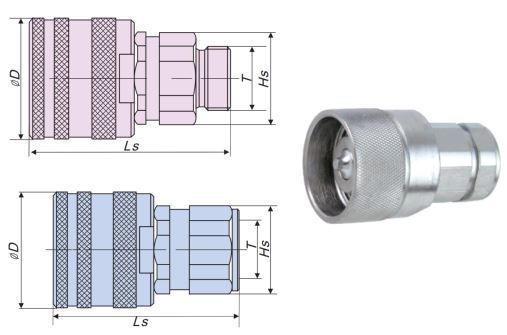

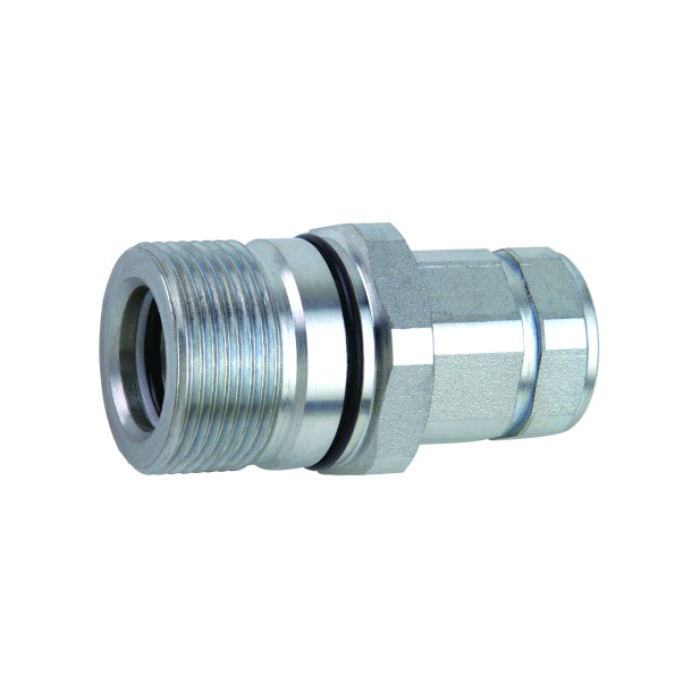

Male

High Pressure Screw-To-Connect Coupling Male
L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
D(mm)
Hs(mm)
T
HFSMP8714-M12X1.5-6L
1/4''
58
30
S19
M12X1.5 MALE 6L
HFSMP8714-M14X1.5-8L
1/4''
58
30
S19
M14X1.5 MALE 8L
HFSMP8714-M14X1.5-8L
1/4''
74
30
S19
M14X1.5 MALE
Bulkhead short 8L
HFSMP8738-M16X1.5-10L
3/8''
61
35
S24
M16X1.5 MALE 10L
HFSMP8712-M16X1.5-10L
1/2''
62
42
S30
M16X1.5 MALE 10L
HFSMP8712-M18X1.5-12L
1/2''
62
42
S30
M18X1.5 MALE 12L
HFSMP8712-M22X1.5-15L
1/2''
63
42
S30
M22X1.5 MALE 15L
HFSMP8712-M16X1.5-10L
1/2''
85
42
S30
M16X1.5 MALE
Bulkhead 10L
HFSMP8712-M18X1.5-12L
1/2''
85
42
S30
M18X1.5 MALE
Bulkhead 12L
HFSMP8712-M22X1.5-15L
1/2''
85
42
S30
M22X1.5 MALE
Bulkhead 15L
HFSMP8712-M16X1.5-10L
1/2''
76
42
S30
M16X1.5 MALE
Bulkhead Short 10L
HFSMP8712-M18X1.5-12L
1/2''
76
42
S30
M18X1.5 MALE
Bulkhead Short 12L
HFSMP8712-M22X1.5-15L
1/2''
76
42
S30
M22X1.5 MALE
Bulkhead Short 15L
HFSMP8710-M30x2-22L
1''
80
55
S41
M30X2 MALE 22L
HFSMP8710-M36X2-28L
1''
80
55
S41
M36X2 MALE 28L
HFSMP8710-M30X2-34-22L
1''
102
55
S41
M30X2 MALE
Bulkhead 22L
HFSMP8710-M36X2-34-28L
1''
102
55
S41
M36X2 MALE
Bulkhead 28L
S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
D(mm)
Hs(mm)
T
HFSMP8712-M20X1.5-12S
1/2''
63
42
S30
M20X1.5 MALE 12S
HFSMP8712-M22X1.5-14S
1/2''
65
42
S30
M22X1.5 MALE 14S
HFSMP8712-M24X1.5-16S
1/2''
65
42
S30
M24X1.5 MALE 16S
HFSMP8712-M20X1.5-12S
1/2''
85
42
S30
M20X1.5 MALE
Bulkhead 12S
HFSMP8712-M22X1.5-14S
1/2''
85
42
S30
M22X1.5 MALE
Bulkhead 14S
HFSMP8712-M24X1.5-16S
1/2''
85
42
S30
M24X1.5 MALE
Bulkhead 16S
HFSMP8712-M20X1.5-12S
1/2''
76
42
S30
M20X1.5 MALE
Bulkhead short 12S
HFSMP8712-M22X1.5-14S
1/2''
76
42
S30
M22X1.5 MALE
Bulkhead short 14S
HFSMP8712-M24X1.5-16S
1/2''
76
42
S30
M24X1.5 MALE
Bulkhead short 16S
HFSMP8710-M30x2-20S
1''
82
55
S41
M30X2 MALE 20S
HFSMP8710-M36X2-25S
1''
84
55
S41
M36X2 MALE 25S
HFSMP8710-M42X2-30S
1''
86
55
S41
M42X2 MALE 30S
HFSMP8710-M30x2-38-
20S
1''
108
55
S41
M30X2 MALE
Bulkhead 20S
HFSMP8710-M36X2-38-
25S
1''
108
55
S41
M36X2 MALE
Bulkhead 25S
HFSMP8710--M42X2-40-
30S
1''
110
55
S41
M42X2 MALE
Bulkhead 30S
Art. No.
Body Size (inch)
Ls(mm)
D(mm)
Hs(mm)
T
HFSFP8714-1/4"
1/4''
62
30
S19
1/4" BSPP FEMALE
HFSFP8738-3/8"
3/8''
64
35
S24
3/8" BSPP FEMALE
HFSFP8712-1/2"
1/2''
67
42
S30
1/2" BSPP FEMALE
HFSFP8734-3/4"
3/4''
78
48
S48
3/4" BSPP FEMALE
HFSFP8710-1"
1''
87
55
S55
1" BSPP FEMALE

Accessories


Dash Size
ISO Size
Art. No.

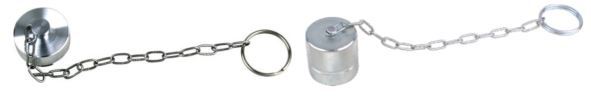

Dust Cap For Coupler
Art. No.
Dust Cap For Coupler
Material
04
6.3
ISO-14541-1/4-C-AL
ISO-14541-1/4-P-AL
Aluminum
06
10
ISO-14541-3/8-C-AL
ISO-14541-3/8-P-AL
Aluminum
08
12.5
ISO-14541-1/2-C-AL
ISO-14541-1/2-P-AL
Aluminum
12
20
ISO-14541-3/4-C-AL
ISO-14541-3/4-P-AL
Aluminum
16
25
ISO-14541-1-C-AL
ISO-14541-1-P-AL
Aluminum

Technical Specifications

Dash Size
Body Size (Inch)
Max. Work PressureMale (bar)
Max. Work PressureFemale (bar)
Max. Work PressureCoupled (bar)
Min. Burst
Pressure
Male
(bar)
Min. Burst
Pressure
Female
(bar)
Min. Burst
Pressure
Coupled
(bar)
Spillage
(ml)
04
1/4''
370
370
370
1500
1600
1900
0.8
06
3/8''
300
300
300
1200
1300
1700
1.3
08
1/2''
300
300
300
1200
1400
1400
1.8
12
3/4''
270
270
300
1100
1200
1300
8
16
1''
270
270
270
1100
1300
1400
13
Material:
Steel
Seals:
NBR, FKM, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, -20 °C to 200 °C, Customizable
Surface Treatment:
MATE 500 (CRIII)
Specifications:
Series Interchange:
FASTER CVV SERIES, STUCCHI VD SERIES, DNP PVV3 SERIES, VOSWINKEL HS SERIES, GROMELLE 626-A SERIES, DIXON CVV SERIES
Valve Type:
Poppet
Connection:
Screw to Connect
Disconnection:
Unscrew to Disconnect
Connection Under Pressure:
Allowed Residual

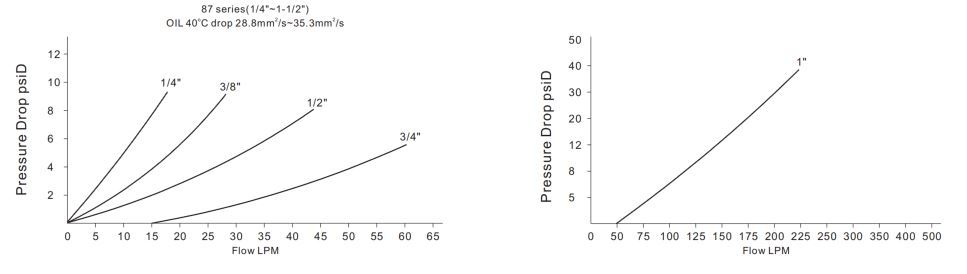

Pressure Drop

Pressure Drop
