99 Series | CVE Screw-To-Connect Wing Nut Couplers For Road Machines Applications (Steel)
| Categories | Threaded Poppet Couplers |
|---|---|
| Interchange | DNP PVE1 SERIES |
| Interchange | FASTER CVE SERIES |
| Interchange | VOSWINKEL HT SERIES |
| Interchange | INTEVA VCR SERIES |
| Update Time | Sep 12,2025 |
Detail Information
99 Series

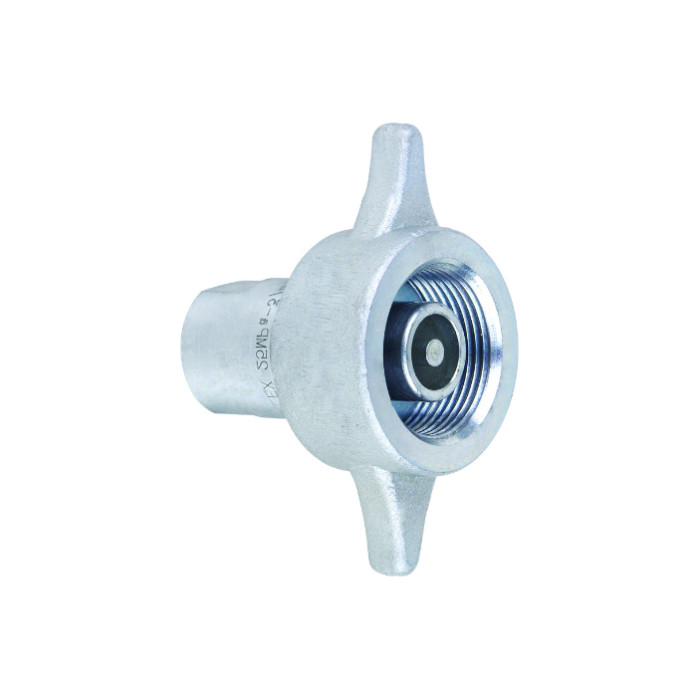

Screw-To-Connect Couplings With Wing Nut (Steel)
Poppet Valve
This EH series is interchangeable with DNP PVE1 SERIES, FASTER CVE SERIES, VOSWINKEL HT SERIES, and INTEVA VCR SERIES Heavy-duty couplings engineered for transport industry applications. Features a screw-on sleeve with integrated hexagonal wing nuts for secure tool-assisted installation and manual adjustment capability.

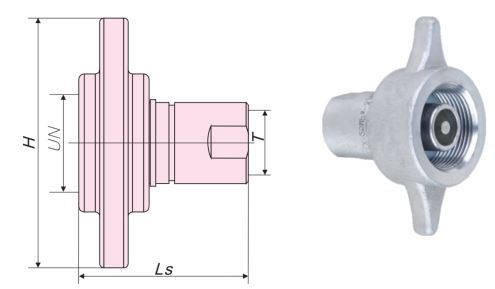

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | UN | H(mm) | Ls(mm) | T |
| HFSFC9934-3/4" | 3/4'' | 1-3/4-10UNS | 114 | 77 | 3/4"BSPP |
HFSFC9910-1" | 1'' | 2-1/8-10UNS | 114 | 83 | 1"BSPP |

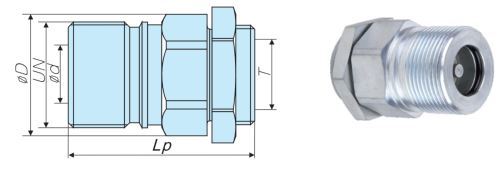

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | UN | Lp(mm) | D(mm) | d(mm) | T |
| HFSFP9934-3/4" | 3/4'' | 1-3/4-10UNS | 78 | 57 | 25.4 | 3/4"BSPP |
HFSFP9910-1" | 1'' | 2-1/8-10UNS | 83 | 60 | 31.8 | 1"BSPP |
