67 Series | DNP PNZ1 Quick Coupler (Steel)

Categories	Poppet (Interchange) Couplers
Interchange	DNP PNZ1 SERIES
Update Time	Sep 12,2025

Detail Information

67 Series

Hydraulic Quick Coupling (Steel)

Poppet Valve

This EH series is interchangeable with DNP PNZ1 SERIES. The 67 series features poppet valve quick couplings that are specialized for Australia and New Zealand.

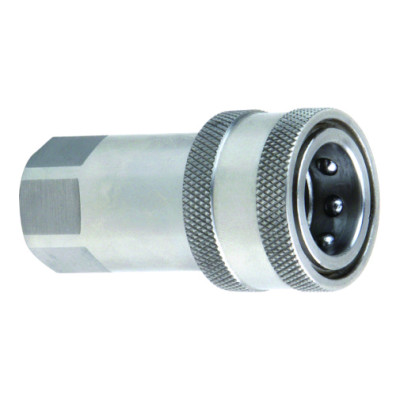

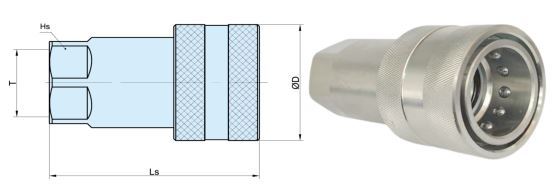

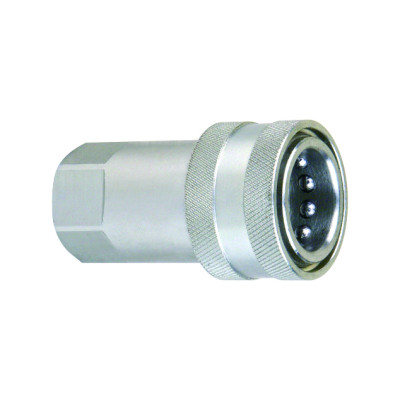

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	Hs(mm)	T
HFSFC6710-1"	1''	108	65	S46	1"BSPP

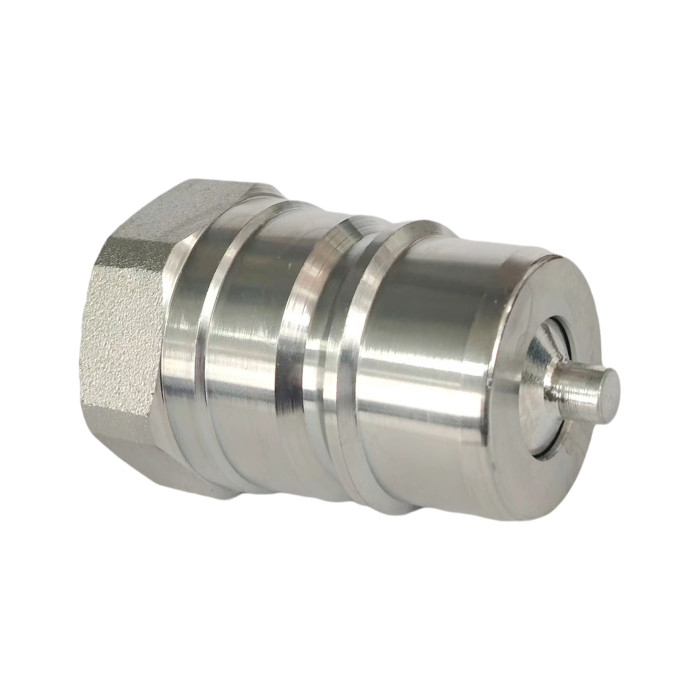

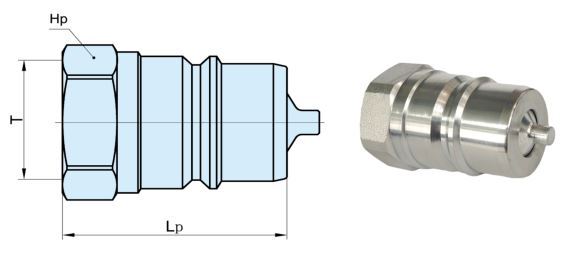

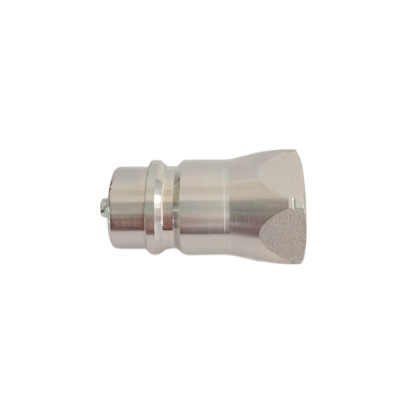

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSFP6710-1"	1''	66	S46	1"BSPP

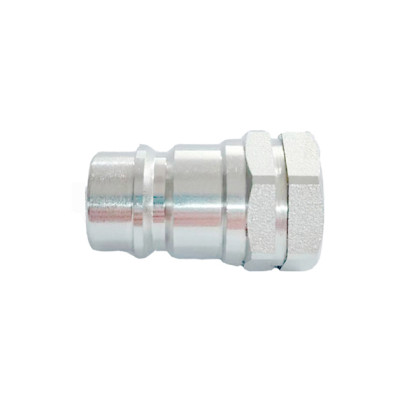

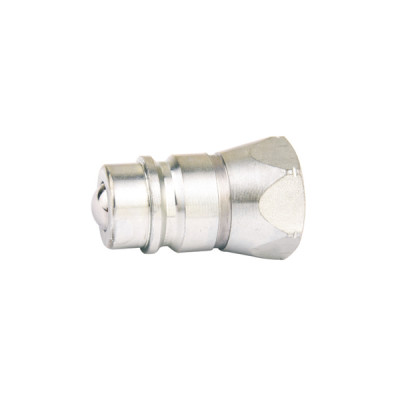

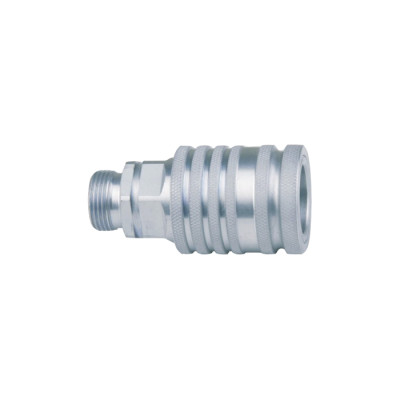

Accessories

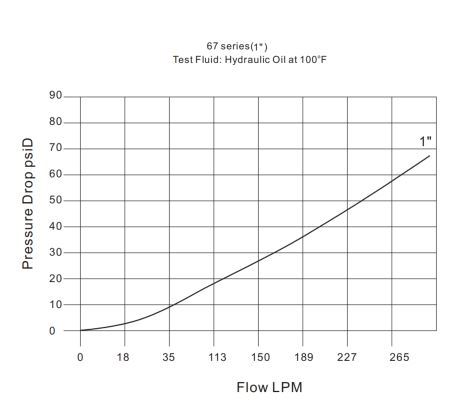

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
16	1''	230	230	230	920	920	920	13

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	DNP PNZ1 SERIES
	Valve Type:	Poppet
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
