78 Series | CPV Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | STUCCHI I-IP SERIES |
| Interchange | FASTER CPV SERIES |
| Interchange | FASTER CNV SERIES |
| Interchange | PIONEER 2000 SERIES |
| Interchange | PARKER 4200 SERIES |
| Interchange | DIXON AG SERIES |
| Interchange | HANSEN HA15000 SERIES |
| Interchange | SAFEWAY S40 SERIES |
| Interchange | DNP PPV1 SERIES |
| Interchange | VOSWINKEL HP SERIES |
| Update Time | Sep 12,2025 |
Detail Information
78 Series

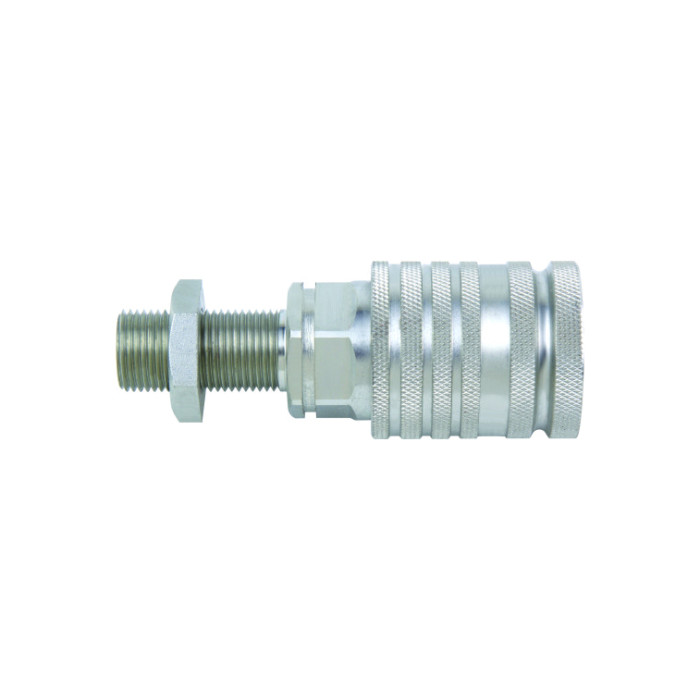

Hydraulic Push-Pull Bulkhead Coupling (Steel)
ISO-7241-A, Poppet Valve, ISO-8434-1
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PIONEER 2000 SERIES, PARKER 4200 SERIES, DIXON AG SERIES, HANSEN HA15000 SERIES, SAFEWAY S40 SERIES, DNP PPV1 SERIES and VOSWINKEL HP SERIES. ISO 7241-1 Series A compliant bulkhead couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Female
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | E(mm) | C(mm) | Hs(mm) | H1(mm) | T |
| HFSMC7812-M14X1.5-08L | 1/2'' | 96 | 34 | 8 | 38 | 6 | S27 | S19 | M14X1.5 |
| HFSMC7812-M16X1.5-10L | 1/2'' | 97 | 35 | 10 | 38 | 6 | S27 | S22 | M16X1.5 |
HFSMC7812-M18X1.5-12L | 1/2'' | 98 | 36 | 12 | 38 | 6 | S27 | S24 | M18X1.5 |
HFSMC7812-M22X1.5-15L | 1/2'' | 100 | 38 | 15 | 38 | 7 | S27 | S30 | M22X1.5 |
HFSMC7812-M26X1.5-18L | 1/2'' | 102 | 40 | 18 | 38 | 8 | S27 | S36 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | E(mm) | C(mm) | Hs(mm) | H1(mm) | T |
| HFSMC7812-M14X1.5-06S | 1/2'' | 98 | 36 | 6 | 38 | 6 | S27 | S19 | M14X1.5 |
| HFSMC7812-M16X1.5-08S | 1/2'' | 98 | 36 | 8 | 38 | 6 | S27 | S22 | M16X1.5 |
HFSMC7812-M18X1.5-10S | 1/2'' | 99 | 37 | 10 | 38 | 6 | S27 | S24 | M18X1.5 |
HFSMC7812-M20X1.5-12S | 1/2'' | 100 | 38 | 12 | 38 | 6 | S27 | S27 | M20X1.5 |
HFSMC7812-M24X1.5-16S | 1/2'' | 102 | 40 | 16 | 38 | 7 | S27 | S32 | M24X1.5 |
Male
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | C(mm) | Hp(mm) | H1(mm) | T |
| HFSMP7812-M14X1.5-08L | 1/2'' | 80 | 34 | 8 | 6 | S27 | S19 | M14X1.5 |
| HFSMP7812-M16X1.5-10L | 1/2'' | 81 | 35 | 10 | 6 | S27 | S22 | M16X1.5 |
HFSMP7812-M18X1.5-12L | 1/2'' | 82 | 36 | 12 | 6 | S27 | S24 | M18X1.5 |
HFSMP7812-M22X1.5-15L | 1/2'' | 84 | 38 | 15 | 7 | S27 | S30 | M22X1.5 |
HFSMP7812-M26X1.5-18L | 1/2'' | 86 | 40 | 18 | 8 | S27 | S36 | M26X1.5 |
S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request |
Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | C(mm) | Hp(mm) | H1(mm) | T |
HFSMP7812-M14X1.5-06S | 1/2'' | 82 | 36 | 6 | 6 | S27 | S19 | M14X1.5 |
HFSMP7812-M16X1.5-08S | 1/2'' | 82 | 36 | 8 | 6 | S27 | S22 | M16X1.5 |
HFSMP7812-M18X1.5-10S | 1/2'' | 83 | 37 | 10 | 6 | S27 | S24 | M18X1.5 |
HFSMP7812-M20X1.5-12S | 1/2'' | 84 | 38 | 12 | 6 | S27 | S27 | M20X1.5 |
HFSMP7812-M24X1.5-16S | 1/2'' | 86 | 40 | 16 | 7 | S27 | S32 | M24X1.5 |
