81 Series | ISO 7241 B Quick Couplings Brass Versions (Brass)

Categories	Poppet (Interchange) Couplers
Interchange	PARKER 60 SERIES
Interchange	DIXON H SERIES
Interchange	EATON AEROQUIP FD45 SERIES
Interchange	FASTER HNV BRASS SERIES
Interchange	DNP PBVM SERIES
Interchange	STUCCHI IROB SERIES
Interchange	HANSEN HK SERIES
Interchange	SAFEWAY BS10 SERIES
Interchange	VOSWINKEL IB-MS SERIES
Interchange	GROMELLE 635-L SERIES
Update Time	Sep 12,2025

Detail Information

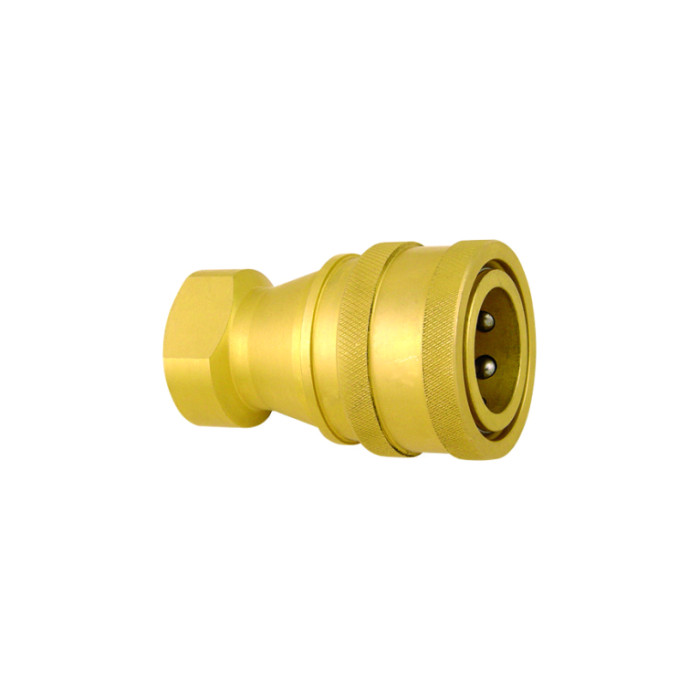

81 Series

Hydraulic Quick Coupling (Brass)

ISO-7241-B, Poppet Valve

This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV BRASS SERIES, DNP PBVM SERIES, STUCCHI IROB SERIES, HANSEN HK SERIES, SAFEWAY BS10 SERIES, VOSWINKEL IB-MS SERIES, and GROMELLE 635-L SERIES. Standard couplings for industrial applications with brass components. ISO 7241 part B interchange.

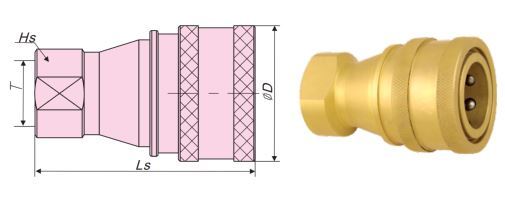

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	Hs(mm)	T
HFBFC8118-1/8"	1/8''	48	24	S14	1/8"BSPP(NPT)
HFBFC8114-1/4"	1/4''	58	28	S19	1/4"BSPP(NPT)
HFBFC8138-3/8"	3/8''	65	35	S21	3/8"BSPP(NPT)
HFBFC8112-1/2"	1/2''	72	44.5	S29	1/2"BSPP(NPT)
HFBFC8134-3/4"	3/4''	88	55	S35	3/4"BSPP(NPT)
HFBFC8110-1"	1''	102	65	S41	1"BSPP(NPT)

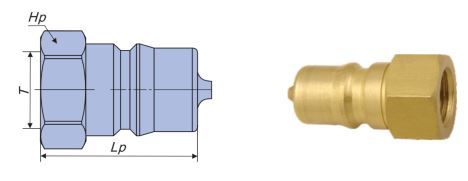

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFBFP8118-1/8"	1/8''	30	S14	1/8"BSPP(NPT)
HFBFP8114-1/4"	1/4''	36.5	S17	1/4"BSPP(NPT)
HFBFP8138-3/8"	3/8''	40	S21	3/8"BSPP(NPT)
HFBFP8112-1/2"	1/2''	44	S29	1/2"BSPP(NPT)
HFBFP8134-3/4"	3/4''	52.5	S35	3/4"BSPP(NPT)
HFBFP8110-1"	1''	62	S42	1"BSPP(NPT)

Accessories

Dash Size	ISO Size	Art. No. Dust Plug for Coupler	Art. No. Dust Cap for Plug	Material
04	6.3	ISO-B-1/4-P-P	ISO-B-1/4-C-P	PVC
06	10	ISO-B-3/8-P-P	ISO-B-3/8-C-P	PVC
08	12.5	ISO-B-1/2-P-P	ISO-B-1/2-C-P	PVC
12	20	ISO-B-3/4-P-P	ISO-B-3/4-C-P	PVC
16	25	ISO-B-1-P-P	ISO-B-1-C-P	PVC

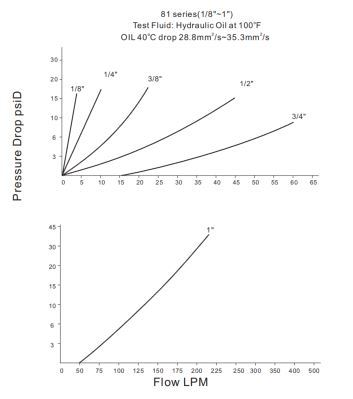

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
02	1/8''	200	200	200	800	800	800	0.5
04	1/4''	180	180	180	720	720	720	1
06	3/8''	180	180	180	720	720	720	1.5
08	1/2''	160	160	160	640	640	640	2.8
12	3/4''	120	120	120	480	480	480	10
16	1''	120	120	120	480	480	480	13

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	/
Specifications:	Series Interchange:	HANSEN HK SERIES, PARKER 60 SERIES, SAFEWAY BS10 SERIES, EATON AEROQUIP FD45 SERIES, VOSWINKEL IB-MS SERIES, FASTER HNV BRASS SERIES, STUCCHI IRBO SERIES, DNP PBVM SERIES, GROMELLE 635-L SERIES, DIXON H SERIES
	Valve Type:	Poppet
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
