Home / All / Poppet (Interchange) Couplers / 82 Series | ISO 7241 B Quick Couplings Steel Versions (Steel)

82 Series | ISO 7241 B Quick Couplings Steel Versions (Steel)

Categories	Poppet (Interchange) Couplers
Interchange	PARKER 60 SERIES
Interchange	DIXON H SERIES
Interchange	EATON AEROQUIP FD45 SERIES
Interchange	FASTER HNV SERIES
Interchange	DNP PBV1 SERIES
Interchange	STUCCHI IRB SERIES
Interchange	HANSEN HK SERIES
Interchange	SAFEWAY S10 SERIES
Interchange	VOSWINKEL IB SERIES
Interchange	GROMELLE 635-A SERIES
Update Time	Sep 12,2025

Detail Information

82 Series

Hydraulic Quick Coupling (Steel)

ISO-7241-B, Poppet Valve

This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBV1 SERIES, STUCCHI IRB SERIES, HANSEN HK SERIES, SAFEWAY S10 SERIES, VOSWINKEL IB SERIES, and GROMELLE 635-A SERIES. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8" to 2" with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.

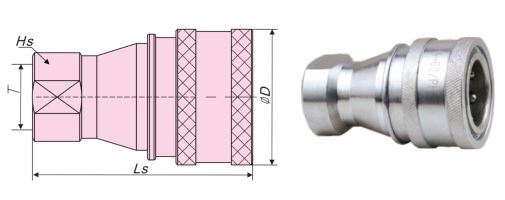

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	Hs(mm)	T
HFSFC8218-1/8"	1/8''	48	24	S14	1/8"NPT(BSPP)
HFSFC8214-1/4"	1/4''	58	28	S19	1/4"NPT(BSPP)
HFSFC8238-3/8"	3/8''	65	35	S21	3/8"NPT(BSPP)
HFSFC8212-1/2"	1/2''	72	44.5	S29	1/2"NPT(BSPP)
HFSFC8234-3/4"	3/4''	88	55	S35	3/4"NPT(BSPP)
HFSFC8210-1"	1''	102	65	S41	1"NPT(BSPP)
HFSFC82112-1-1/2"	1-1/2''	124	79	S63	1-1/2"NPT(BSPP)
HFSFC8220-2"	2''	132	109	S77	2"NPT(BSPP)

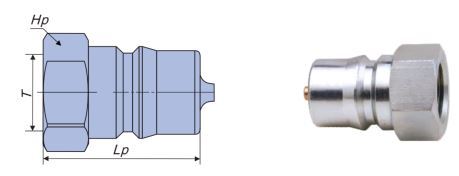

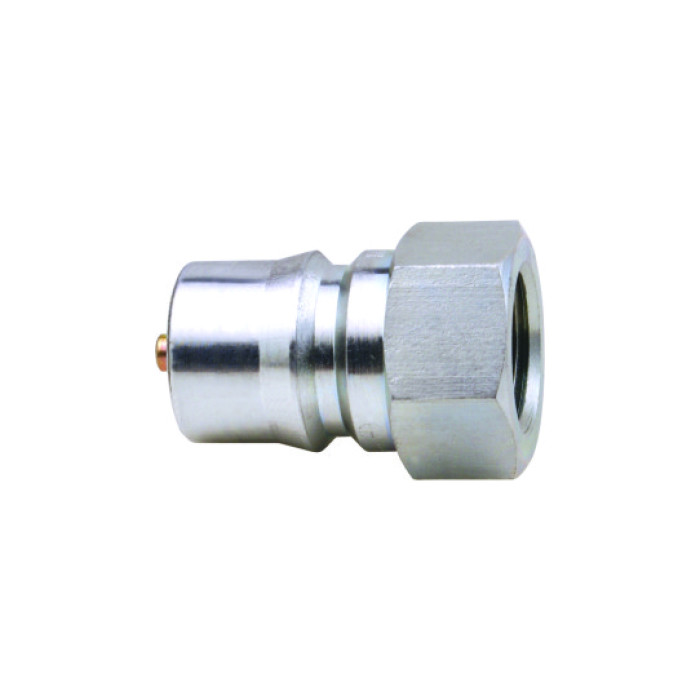

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSFP8218-1/8"	1/8''	30	S14	1/8"NPT(BSPP)
HFSFP8214-1/4"	1/4''	36.5	S17	1/4"NPT(BSPP)
HFSFP8238-3/8"	3/8''	40	S21	3/8"NPT(BSPP)
HFSFP8212-1/2"	1/2''	44	S29	1/2"NPT(BSPP)
HFSFP8234-3/4"	3/4''	52.5	S35	3/4"NPT(BSPP)
HFSFP8210-1"	1''	62	S42	1"NPT(BSPP)
HFSFP82112-1-1/2"	1-1/2''	75	S63	1-1/2"NPT(BSPP)
HFSFP8220-2"	2''	80	S77	2"NPT(BSPP)

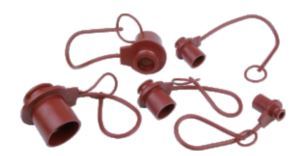

Accessories

Dash Size	ISO Size	Art. No. Dust Plug for Coupler	Art. No. Dust Cap for Plug	Material
04	6.3	ISO-B-1/4-P-P	ISO-B-1/4-C-P	PVC
06	10	ISO-B-3/8-P-P	ISO-B-3/8-C-P	PVC
08	12.5	ISO-B-1/2-P-P	ISO-B-1/2-C-P	PVC
12	20	ISO-B-3/4-P-P	ISO-B-3/4-C-P	PVC
16	25	ISO-B-1-P-P	ISO-B-1-C-P	PVC

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
02	1/8''	350	350	350	1400	1400	1400	0.5
04	1/4''	350	350	350	1400	1400	1400	1
06	3/8''	315	315	315	1260	1260	1260	1.5
08	1/2''	250	250	250	1000	1000	1000	2.8
12	3/4''	230	230	230	920	920	920	10
16	1''	200	200	200	800	800	800	13
24	1-1/2''	80	80	80	320	320	320	80
32	2''	60	60	60	240	240	240	160

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	HANSEN HK SERIES, PARKER 60 SERIES, SAFEWAY S10 SERIES, EATON AEROQUIP FD45 SERIES, VOSWINKEL IB SERIES, FASTER HNV SERIES, STUCCHI IRB SERIES, DNP PBV1 SERIES, GROMELLE 635-A SERIES, DIXON H SERIES
	Valve Type:	Poppet
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
