83 Series | ISO 7241 B Quick Couplings Stainless Steel Versions (Stainless Steel)

Categories	Poppet (Interchange) Couplers
Interchange	PARKER 60 SERIES
Interchange	DIXON H SERIES
Interchange	EATON AEROQUIP FD45 SERIES
Interchange	FASTER HNV STAINLESS STEEL SERIES
Interchange	DNP PBVX SERIES
Interchange	STUCCHI IRBX SERIES
Interchange	HANSEN HK SERIES
Interchange	SAFEWAY SS10 SERIES
Interchange	VOSWINKEL IB-VA SERIES
Interchange	GROMELLE 635-Z SERIES
Update Time	Sep 12,2025

Detail Information

83 Series

Hydraulic Quick Coupling (Stainless Steel)

ISO-7241-B, Poppet Valve

This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV STAINLESS STEEL SERIES, DNP PBVX SERIES, STUCCHI IRBX SERIES, HANSEN HK SERIES, SAFEWAY SS10 SERIES, VOSWINKEL IB-VA SERIES, and GROMELLE 635-Z SERIES. Standard couplings for industrial applications with stainless steel components (AISI 316). ISO 7241 part B interchange.

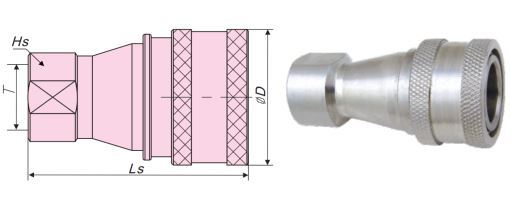

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	Hs(mm)	T
HFSSFC8318-1/8"	1/8''	48	24	S14	1/8"NPT(BSPP)
HFSSFC8314-1/4"	1/4''	58	28	S17	1/4"NPT(BSPP)
HFSSFC8338-3/8"	3/8''	65	35	S21	3/8"NPT(BSPP)
HFSSFC8312-1/2"	1/2''	72	44.5	S29	1/2"NPT(BSPP)
HFSSFC8334-3/4"	3/4''	88	55	S35	3/4"NPT(BSPP)
HFSSFC8310-1"	1''	102	65	S41	1"NPT(BSPP)

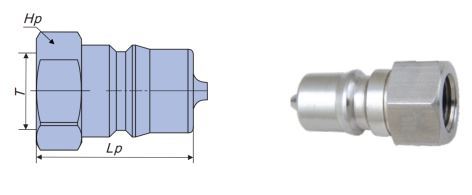

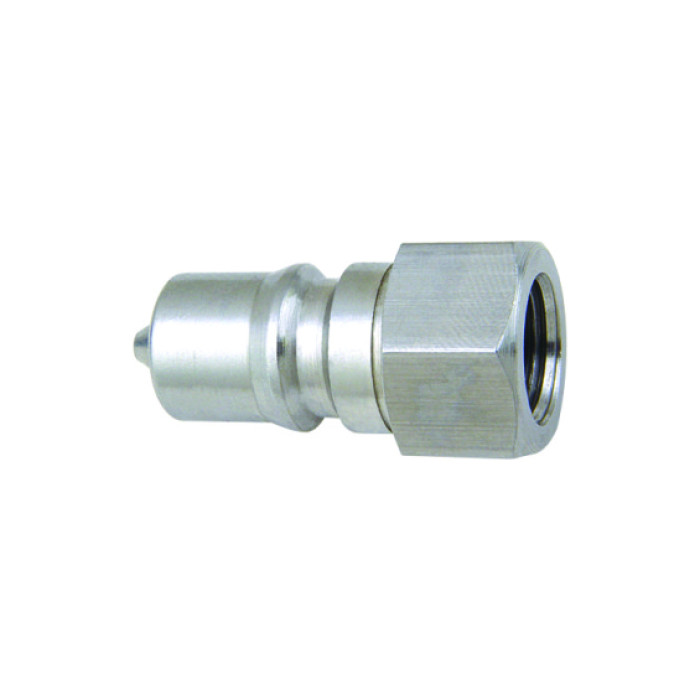

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSSFP8318-1/8"	1/8''	30	S14	1/8"NPT(BSPP)
HFSSFP8314-1/4"	1/4''	36.5	S17	1/4"NPT(BSPP)
HFSSFP8338-3/8"	3/8''	40	S21	3/8"NPT(BSPP)
HFSSFP8312-1/2"	1/2''	44	S29	1/2"NPT(BSPP)
HFSSFP8334-3/4"	3/4''	52.5	S35	3/4"NPT(BSPP)
HFSSFP8310-1"	1''	62	S42	1"NPT(BSPP)

Accessories

Dash Size	ISO Size	Art. No. Dust Plug for Coupler	Art. No. Dust Cap for Plug	Material
04	6.3	ISO-B-1/4-P-P	ISO-B-1/4-C-P	PVC
06	10	ISO-B-3/8-P-P	ISO-B-3/8-C-P	PVC
08	12.5	ISO-B-1/2-P-P	ISO-B-1/2-C-P	PVC
12	20	ISO-B-3/4-P-P	ISO-B-3/4-C-P	PVC
16	25	ISO-B-1-P-P	ISO-B-1-C-P	PVC

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
02	1/8''	250	250	250	1000	1000	1000	0.5
04	1/4''	250	250	250	1000	1000	1000	1
06	3/8''	200	200	200	800	800	800	1.5
08	1/2''	200	200	200	800	800	800	2.8
12	3/4''	160	160	160	640	640	640	10
16	1''	125	125	125	500	500	500	13

Material:	Stainless Steel
Seals:	NBR, FKM, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, -20 °C to 200 °C, Customizable
Surface Treatment:	/
Specifications:	Series Interchange:	HANSEN HK SERIES, PARKER 60 SERIES, SAFEWAY SS10 SERIES, EATON AEROQUIP FD45 SERIES, VOSWINKEL IB-VA SERIES, FASTER HNV STAINLESS STEEL SERIES, STUCCHI IRBX SERIES, DNP PBVX SERIES, GROMELLE 635-Z SERIES, DIXON H SERIES
	Valve Type:	Poppet
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
