98 Series | PARKER 6100 The Rugged Wing Style Quick Couplings (Brass)
| Categories | Threaded Poppet Couplers |
|---|---|
| Interchange | PARKER 6100 SERIES |
| Interchange | DIXON W SERIES |
| Interchange | EATON AEROQUIP 5100 SERIES |
| Interchange | FASTER FB SERIES |
| Interchange | VOSWINKEL HM SERIES |
| Interchange | SNAP-TITE 78 SERIES |
| Interchange | SAFEWAY S51 SERIES |
| Interchange | HANSEN 96 WING NUT SERIES |
| Update Time | Sep 12,2025 |
Detail Information
98 Series

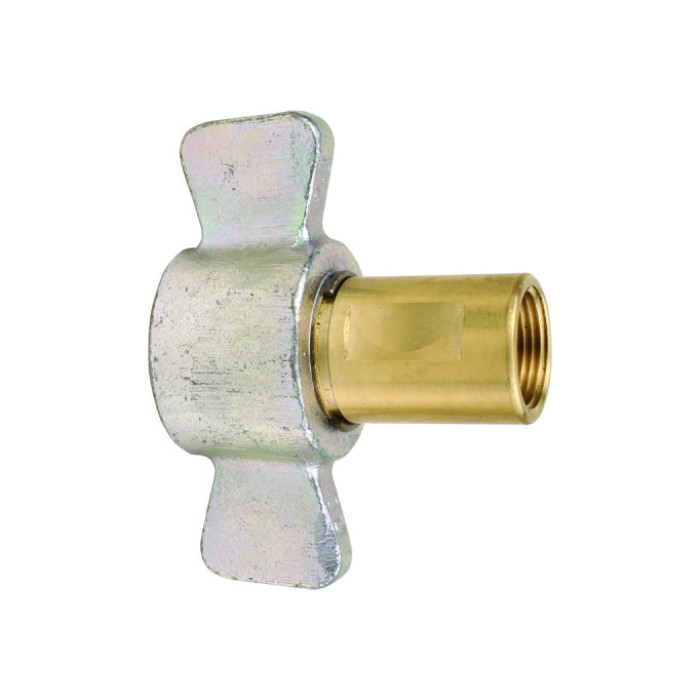

Screw-To-Connect Couplings With Wing Nut (Brass)
Poppet Valve
This EH series is interchangeable with PARKER 6100 SERIES, DIXON W SERIES, EATON AEROQUIP 5100 SERIES, FASTER FB SERIES, VOSWINKEL HM SERIES, SNAP-TITE 78 SERIES, SAFEWAY S51 SERIES, and HANSEN 96 WING NUT SERIES. Brass flat-face screw couplings specifically designed for vehicle and road machinery hydraulic systems. Features an ergonomic wing sleeve for tool-free operation, enabling easy manual connection/disconnection. Compliant with US interchange standards for seamless compatibility.

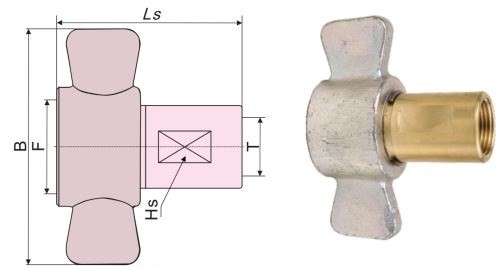

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | B(mm) | Hs(mm) | F(mm) | T |
| HFBFC9834-1/2" | 3/4'' | 75.5 | 102.5 | S27 | 1.5-12UNF | 1/2"NPTF |
| HFBFC9834-3/4" | 3/4'' | 79.5 | 102.5 | S29.5 | 1.5-12UNF | 3/4"NPTF |
HFBFC9810-1" | 1'' | 94.5 | 113 | S36.5 | 1.875-12UNF | 1"NPTF |
HFBFC98114 -1-1/4" | 1-1/4'' | 100 | 136 | S45 | 2.125-12UNF | 1-1/4"NPTF |
HFBFC98112 -1-1/2" | 1-1/2'' | 104 | 137.5 | S52 | 2.5-12UNF | 1-1/2"NPTF |

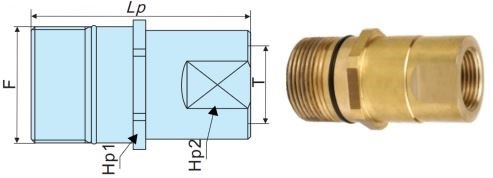

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp1(mm) | Hp2(mm) | F(mm) | T |
| HFBFP9834-1/2" | 3/4'' | 76 | S41 | S30 | 1.5-12UNF | 1/2"NPTF |
| HFBFP9834-3/4" | 3/4'' | 79.5 | S41 | S33 | 1.5-12UNF | 3/4"NPTF |
HFBFP9810-1" | 1'' | 94.5 | S47.5 | S41.8 | 1.875-12UNF | 1"NPTF |
HFBFP98114 -1-1/4" | 1-1/4'' | 100 | S54 | S50 | 2.125-12UNF | 1-1/4"NPTF |
HFBFP98112 -1-1/2" | 1-1/2'' | 104 | S63.5 | S60 | 2.5-12UNF | 1-1/2"NPTF |

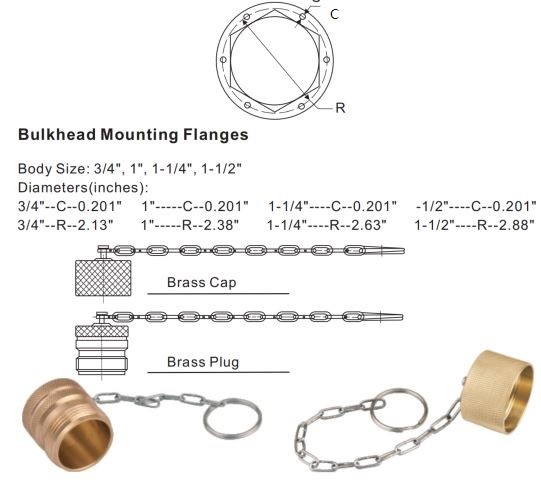

Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 12 | 20 | 98-3/4-P-B | 98-3/4-C-B | BRASS |
| 12 | 20 | 98-3/4-P-B | 98-3/4-C-B | BRASS |
16 | 25 | 98-1-P-B | 98-1-C-B | BRASS |
20 | 31 | 98-1-1/4-P-B | 98-1-1/4-C-B | BRASS |
| 24 | 38 | 98-1-1/2-P-B | 98-1-1/2-C-B | BRASS |
