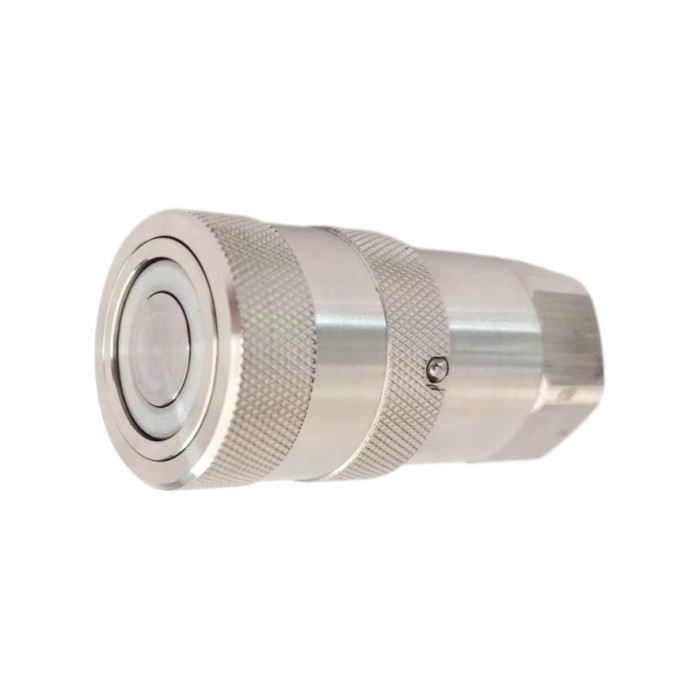

93 Series | ISO 16028 FL Flat Face Quick Coupling (Stainless Steel)

Categories	Flat Face Couplers
Interchange	STUCCHI FL SERIES
Interchange	CEJN X66 SERIES
Interchange	PARKER FS SERIES
Interchange	VOSWINKEL FH-VA SERIES
Interchange	GROMELLE 629-Z SERIES
Interchange	FASTER 2FFI Stainless Steel SERIES
Interchange	DNP PLTX SERIES
Interchange	DIXON HT SERIES
Update Time	Sep 12,2025

Detail Information

93 Series

Flat/Flush Face Coupling (Stainless Steel)

ISO-16028, HTMA STANDARD

This EH series is interchangeable with STUCCHI FL SERIES, CEJN X66 SERIES, PARKER FS SERIES, VOSWINKEL FH-VA SERIES, GROMELLE 629-Z SERIES, FASTER 2FFI Stainless Steel SERIES, DNP PLTX SERIES, and DIXON HT SERIES. Flat face couplings, with stainless steel (AISI 316) components and seals in Viton. High corrosion resistance. ISO 16028 interchange.

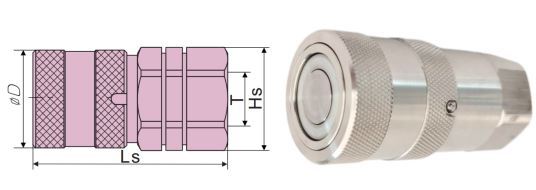

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	Hs(mm)	T
HFSSFC9314-1/4"NPT	1/4''	53	28	S27	1/4" NPT
HFSSFC9314-1/4"G	1/4''	53	28	S27	1/4" BSPP
HFSSFC9338-3/8"NPT	3/8''	69	32	S30	3/8"NPT
HFSSFC9338-3/8"G	3/8''	69	32	S30	3/8"BSPP
HFSSFC9312-1/2"NPT	1/2''	77.5	38	S36	1/2" NPT
HFSSFC9312-1/2"G	1/2''	77.5	38	S36	1/2" BSPP
HFSSFC9312-3/4"G	1/2''	84	38	S36	3/4" BSPP
HFSSFC9312-7/8"UNF	1/2''	80	38	S36	7/8"UNF-14
HFSSFC9358-3/4"NPT	5/8''	87	42	S41	3/4" NPT
HFSSFC9334-3/4"NPT	3/4''	95.8	48	S46	3/4" NPT
HFSSFC9334-3/4"G	3/4''	95.8	48	S46	3/4" BSPP
HFSSFC9310-1"NPT	1''	104.5	56.5	S55	1" NPT
HFSSFC9310 1"G	1''	104.5	56.5	S55	1" BSPP

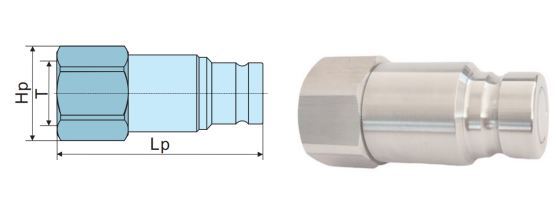

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSSFP9314-1/4"NPT	1/4''	50	S22	1/4" NPT
HFSSFP9314-1/4"G	1/4''	50	S22	1/4" BSPP
HFSSFP9338-3/8"NPT	3/8''	60	S27	3/8"NPT
HFSSFP9338-3/8"G	3/8''	60	S27	3/8"BSPP
HFSSFP9312-1/2"NPT	1/2''	68	S36	1/2" NPT
HFSSFP9312-1/2"G	1/2''	68	S36	1/2" BSPP
HFSSFP9312-3/4"G	1/2''	70.5	S36	3/4" BSPP
HFSSFP9312-7/8"UNF	1/2''	70.5	S36	7/8"UNF-14
HFSSFP9358-3/4"NPT	5/8''	73	S36	3/4" NPT
HFSSFP9334-3/4"NPT	3/4''	83	S46	3/4" NPT
HFSSFP9334-3/4"G	3/4''	83	S46	3/4" BSPP
HFSSFP9310-1"NPT	1''	90.5	S55	1" NPT
HFSSFP9310-1"G	1''	90.5	S55	1" BSPP

Accessories

Flat/Flush Face Coupling (Stainless Steel)

Dash Size	ISO Size	Art. No. Dust Plug for Coupler	Art. No. Dust Cap for Plug	Material
04	6.3	ISO16028-6-C-P	ISO16028-6-P-P	PVC
06	10	ISO16028-10-C-P	ISO16028-10-P-P	PVC
08	12.5	ISO16028-12-C-P	ISO16028-12-P-P	PVC
10	16	ISO16028-16-C-P	ISO16028-16-P-P	PVC
12	20	ISO16028-20-C-P	ISO16028-20-P-P	PVC
16	25	ISO16028-25-C-P	ISO16028-25-P-P	PVC

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
04	1/4''	100	60	100	200	120	200	0.006
06	3/8''	100	60	100	200	120	200	0.008
08	1/2''	40	30	40	80	60	80	0.01
10	5/8''	30	20	30	60	40	60	0.02
12	3/4''	30	20	30	60	40	60	0.02
16	1''	30	20	30	60	40	60	0.03

Material:	Stainless Steel
Seals:	FKM, Seals can be customized to meet your special work condition/media
Working Temperatures:	-20 °C to 200 °C, Customizable
Surface Treatment:	/
Specifications:	Series Interchange:	STUCCHI FL SERIES, CEJN X66 SERIES, PARKER FS SERIES, VOSWINKEL FH-VA SERIES, GROMELLE 629-Z SERIES, FASTER 2FFI Stainless Steel SERIES, DNP PLTX SERIES, DIXON HT SERIES
	Valve Type:	Flat
	Connection:	Push To Connect
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
