94 Series | PD Diagnostic Quick Couplings, ISO 15171-1 (Steel)
| Categories | Flat Face Couplers |
|---|---|
| Interchange | PARKER PD SERIES |
| Interchange | DIXON PD SERIES |
| Interchange | DNP PLD3 SERIES |
| Interchange | FASTER DF SERIES |
| Interchange | EATON AEROQUIP FD90 SERIES |
| Interchange | BRAZIL DYNAMIC DIAGOSTICO SERIES |
| Interchange | HOLMBURY DTP SERIES |
| Update Time | Sep 12,2025 |
Detail Information
94 Series
Hydraulic Diagnostic Quick Coupling (Steel)
Flat/Flush Face, ISO-15171-1 STANDARD
This EH series is interchangeable with PARKER PD SERIES, DIXON PD SERIES, DNP PLD3 SERIES, FASTER DF SERIES, EATON AEROQUIP FD90 SERIES, BRAZIL DYNAMIC DIAGOSTICO SERIES, and HOLMBURY DTP SERIES. Hydraulic pressure measurement couplings featuring ISO 15171-1 compliant flat-face connections. The male component installs directly on hydraulic lines while the female interface connects to gauge instrumentation, enabling precise system pressure monitoring without fluid loss during connection/disconnection.

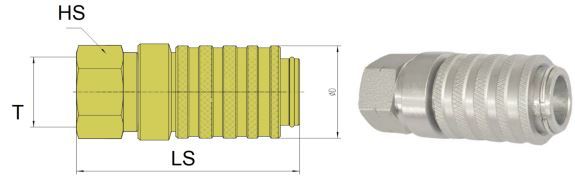

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9418-1/8"NPT | 1/8'' | 44 | 24 | S21 | 1/8" NPT FEMALE |
HFSFC9418-1/4"NPT | 1/8'' | 50 | 24 | S21 | 1/4" NPT FEMALE |

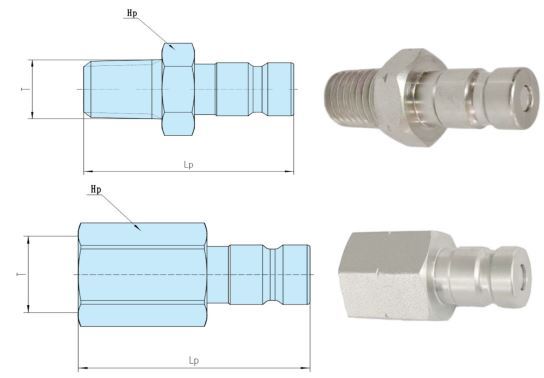

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9418-1/8"NPT | 1/8'' | 37.5 | S14 | 1/8" NPT FEMALE |
HFSFP9418-1/4"NPT | 1/8'' | 40 | S19 | 1/4" NPT FEMALE |
HFSMP9418-1/4"NPT | 1/8'' | 37.5 | S19 | 1/4" NPT MALE |
HFSMP9418-M14X1.5 | 1/8'' | 37.5 | S19 | M14X1.5 MALE O-RING |
