96 Series | FFH ISO 16028 Flat Face Quick Coupling (Steel)

96 Series | FFH ISO 16028 Flat Face Quick Coupling (Steel)
96 Series | FFH ISO 16028 Flat Face Quick Coupling (Steel)96 Series | FFH ISO 16028 Flat Face Quick Coupling (Steel)96 Series | FFH ISO 16028 Flat Face Quick Coupling (Steel)96 Series | FFH ISO 16028 Flat Face Quick Coupling (Steel)
CategoriesFlat Face Couplers
InterchangeSTUCCHI A SERIES
InterchangeFASTER FFH SERIES
InterchangePARKER FEM SERIES
InterchangeCEJN X65 SERIES
InterchangeDIXON HT SERIES
InterchangeDNP PLT4 SERIES
InterchangeVOSWINKEL FH SERIES
InterchangeGROMELLE 629-A SERIES
Update TimeSep 12,2025
Contact Now
Favorites
Detail Information
Items
Specs
Applications

96 Series

Flat/Flush Face Coupling (Steel), Higher Work Pressure

ISO-16028 & HTMA STANDARD

This EH series is interchangeable with STUCCHI A SERIES, FASTER FFH SERIES, PARKER FEM SERIES, CEJN X65 SERIES, DIXON HT SERIES, DNP PLT4 SERIES, VOSWINKEL FH SERIES, and GROMELLE 629-A SERIES. The Premier Series Flat Face Couplings, engineered to ISO 16028 interchange standards, deliver exceptional hydraulic performance with higher pressure ratings, optimized flow efficiency, and reduced pressure drop—outperforming both EH 95 Series and competing products. Designed for critical no-leak applications, these couplings feature a non-spill flat-face valve system that eliminates fluid loss during coupling/uncoupling, making them the ideal choice for contamination-sensitive hydraulic systems. Their precision engineering ensures reliable operation while maintaining full ISO compatibility for seamless integration.

Female

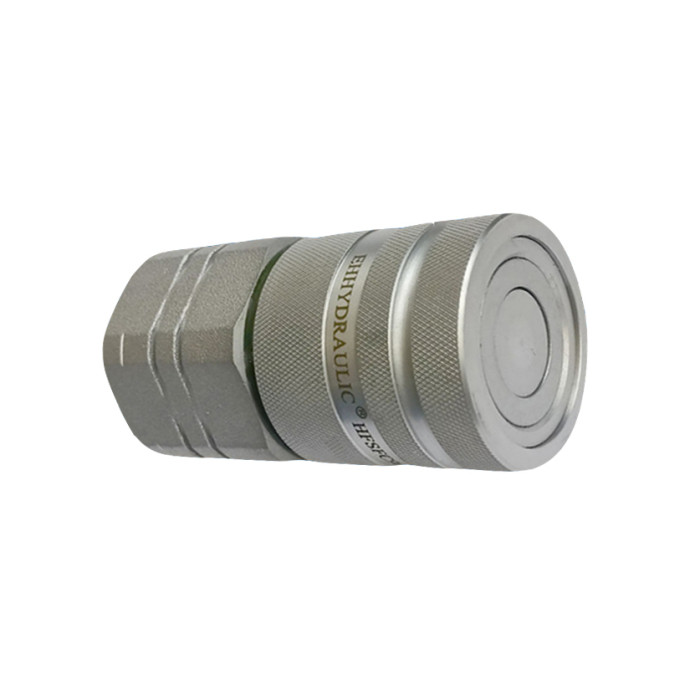

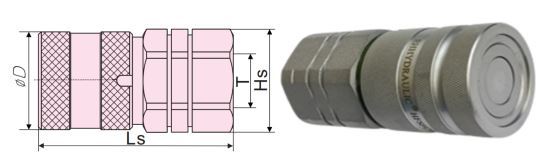

Flat/Flush Face Coupling (Steel) female
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
D(mm)
Hs(mm)
T
HFSFC9614-1/4" NPT
1/4''
57.2
28
S27
1/4" NPT
HFSFC9614-1/4" BSPP
1/4''
57.2
28
S27
1/4" BSPP
HFSFC9614-7/16"
-20 UNF
1/4''
57.2
28
S27
7/16" UNF-20
HFSFC9638-3/8" NPT
3/8''
69
32
S30
3/8" NPT
HFSFC9638-1/2" NPT
3/8''
70
32
S30
1/2" NPT
HFSFC9638-3/8" BSPP
3/8''
69
32
S30
3/8" BSPP
HFSFC9638-1/2" BSPP
3/8''
70
32
S30
1/2" BSPP
HFSFC9638-9/16" UNF
3/8''
70
32
S30
9/16" UNF-18
HFSFC9638-3/4" UNF
3/8''
70
32
S30
3/4" UNF-16
HFSFC9638-M18x1.5 Male 12L
3/8''
67.5
32
S30
M18x1.5 Male 12L
HFSFC9638-M22X1.5 Male15L
3/8''
68.5
32
S30
M22X1.5 Male15L
HFSFC9638-M18x1.5
Bulkhead
3/8''
84
32
S30
M18x1.5 Male Bulkhead Short 12L
HFSFC9638-M22X1.5
Bulkhead
3/8''
84
32
S30
M22X1.5 Male Bulkhead Short 15L
HFSFC9612-1/2" NPT
1/2''
77.5
38
S36
1/2" NPT
HFSFC9612-3/4" NPT
1/2''
84
38
S36
3/4" NPT
HFSFC9612-1/2" BSPP
1/2''
77.5
38
S36
1/2" BSPP
HFSFC9612-3/4" BSPP
1/2''
84
38
S36
3/4" BSPP
HFSFC9612-7/8" UNF
1/2''
77.5
38
S36
7/8" UNF-14
HFSFC9612
-1-1/16" UN
1/2''
84
38
S36
1-1/16" UN-12
HFSFC9612
-1"UNS Male
1/2''
105
38
S36
1"UNS Male Bulkhead ORFS
HFSFC9612
-1-3/16"UN
Male
1/2''
105
38
S36
1-3/16"UN Male Bulkhead ORFS
HFSFC9658-3/4" NPT
5/8''
87
42
S41
3/4" NPT
HFSFC9658
-1-1/16"UN
5/8''
84
42
S41
1-1/16" UN-12
HFSFC9634-3/4" NPT
3/4''
96.8
48
S46
3/4" NPT
HFSFC9634-3/4" BSPP
3/4''
96.8
48
S46
3/4" BSPP
HFSFC9634-1" NPT
3/4''
98.8
48
S46
1" NPT
HFSFC9634-1" BSPP
3/4''
98.8
48
S46
1" BSPP
HFSFC9634
-1-1/16" UN
3/4''
98.8
48
S46
1-1/16" UN-12
HFSFC9634
-1-5/16" UN
3/4''
98.8
48
S46
1-5/16" UN-12
HFSFC9634
-1-3/16" UN
Male
3/4''
132.5
48
S46
1-3/16" UN Male Bulkhead ORFS
HFSFC9634
-1-1/16" UN
Male
3/4''
132.5
48
S46
1-1/16" UN Male Bulkhead ORFS
HFSFC9610-1" NPT
1''
104.5
55
S55
1" NPT
HFSFC9610-1" BSPP
1''
104.5
55
S55
1" BSPP
HFSFC9610
-1-1/4" NPT
1''
105.5
55
S55
1-1/4" NPT
HFSFC9610
-1-1/4" BSPP
1''
105.5
55
S55
1-1/4" BSPP
HFSFC9610
-1-5/ 16" UN
1''
105.5
55
S55
1-5/ 16" UN-12
HFSFC9610-1-5/8"UN
1''
105.5
55
S55
1-5/8" UN-16
HFSFC96114
-1-1/4" BSPP
1-1/4''
126.5
60
S60
1-1/4" BSPP
HFSFC96114
-1-1/4" NPT
1-1/4''
126.5
60
S60
1-1/4" NPT
HFSFC96112
-1-1/2" BSPP
1-1/2''
137
65
S65
1-1/2" BSPP
HFSFC96112
-1-1/2" NPT
1-1/2''
137
65
S65
1-1/2" NPT
HFSFC9620-2'' BSPP
2''
167.5
80
S80
2'' BSPP
HFSFC9620-2'' NPT
2''
167.5
80
S80
2'' NPT

Male

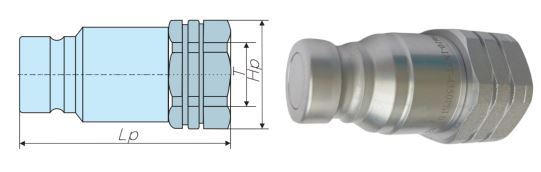

Flat/Flush Face Coupling (Steel) male
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
Hp(mm)
T
HFSFP9614-1/4" NPT
1/4''
50
S27
1/4" NPT
HFSFP9614-1/4" BSPP
1/4''
50
S27
1/4" BSPP
HFSFP9614-7/16"-20 UNF
1/4''
51
S27
7/16" UNF-20
HFSFP9638-3/8" NPT
3/8''
59.5
S30
3/8" NPT
HFSFP9638-1/2" NPT
3/8''
62.5
S30
1/2" NPT
HFSFP9638-3/8" BSPP
3/8''
59.5
S30
3/8" BSPP
HFSFP9638-1/2" BSPP
3/8''
62.5
S30
1/2" BSPP
HFSFP9638-9/16" UNF
3/8''
59.5
S30
9/16" UNF-18
HFSFP9638-3/4" UNF
3/8''
62.5
S30
3/4" UNF-16
HFSFP9638-M18x1.5 Male 12L
3/8''
65.5
S30
M18x1.5 Male 12L
HFSFP9638-M22X1.5 Male15L
3/8''
66.5
S30
M22X1.5 Male15L
HFSFP9638-M18x1.5
Bulkhead
3/8''
90
S30
M18x1.5 Male Bulkhead Short 12L
HFSFP9638-M22X1.5
Bulkhead
3/8''
90
S30
M22X1.5 Male Bulkhead Short 15L
HFSFP9612-1/2" NPT
1/2''
68
S36
1/2" NPT
HFSFP9612-3/4" NPT
1/2''
70.5
S36
3/4" NPT
HFSFP9612-1/2" BSPP
1/2''
68
S36
1/2" BSPP
HFSFP9612-3/4" BSPP
1/2''
70.5
S36
3/4" BSPP
HFSFP9612-7/8" UNF
1/2''
70.5
S36
7/8" UNF-14
HFSFP9612-1-1/16" UN
1/2''
72.5
S36
1-1/ 16" UN-12
HFSFP9612-1"UNS Male
1/2''
93
S36
1"UNS Male Bulkhead ORFS
HFSFP9612-1-3/16"UN
Male
1/2''
102
S36
1-3/16"UN Male Bulkhead ORFS
HFSFP9658-3/4" NPT
5/8''
73
S41
3/4" NPT
HFSFP9658-1-1/16"UN
5/8''
73
S41
1-1/16" UN-12
HFSFP9634-3/4" NPT
3/4''
83
S46
3/4" NPT
HFSFP9634-3/4" BSPP
3/4''
83
S46
3/4" BSPP
HFSFP9634-1" NPT
3/4''
83
S46
1" NPT
HFSFP9634-1" BSPP
3/4''
83
S46
1" BSPP
HFSFP9634-1-1/16" UN
3/4''
83
S46
1-1/ 16" UN-12
HFSFP9634-1-5/16" UN
3/4''
83
S46
1-5/ 16" UN-12
HFSFP9634-1-3/16" UN
Male
3/4''
117
S46
1-3/16" UN Male Bulkhead ORFS
HFSFP9634-1-1/16" UN
Male
3/4''
117
S46
1-1/16" UN Male Bulkhead ORFS
HFSFP9610-1" NPT
1''
89
S55
1" NPT
HFSFP9610-1" BSPP
1''
89
S55
1" BSPP
HFSFP9610-1-1/4" NPT
1''
92
S55
1-1/4" NPT
HFSFP9610-1-1/4" BSPP
1''
92
S55
1-1/4" BSPP
HFSFP9610-1-5/ 16" UN
1''
97
S55
1-5/16" UN-12
HFSFP9610-1-5/8"UN
1''
97
S55
1-5/8" UN-16
HFSFP96114-1-1/4" BSPP
1-1/4''
105
S60
1-1/4" BSPP
HFSFP96114-1-1/4" NPT
1-1/4''
105
S60
1-1/4" NPT
HFSFP96112-1-1/2" BSPP
1-1/2''
114
S65
1-1/2" BSPP
HFSFP96112-1-1/2" NPT
1-1/2''
114
S65
1-1/2" NPT
HFSFP9620-2'' BSPP
2''
125
S80
2'' BSPP
HFSFP9620-2'' NPT
2''
125
S80
2'' NPT

Accessories


Flat/Flush Face Coupling (Steel) accessories
Flat/Flush Face Coupling (Steel) accessories
Dash Size
ISO Size
Art. No.
Dust Cap For Coupler
Art. No.
Dust Cap For Plug
Material
04
6.3
ISO16028-6-C-P
ISO16028-6-P-P
PVC
06
10
ISO16028-10-C-P
ISO16028-10-P-P
PVC
08
12.5
ISO16028-12-C-P
ISO16028-12-P-P
PVC
10
16
ISO16028-16-C-P
ISO16028-16-P-P
PVC
12
19
ISO16028-19-C-P
ISO16028-19-P-P
PVC
16
25
ISO16028-25-C-P
ISO16028-25-P-P
PVC

Technical Specifications

Dash Size
Body Size (Inch)
Max. Work PressureMale (bar)
Max. Work PressureFemale (bar)
Max. Work PressureCoupled (bar)
Min. Burst
Pressure
Male
(bar)
Min. Burst
Pressure
Female
(bar)
Min. Burst
Pressure
Coupled
(bar)
Spillage
(ml)
04
1/4''
420
420
420
1700
1700
1700
0.006
06
3/8''
350
350
350
1400
1400
1400
0.008
08
1/2''
350
330
350
1400
1400
1400
0.01
10
5/8''
350
330
350
1400
1400
1400
0.02
12
3/4''
350
330
350
1400
1400
1400
0.02
16
1''
350
300
350
1400
1400
1400
0.03
20
1-1/4''
300
300
300
900
900
900
0.05
24
1-1/2''
270
270
270
800
800
800
0.05
32
2''
250
200
250
800
800
800
0.07
Material:
Steel
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
MATE 1000 (ZnNi)
Specifications:
Series Interchange:
STUCCHI A SERIES, FASTER FFH SERIES, DNP PLT4 SERIES, PARKER FEM SERIES, CEJN X65 SERIES, VOSWINKEL FH SERIES, DIXON HT SERIES, GROMELLE 629-A SERIES
Valve Type:
Flat
Connection:
Push to Connect
Disconnection:
Sleeve Retraction
Connection Under Pressure:
Not Allowed

Pressure Drop

Pressure Drop
