103/104 Series | SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (AISI 316 Stainless Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | PARKER H SERIES |
| Interchange | PARKER IH SERIES |
| Interchange | SNAP-TITE H SERIES |
| Interchange | SNAP-TITE IH SERIES |
| Interchange | DIXON V SERIES |
| Interchange | FASTER TNV SERIES |
| Interchange | FASTER TNL SERIES |
| Interchange | DNP PNVX SERIES |
| Interchange | DNP PNOX SERIES |
| Interchange | STUCCHI SH SERIES |
| Update Time | Sep 12,2025 |
Detail Information
103 Series / 104 Series
High-Pressure Coupling
Poppet Valve / Unvalved, AISI 316 Stainless Steel
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNVX SERIES, DNP PNOX SERIES and STUCCHI SH SERIES. Stainless Steel Product. 103 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 104 parts (free flow) same series. AISI SS316 Material.

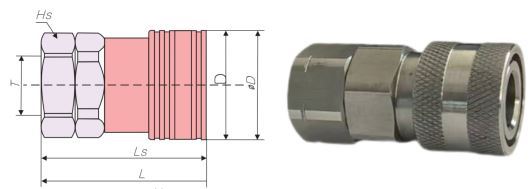

Female
| 103 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSSFC10314-1/4" | 1/4'' | 50 | 24 | S22 | 84 | 1/4" NPT |
HFSSFC10338-3/8" | 3/8'' | 57 | 27 | S24 | 95 | 3/8 "NPT |
HFSSFC10312-1/2" | 1/2'' | 65 | 34 | S30 | 110 | 1/2" NPT |
HFSSFC10334-3/4" | 3/4'' | 64 | 42 | S36 | 106 | 3/4" NPT |
HFSSFC10310-1" | 1'' | 71 | 51 | S46 | 116 | 1" NPT |
| 104 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSSFC10414-1/4" | 1/4'' | 50 | 24 | S22 | 84 | 1/4" NPT |
HFSSFC10438-3/8" | 3/8'' | 57 | 27 | S24 | 95 | 3/8 "NPT |
HFSSFC10412-1/2" | 1/2'' | 65 | 34 | S30 | 110 | 1/2" NPT |
HFSSFC10434-3/4" | 3/4'' | 64 | 42 | S36 | 106 | 3/4" NPT |
HFSSFC10410-1" | 1'' | 71 | 51 | S46 | 116 | 1" NPT |

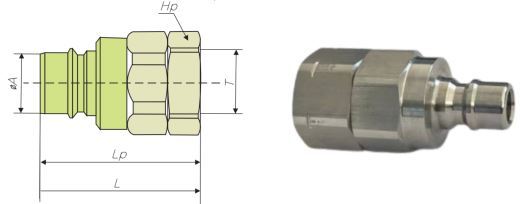

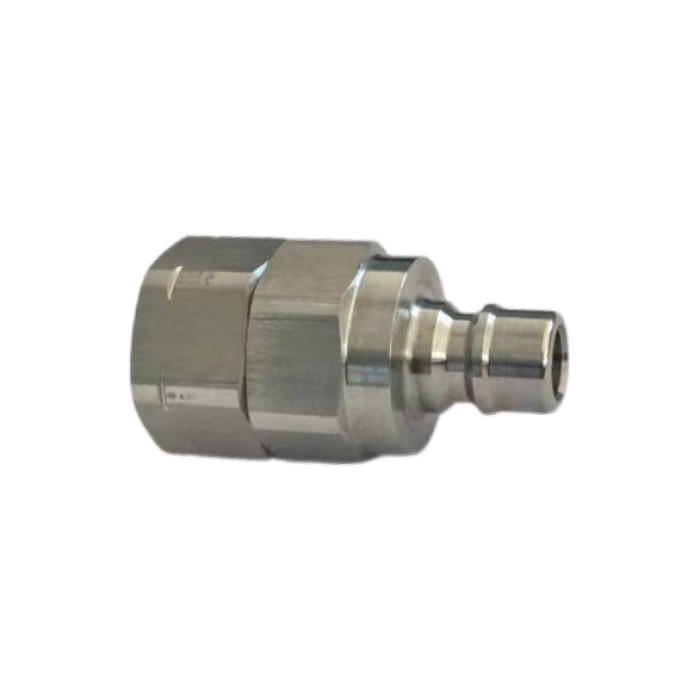

Male
| 103 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFSSFP10314-1/4" | 1/4'' | 49 | 10.8 | S22 | 84 | 1/4" NPT |
HFSSFP10338-3/8" | 3/8'' | 57 | 12.9 | S24 | 95 | 3/8 "NPT |
HFSSFP10312-1/2" | 1/2'' | 63 | 16 | S30 | 110 | 1/2" NPT |
HFSSFP10334-3/4" | 3/4'' | 64 | 23.3 | S36 | 106 | 3/4" NPT |
HFSSFP10310-1" | 1'' | 68 | 29.7 | S46 | 116 | 1" NPT |
| 104 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFSSFP10414-1/4" | 1/4'' | 49 | 10.8 | S22 | 84 | 1/4" NPT |
HFSSFP10438-3/8" | 3/8'' | 57 | 12.9 | S24 | 95 | 3/8 "NPT |
HFSSFP10412-1/2" | 1/2'' | 63 | 16 | S30 | 110 | 1/2" NPT |
HFSSFP10434-3/4" | 3/4'' | 64 | 23.3 | S36 | 106 | 3/4" NPT |
HFSSFP10410-1" | 1'' | 68 | 29.7 | S46 | 116 | 1" NPT |
