101/107 Series | SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Brass)

101/107 Series | SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Brass)
101/107 Series | SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Brass)101/107 Series | SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Brass)
CategoriesPoppet (Interchange) Couplers
InterchangePARKER H SERIES
InterchangePARKER IH SERIES
InterchangeSNAP-TITE H SERIES
InterchangeSNAP-TITE IH SERIES
InterchangeDIXON V SERIES
InterchangeFASTER TNV SERIES
InterchangeFASTER TNL BRASS SERIES
InterchangeSTUCCHI SH SERIES
Update TimeSep 12,2025
Contact Now
Favorites
Detail Information
Items
Specs
Applications

101 Series / 107 Series

High Pressure Coupling

Poppet Valve / Unvalved, Brass

This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL BRASS SERIES and STUCCHI SH SERIES. 101 series couplings are commonly used in the US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 107 parts (free flow) same series. Brass.

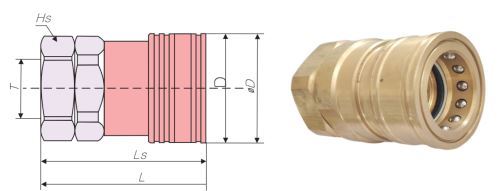

Female


101 Series, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
D(mm)
Hs(mm)
L(mm)
T
HFBFC10114-1/4"
1/4''
50
24
S22
84
1/4" NPT
HFBFC10138-3/8"
3/8''
57
27
S24
95
3/8 "NPT
HFBFC10112-1/2"
1/2''
65
34
S30
110
1/2" NPT
HFBFC10134-3/4"
3/4''
64
42
S36
106
3/4" NPT
HFBFC10110-1"
1''
71
51
S46
116
1" NPT
107 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
D(mm)
Hs(mm)
L(mm)
T
HFBFC10714-1/4"
1/4''
50
24
S22
84
1/4" NPT
HFBFC10738-3/8"
3/8''
57
27
S24
95
3/8 "NPT
HFBFC10712-1/2"
1/2''
65
34
S30
110
1/2" NPT
HFBFC10734-3/4"
3/4''
64
42
S36
106
3/4" NPT
HFBFC10710-1"
1''
71
51
S46
116
1" NPT

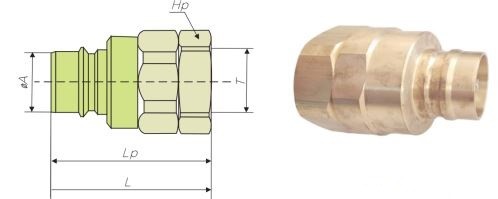

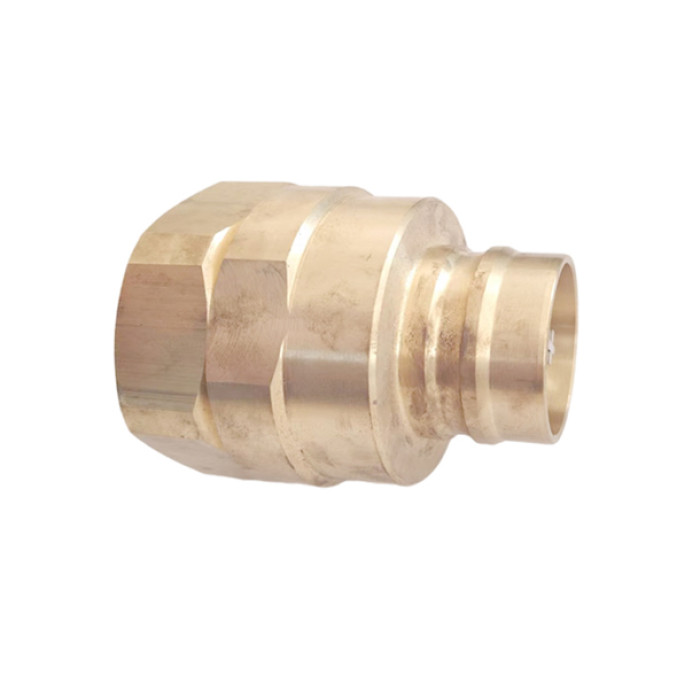

Male

High Pressure Coupling Poppet Valve
101 Series, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
A(mm)
Hp(mm)
L(mm)
T
HFBFP10114-1/4"
1/4''
49
10.8
S22
84
1/4" NPT
HFBFP10138-3/8"
3/8''
57
12.9
S24
95
3/8 "NPT
HFBFP10112-1/2"
1/2''
63
16
S30
110
1/2" NPT
HFBFP10134-3/4"
3/4''
64
23.3
S36
106
3/4" NPT
HFBFP10110-1"
1''
68
29.7
S46
116
1" NPT
107 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
A(mm)
Hp(mm)
L(mm)
T
HFBFP10714-1/4"
1/4''
49
10.8
S22
84
1/4" NPT
HFBFP10738-3/8"
3/8''
57
12.9
S24
95
3/8 "NPT
HFBFP10712-1/2"
1/2''
63
16
S30
110
1/2" NPT
HFBFP10734-3/4"
3/4''
64
23.3
S36
106
3/4" NPT
HFBFP10710-1"
1''
68
29.7
S46
116
1" NPT

Accessories


Technical Specifications

101 Series
Dash Size
Body Size (Inch)
Max. Work PressureMale (bar)
Max. Work PressureFemale (bar)
Max. Work PressureCoupled (bar)
Min. Burst
Pressure
Male
(bar)
Min. Burst
Pressure
Female
(bar)
Min. Burst
Pressure
Coupled
(bar)
Spillage
(ml)
04
1/4''
150
150
150
345
345
345
2
06
3/8''
150
150
150
350
350
350
3
08
1/2''
130
130
130
390
390
390
4
12
3/4''
130
130
130
350
350
350
14
16
1''
120
120
120
345
345
345
20
107 Series (Unvalved)
Dash Size
Body Size (Inch)
Max. Work PressureMale (bar)
Max. Work PressureFemale (bar)
Max. Work PressureCoupled (bar)
Min. Burst
Pressure
Male
(bar)
Min. Burst
Pressure
Female
(bar)
Min. Burst
Pressure
Coupled
(bar)
Spillage
(ml)
04
1/4''
275
275
275
980
980
980
0
06
3/8''
275
275
275
1000
1000
1000
0
08
1/2''
275
275
275
1000
1000
1000
0
12
3/4''
250
250
250
750
750
750
0
16
1''
200
200
200
560
560
560
0
Material:
Brass
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
/
Specifications:
Series Interchange:
PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL BRASS SERIES, STUCCHI SH SERIES
Valve Type:
Poppet
Connection:
Sleeve Retraction
Disconnection:
Sleeve Retraction
Connection Under Pressure:
Not Allowed

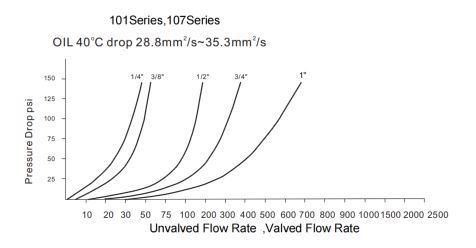

Pressure Drop

Pressure Drop
