276 Series | 4PV 4CPV Push-Pull ISO 7241 A Quick Couplings For Agriculture With Pressure Relief Microvalve (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | SAFEWAY S70 SERIES |
| Interchange | DNP PKK3 SERIES |
| Interchange | FASTER 4CPV SERIES |
| Interchange | FASTER 4PV SERIES |
| Interchange | FASTER 4NV SERIES |
| Update Time | Sep 12,2025 |
Detail Information
276 Series
Hydraulic Push-Pull Coupling (Steel)
ISO-7241-A, Poppet Valve, Pressure Eliminator Equipped
This EH series is interchangeable with SAFEWAY S70 SERIES, DNP PKK3 SERIES, FASTER 4CPV SERIES, FASTER 4PV SERIES, and FASTER 4NV SERIES. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Pressure eliminator equipped. Max residual pressure up to 250 bar.

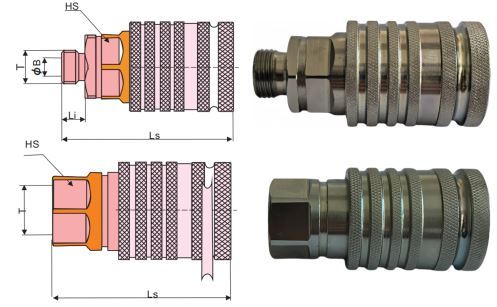

Female
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
HFSMC27612-M18X1.5-12L | 1/2'' | 73 | 11 | 12 | S27 | M18X1.5 |
HFSMC27612-M22X1.5-15L | 1/2'' | 74 | 12 | 15 | S27 | M22X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
HFSMC27612-M18X1.5-12S | 1/2'' | 74 | 12 | 10 | S27 | M18X1.5 |
HFSMC27612-M20X1.5-15S | 1/2'' | 74 | 12 | 12 | S27 | M20X1.5 |
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSFC27612-1/2" | 1/2'' | 70 | 12 | 10 | S27 | 1/2''BSPP (NPT) |
| HFSFC27612-3/4"UNF | 1/2'' | 70 | 12 | 10 | S27 | 3/4''-16UNF |

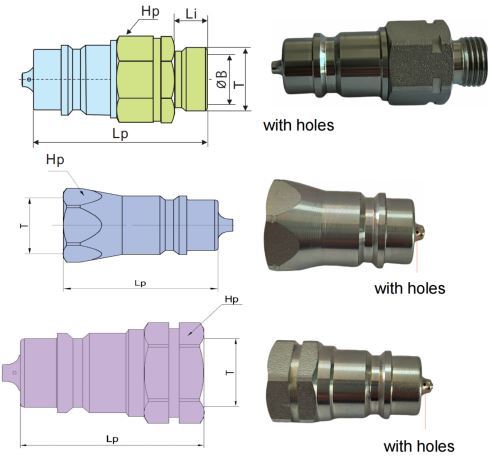

Male
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
HFSMP27612-M18X1.5-12L | 1/2'' | 58 | 11 | 12 | S27 | M18X1.5 |
HFSMP27612-M22X1.5-15L | 1/2'' | 59 | 12 | 15 | S27 | M22X1.5 |
S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request |
Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
HFSMP27612-M18X1.5-10S | 1/2'' | 74 | 12 | 10 | S27 | M18X1.5 |
HFSMP27612-M20X1.5-12S | 1/2'' | 74 | 12 | 12 | S27 | M20X1.5 |
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSFP27612-1/2" | 1/2'' | 46 | 12 | 10 | S27 | 1/2''BSPP (NPT) |
| HFSFP27612-3/4" UNF | 1/2'' | 46 | 12 | 10 | S27 | 3/4''-16UNF |
HFSFP26612-1/2" | 1/2'' | 44 | / | / | S27 | 1/2''BSPP (NPT) |
| HFSFP26612-3/4" UNF | 1/2'' | 44 | / | / | S27 | 3/4''-16UNF-2B |
HFSFP26612-7/8"UNF | 1/2'' | 44 | / | / | S27 | 7/8''-14UNF-2B |
HFSFP27512-1/2" | 1/2'' | 44 | / | / | S27 | 1/2''BSPP (NPT) |
HFSFP27512-3/4"UNF | 1/2'' | 44 | / | / | S27 | 3/4''-16UNF-2B |
HFSFP27512-7/8"UNF | 1/2'' | 44 | / | / | S27 | 7/8''-14UNF-2B |
