279 Series | 4SRPV Push-Pull Female Couplers for Agriculture Connectable With Both Halves Under Residual Pressure (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | FASTER 4SRPV SERIES |
| Interchange | PARKER RSD SERIES |
| Interchange | DNP PPK4 SERIES |
| Interchange | STAUFF UX SERIES |
| Interchange | VOSWINKEL UX SERIES |
| Update Time | Sep 12,2025 |
Detail Information
279 Series
Hydraulic Quick Coupling (Steel)
ISO-7241-A, Poppet Valve, Pressure Eliminator On Male & Female Both
This EH series is interchangeable with FASTER 4SRPV SERIES, PARKER RSD SERIES, DNP PPK4 SERIES, STAUFF UX SERIES and VOSWINKEL UX SERIES. Designed for direct installation into valve ports or rigid piping systems, this coupling series meets stringent ISO 7241-1 Series A standards while incorporating critical safety features. The innovative breakaway function provides essential protection against equipment damage by automatically disconnecting the male coupling component when subjected to accidental tractor pull forces, effectively preventing hose rupture. This safety mechanism ensures operational reliability in demanding agricultural and industrial applications where unexpected tension may occur. Connection under pressure on both the male and female sides, with maximum residual pressure up to 250 bar. Max Flow rate is 200 L/min.

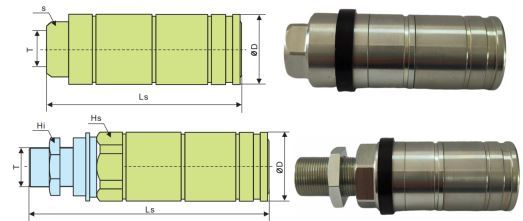

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Standard Type | D(mm) | Hs(mm) | Ls(mm) | T |
HFSFC27912-1/2G | 1/2'' | DIN 3852-2 | 38 | 27 | 107.2 | 1/2" BSPP |
HFSFC27912 -1/2NPT | 1/2'' | DIN 3852-2 | 38 | 27 | 107.2 | 1/2" NPT |
HFSFC27912 -3/4UNF | 1/2'' | SAE J 1926-1 | 38 | 32 | 107.2 | 3/4"-16UNF-2B |
HFSFC27912 -7/8UNF | 1/2'' | SAE J 1926-1 | 38 | 32 | 107.2 | 7/8"-14UNF-2B |
HFSMC27912 -M18X1.5 | 1/2'' | ISO 8434-1-L | 38 | 32 | 113.2 | M18X1.5-12L |
HFSMC27912 -M22X1.5 | 1/2'' | ISO 8434-1-L | 38 | 32 | 113.2 | M22X1.5-15L |
HFSMC27912 -M20X1.5 | 1/2'' | ISO 8434-1-S | 38 | 32 | 113.2 | M20X1.5-12S |
HFSMC27912 -M24X1.5 | 1/2'' | ISO 8434-1-S | 38 | 32 | 113.2 | M24X1.5-16S |
HFSMC27912 -3/4UNF | 1/2'' | ISO 11926-3 | 38 | 32 | 131.5 | 3/4"-16UNF-2A |
HFSMC27912 -7/8UNF | 1/2'' | ISO 11926-3 | 38 | 32 | 133.5 | 7/8"-14UNF-2A |
HFSMC27912 -3/4UNF | 1/2'' | ISO 8434-2 | 38 | 32 | 131.5 | 3/4"-16UNF-2A |
HFSMC27912 -7/8UNF | 1/2'' | ISO 8434-2 | 38 | 32 | 133.5 | 7/8"-14UNF-2A |
HFSMC27912 -M22X1.5 | 1/2'' | DIN 7463 | 38 | 32 | 133.5 | M22X1.5 |

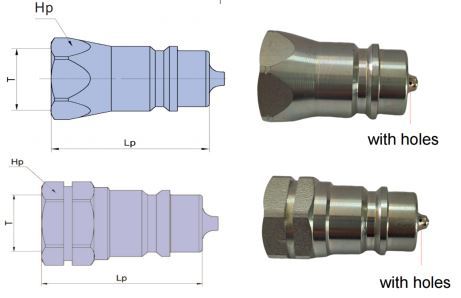

Male
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP26612-1/2" | 1/2'' | 44 | S27 | 1/2''BSPP (NPT) |
| HFSFP26612-3/4UNF | 1/2'' | 44 | S27 | 3/4"-16UNF-2B |
HFSFP26612-7/8UNF | 1/2'' | 44 | S27 | 7/8"-14UNF-2B |
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP27512-1/2" | 1/2'' | 44 | S27 | 1/2''BSPP (NPT) |
| HFSFP27512-3/4UNF | 1/2'' | 44 | S27 | 3/4"-16UNF-2B |
HFSFP27512-7/8UNF | 1/2'' | 44 | S27 | 7/8"-14UNF-2B |
