176 Series | CPVN Push-Pull Female Couplings For Agriculture, Panel Mounting (Steel)

Categories	Poppet (Interchange) Couplers
Interchange	FASTER CPVN SERIES
Update Time	Sep 12,2025

Detail Information

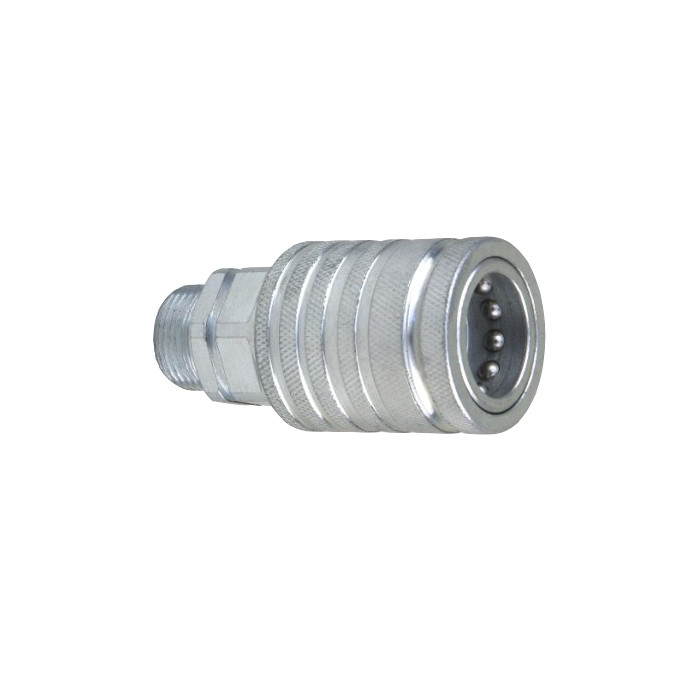

176 Series

Hydraulic Push-Pull Female Coupling (Steel)

Poppet Valve, 3/8''Body

This EH series is interchangeable with FASTER CPVN SERIES. Steel Product. Panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	Hs(mm)	T
HFSFC17638- 3/8NPTF	3/8''	70	S24	NPTF 3/8" FEMALE

Accessories

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
06	3/8''	300	300	300	1200	1200	1500	1.3

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	FASTER CPVN SERIES
	Valve Type:	Poppet
	Connection:	Push to Connect
	Disconnection:	Pull to Disconnect
	Connection Under Pressure:	Not Allowed
