Home / All / Poppet (Interchange) Couplers / 175 Series | AGRI NV ANV ZINC-NICKEL ISO 7241 A Quick Couplings With Poppet Valve (Steel)

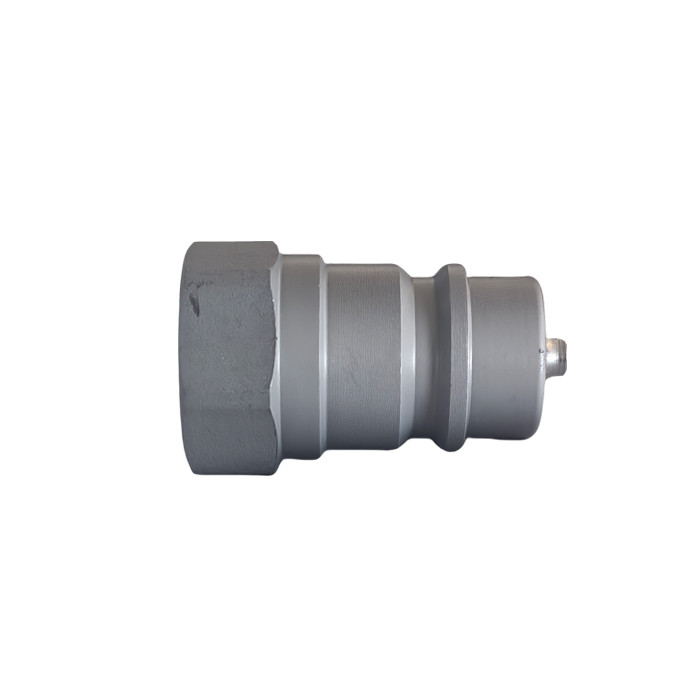

175 Series | AGRI NV ANV ZINC-NICKEL ISO 7241 A Quick Couplings With Poppet Valve (Steel)

Categories	Poppet (Interchange) Couplers
Interchange	FASTER AGRI ZINC-NICKEL SERIES
Interchange	FASTER NV ZINC-NICKEL SERIES
Interchange	FASTER ANV ZINC-NICKEL SERIES
Update Time	Sep 12,2025

Detail Information

175 Series

Hydraulic Quick Coupling (Steel)

ISO-7241-A, ZINC-NICKEL, Poppet Valve

This EH series is interchangeable with FASTER AGRI ZINC-NICKEL SERIES, FASTER NV ZINC-NICKEL SERIES, and FASTER ANV ZINC-NICKEL SERIES. Steel Product. The 175 series is compatible with ISO 7241-1 -A standards. Constructed from steel with zinc-nickel plating. It is widely used in hydraulic systems, particularly in agricultural and industrial applications.

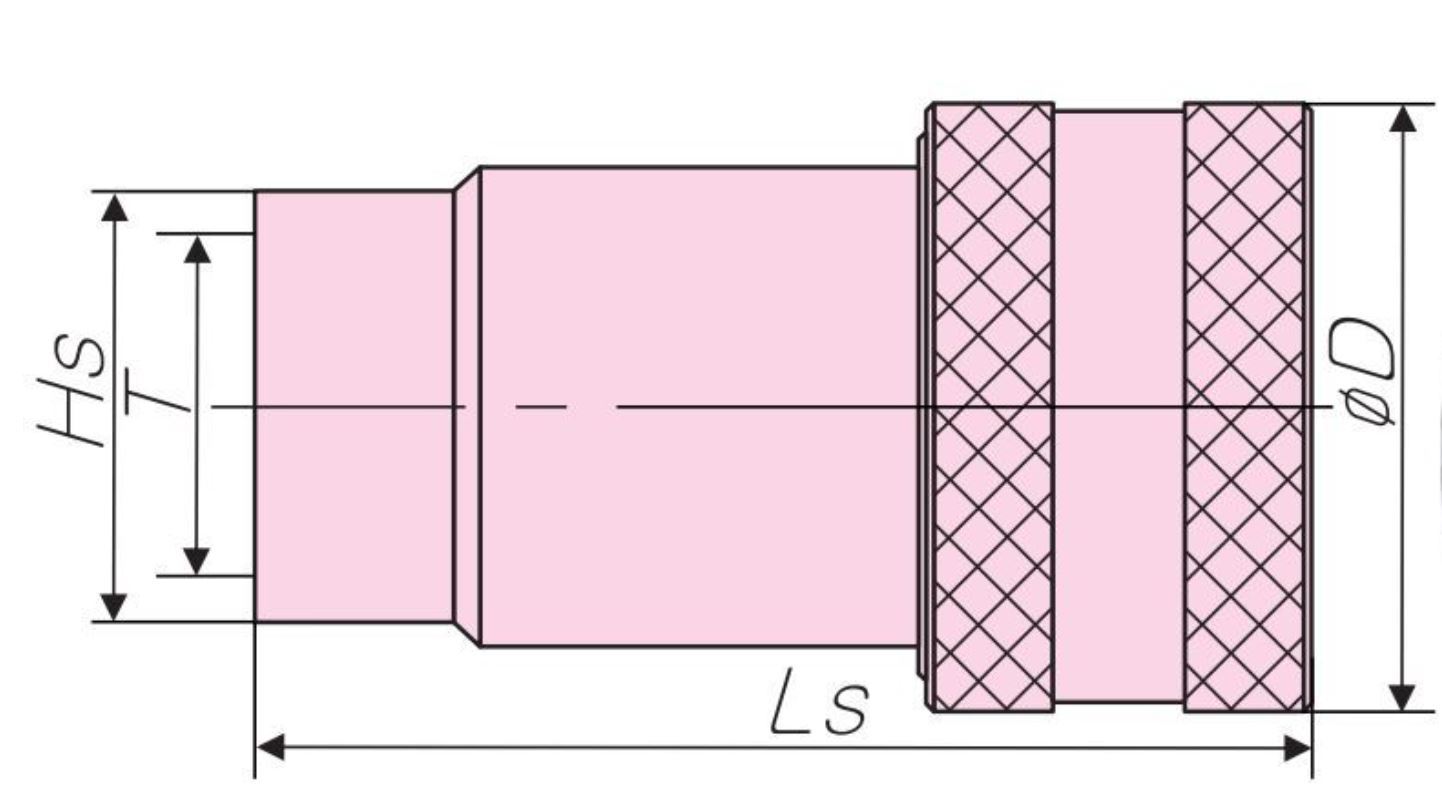

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	D(mm)	Ls(mm)	Hs(mm)	T
HFSFC17514-G1/4	1/4''	25	47	S19	BSPP 1/4" FEMALE
HFSFC17538-G3/8	3/8''	31	57	S22	BSPP 3/8" FEMALE
HFSFC17512-G1/2	1/2''	38	66	S27	BSPP 1/2" FEMALE
HFSFC17534-G3/4	3/4''	48	82.5	S34	BSPP 3/4" FEMALE
HFSFC17510-G1	1''	54	97	S41	BSPP 1" FEMALE
HFSFC175114- G1-1/4	1-1/4''	70	117	S50	BSPP 1-1/4" FEMALE
HFSFC175112- G1-1/2	1-1/2''	84	133.5	S60	BSPP 1-1/2" FEMALE
HFSFC17520-G2	2''	100	160	S75	BSPP 2" FEMALE

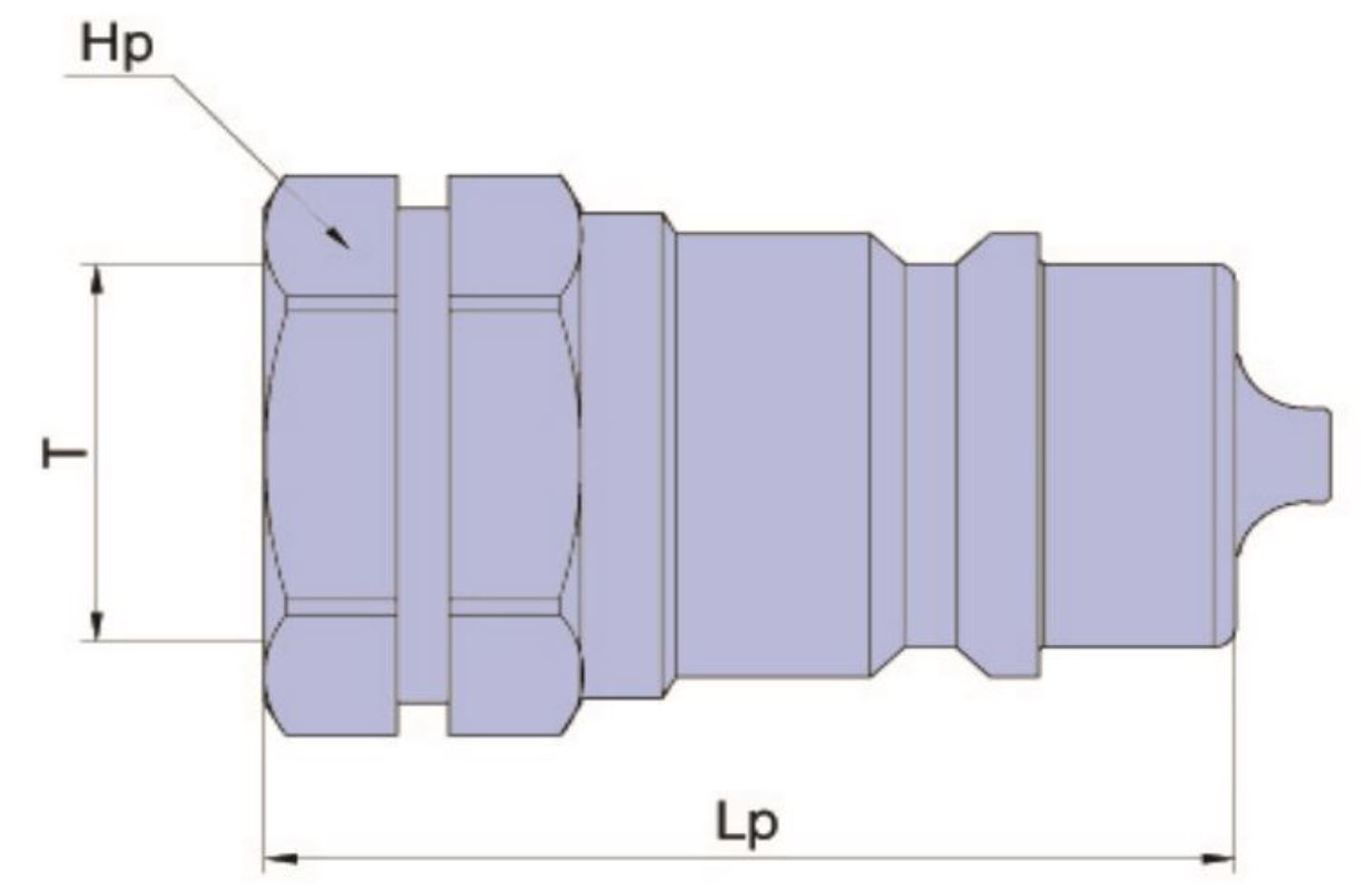

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSFP17514-G1/4	1/4''	35	S19	BSPP 1/4" FEMALE
HFSFP17538-G3/8	3/8''	39	S22	BSPP 3/8" FEMALE
HFSFP17512-G1/2	1/2''	46	S27	BSPP 1/2" FEMALE
HFSFP17534-G3/4	3/4''	55	S34	BSPP 3/4" FEMALE
HFSFP17510-G1	1''	63	S41	BSPP 1" FEMALE
HFSFP175114- G1-1/4	1-1/4''	75	S50	BSPP 1-1/4" FEMALE
HFSFP175112- G1-1/2	1-1/2''	83	S60	BSPP 1-1/2" FEMALE
HFSFP17520-G2	2''	100	S75	BSPP 2" FEMALE

Accessories

Dash Size	ISO Size	Art. No. Dust Plug for Coupler	Art. No. Dust Cap for Plug	Material
04	6.3	ISO-A-1/4-P-P	ISO-A-1/4-C-P	PVC
06	10	ISO-A-3/8-P-P	ISO-A-3/8-C-P	PVC
08	12.5	ISO-A-1/2-P-P	ISO-A-1/2-C-P	PVC
12	20	ISO-A-3/4-P-P	ISO-A-3/4-C-P	PVC
16	25	ISO-A-1-P-P	ISO-A-1-C-P	PVC

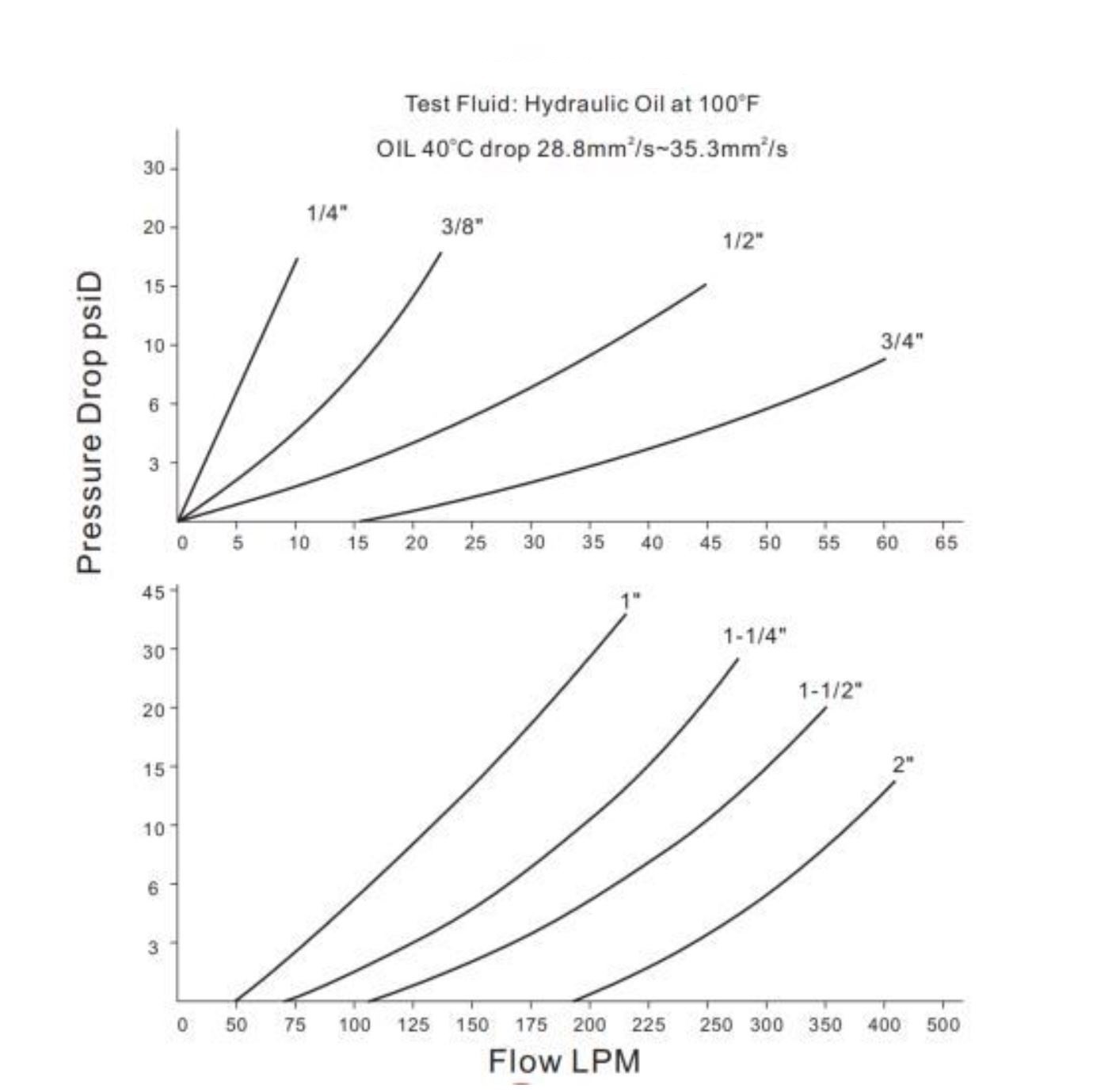

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
04	1/4''	350	350	350	1400	1400	1400	0.5
06	3/8''	315	315	315	1260	1260	1260	1.1
08	1/2''	250	250	250	1000	1000	1000	1.8
12	3/4''	250	250	250	1000	1000	1000	8
16	1''	230	230	230	920	920	920	/
20	1-1/4''	230	230	230	920	920	920	/
24	1-1/2''	180	180	180	720	720	720	/
32	2''	130	130	130	520	520	520	/

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 1000 (ZnNi)
Specifications:	Series Interchange:	FASTER AGRI ZINC-NICKEL SERIES FASTER NV ZINC-NICKEL SERIES FASTER ANV ZINC-NICKEL SERIES
	Valve Type:	Poppet
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
