126 Series | CNV CPV PV ZINC-NICKEL Push-Pull ISO 7241 A Quick Couplings For Agriculture (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | FASTER CNV ZINC-NICKEL SERIES |
| Interchange | FASTER CPV ZINC-NICKEL SERIES |
| Interchange | FASTER PV ZINC-NICKEL SERIES |
| Update Time | Sep 12,2025 |
Detail Information
126 Series
Hydraulic Push-Pull Coupling, ZINC-NICKEL (Steel)
ISO-7241-A, 1/2'' Body, Poppet Valve, ISO8434-1
This EH series is interchangeable with FASTER CNV ZINC-NICKEL SERIES, FASTER CPV ZINC-NICKEL SERIES, and FASTER PV ZINC-NICKEL SERIES. Steel Product. 1/2'' Body ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.

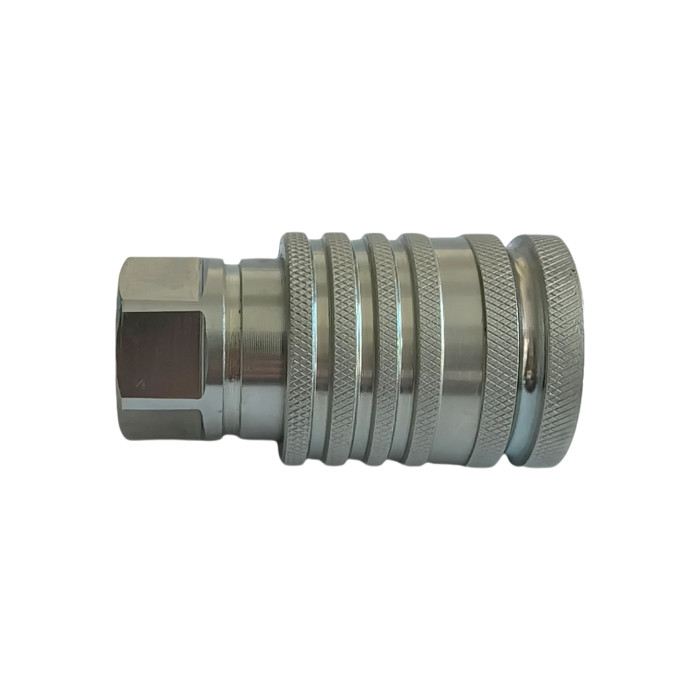

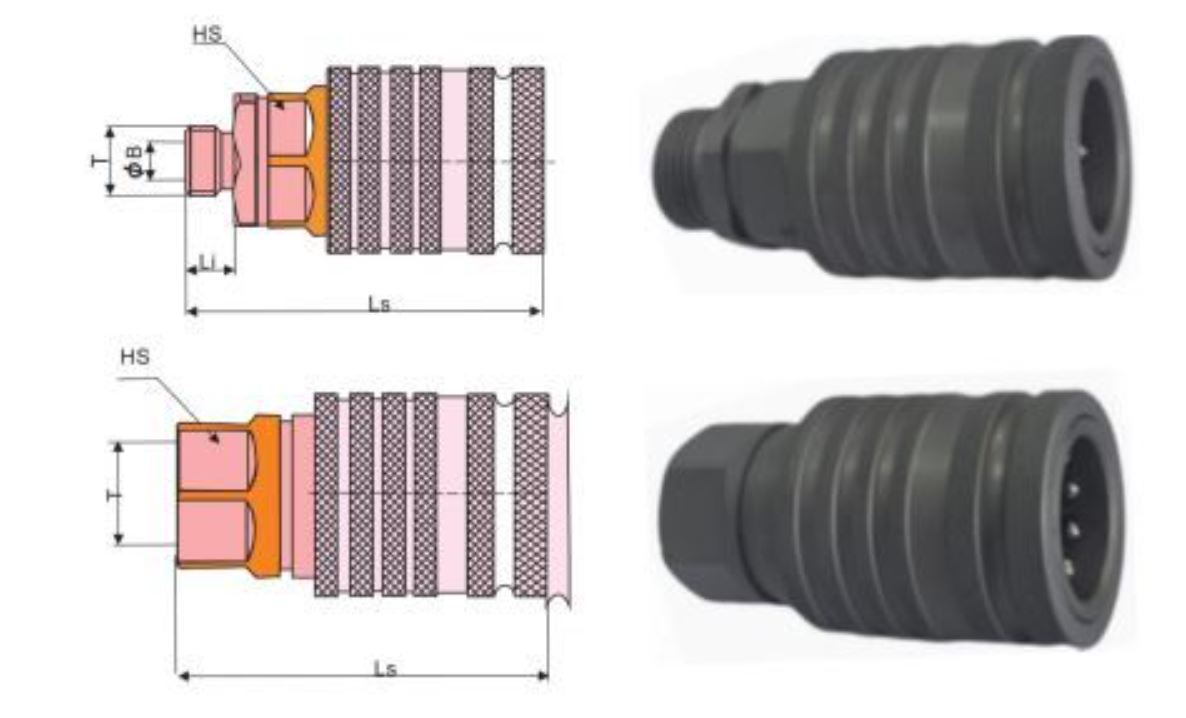

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | T |
HFSFC12612-M18X1.5-12L | 1/2'' | 62.3 | S27 | M18x1,5 MALE 12L |
HFSFC12612-M22X1.5-15L | 1/2'' | 63.3 | S27 | M22x1,5 MALE 15L |
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | T |
| HFSFC12612-1/2G | 1/2'' | 66 | S27 | BSPP 1/2" FEMALE |

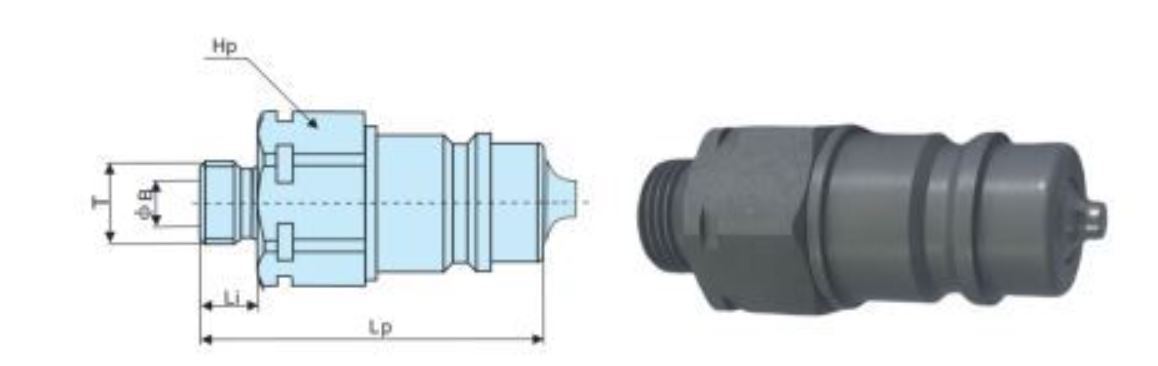

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
HFSFP12612-M18X1.5-12L | 1/2'' | 57 | S27 | M18x1,5 MALE 12L |
HFSFP12612-M22X1.5-15L | 1/2'' | 57 | S27 | M22x1,5 MALE 15L |
