63 Series | HNVN Standard Quick Couplings For Japanese Market (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | FASTER HNVN SERIES |
| Update Time | Sep 12,2025 |
Detail Information
63 Series
Standard Hydraulic Quick Coupling For JAPANESE MARKET (Steel)
Poppet Valve
This EH series is interchangeable with the FASTER HNVN SERIES. Steel Product. Standard couplings for industrial applications, interchangeable for the Japanese market.

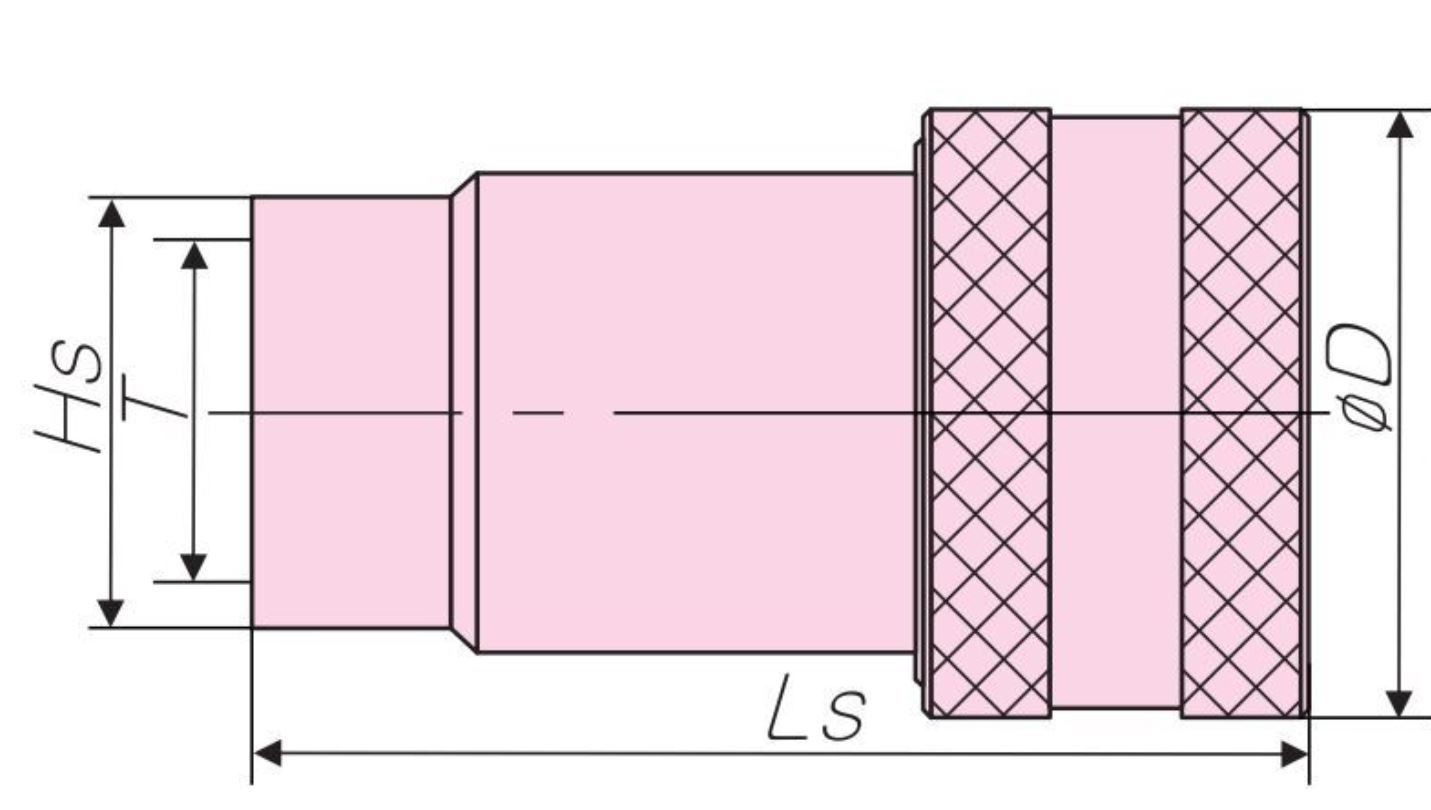

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6314- G1/4 | 1/4'' | 51 | 28.2 | S19 | BSPP 1/4" FEMALE |
| HFSFC6314- Rc1/4 | 1/4'' | 51 | 28.2 | S19 | Rc 1/4 FEMALE (JPT) |
HFSFC6338- G3/8 | 3/8'' | 64 | 35 | S24 | BSPP 3/8" FEMALE |
HFSFC6338- Rc3/8 | 3/8'' | 64 | 35 | S24 | Rc 3/8 FEMALE (JPT) |
HFSFC6312- G3/4 | 1/2'' | 71 | 44 | S30 | BSPP 3/4" FEMALE |
HFSFC6312- Rc1/2 | 1/2'' | 71 | 44 | S30 | Rc 1/2 FEMALE (JPT) |

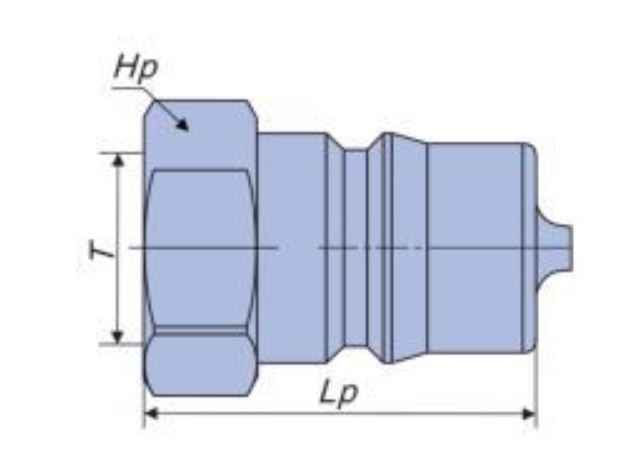

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP6314-G1/4 | 1/4'' | 33 | S19 | BSPP 1/4" FEMALE |
| HFSFP6314-Rc1/4 | 1/4'' | 33 | S19 | Rc 1/4 FEMALE (JPT) |
HFSFP6338-G3/8 | 3/8'' | 39 | S22 | BSPP 3/8" FEMALE |
HFSFP6338-Rc3/8 | 3/8'' | 39 | S22 | Rc 3/8 FEMALE (JPT) |
HFSFP6312-G3/4 | 1/2'' | 44 | S27 | BSPP 3/4" FEMALE |
HFSFP6312-Rc1/2 | 1/2'' | 44 | S27 | Rc 1/2 FEMALE (JPT) |
Accessories
