166 Series | 2NV ISO 7241 A Shielded Quick Couplings, Poppet Valve (Steel)

Categories	Poppet (Interchange) Couplers
Interchange	FASTER 2NV SERIES
Update Time	Sep 12,2025

Detail Information

166 Series

Hydraulic Quick Coupling (Steel)

ISO-7241-A, Poppet Valve

This EH series is interchangeable with the FASTER 2NV SERIES. Steel Product. This standard agricultural coupling features a poppet valve with a shielded valve guide. This design is engineered to prevent accidental disconnections caused by sudden pressure surges or backflow. It is fully interchangeable with other couplings meeting the ISO 7241-1A standard.

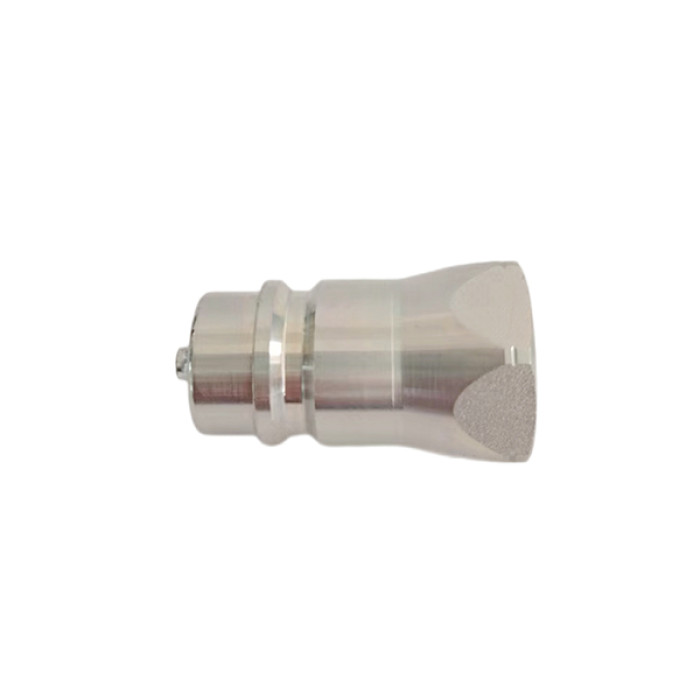

Male

Other Threads/Fitting Ends Are Available Upon Request

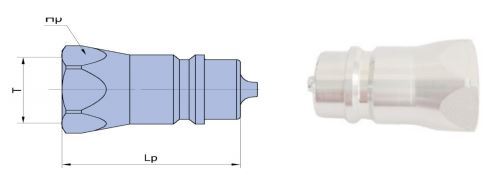

Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSFP16612-G1/2	1/2''	47	S27	BSPP 1/2" FEMALE
HFSFP16612-1/2NPTF	1/2''	47	S27	NPTF 1/2" FEMALE
HFSFP16612-3/4-16UNF-ORB	1/2''	47	S27	3/4"-16 UNF FEMALE ORB
HFSFP16612-7/8-14UNF-ORB	1/2''	52.5	S27	7/8"-14 UNF FEMALE ORB
HFSFP16612-G1/2-ORB	1/2''	47	S27	BSPP 1/2'' FEMALE ORB

Accessories

Color Can Be Customized

Dash Size	ISO Size	Art. No. Dust Plug for Coupler	Art. No. Dust Cap for Plug	Material
08	12.5	ISO-5675-1/2-P-P	ISO-5675-1/2-C-P	PVC

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
08	1/2''	250	250	250	1000	1000	1300	1.8

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	FASTER 2NV SERIES
	Valve Type:	Poppet
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
