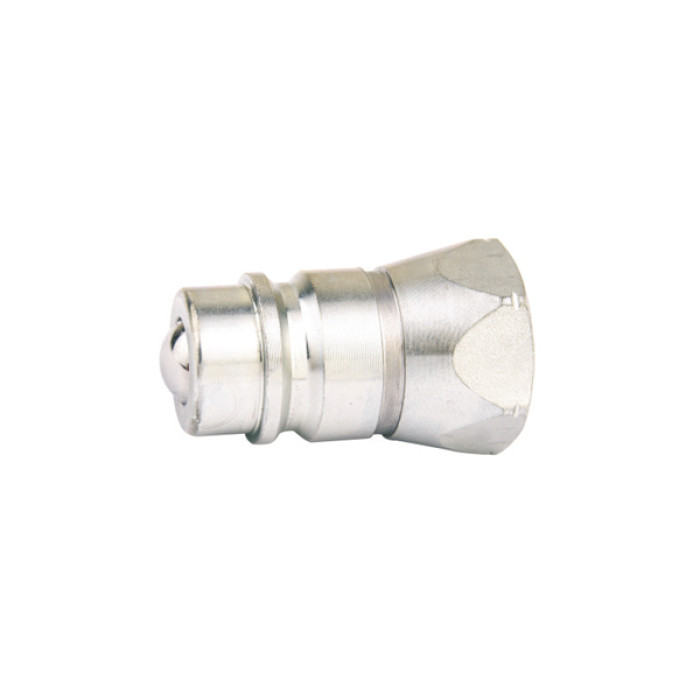

168 Series | 2NS ISO 7241 A Shielded Quick Couplings, Ball Valve (Steel)

Categories	Poppet (Interchange) Couplers
Interchange	FASTER 2NS SERIES
Update Time	Sep 12,2025

Detail Information

168 Series

Hydraulic Shielded Quick Coupling (Steel)

ISO-7241-A, Ball Valve

This EH series is interchangeable with the FASTER 2NS SERIES. Steel Product. General-purpose ball valve couplings with quick-disconnect functionality. This series maintains full interchangeability with ISO 7241-1 Series A standards. Designed for standard hydraulic applications requiring reliable shut-off performance.

Male

Other Threads/Fitting Ends Are Available Upon Request

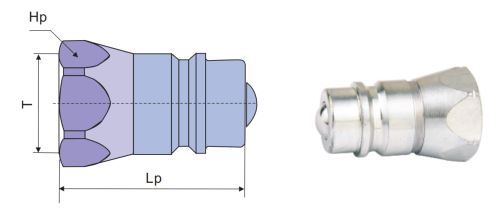

Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSFP16812- 1/2NPTF	1/2''	47	S27	1/2''NPTF

Accessories

Color Can Be Customized

Dash Size	ISO Size	Art. No. Dust Plug for Coupler	Art. No. Dust Cap for Plug	Material
08	12.5	ISO-5675-1/2-P-P	ISO-5675-1/2-C-P	PVC

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
08	1/2''	250	250	250	1000	1000	1300	1.8

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	FASTER 2NS SERIES
	Valve Type:	Ball
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
