71 Series | PS Push-pull ISO 7241 A Female Couplings For Agriculture, Panel Mounting, Ball Valve (Steel)

Categories	Poppet (Interchange) Couplers
Interchange	FASTER PS SERIES
Update Time	Sep 12,2025

Detail Information

71 Series

Hydraulic Push-Pull Coupling (Steel)

Panel Mounting, ISO-7241-A, Ball Valve

This EH series is interchangeable with the FASTER PS SERIES. Ball Valve. Steel Product. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.

Female

Other Threads/Fitting Ends Are Available Upon Request

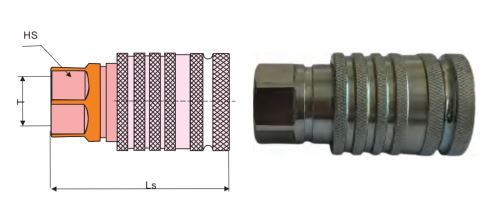

Art. No.	Body Size (inch)	Ls(mm)	Hs(mm)	T
HFSFC7112-G1/2	1/2''	66	S27	BSPP 1/2" FEMALE

Accessories

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
08	1/2''	250	250	250	1000	1000	1000	1.8

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	FASTER PS SERIES
	Valve Type:	Ball
	Connection:	Push to Connect
	Disconnection:	Pull to Disconnect
	Connection Under Pressure:	Not Allowed
