179 Series | 3NV 3CNV Female Couplings For Agriculture With Sleeve-Retraction Facilitator (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | FASTER 3NV SERIES |
| Interchange | FASTER 3CNV SERIES |
| Update Time | Sep 12,2025 |
Detail Information

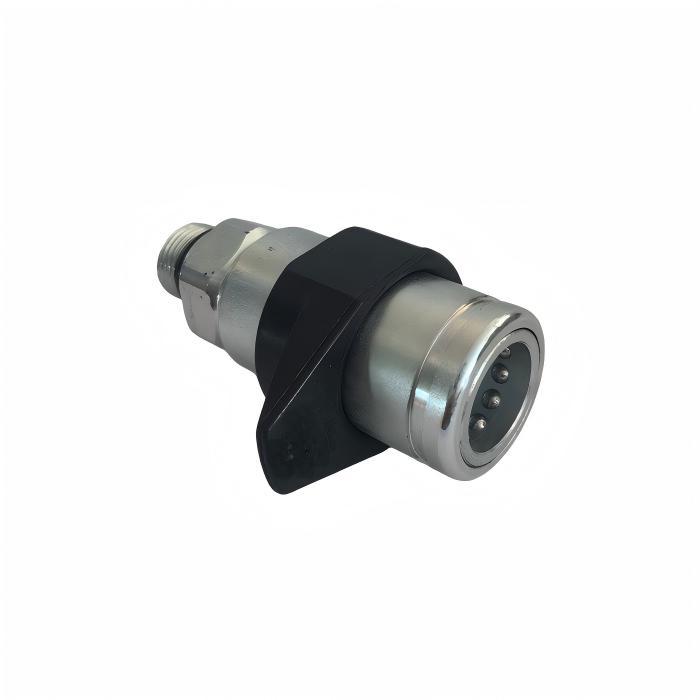

179 Series
Female Coupling For Agriculture With Sleeve Retraction Facilitator (Steel)
ISO-7241-A, Poppet Valve
This EH series is interchangeable with the FASTER 3NV SERIES and FASTER 3CNV SERIES. Steel Product. Female couplings connectable with the male part under residual pressure. A sleeve retraction mechanism facilitates easier engagement and disconnection. They are interchangeable according to the ISO 7241-1A standard.
Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||

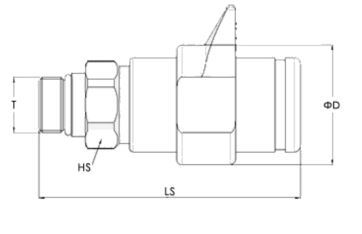

| Art. No. | Body Size (inch) | LS(mm) | D(mm) | HS(mm) | T |
| HFSFC17912-3/4''-16UNF-ORB | 1/2'' | 100 | 48 | S27 | 3/4"-16 UNF FEMALE ORB |
| HFSMC17912-7/8''-14UNF | 1/2'' | 102.6 | 48 | S32 | 7/8"-14 UNF MALE |
HFSFC17912-M22X1.5 | 1/2'' | 89 | 48 | S27 | M22x1,5 MALE |
HFSFC17912-13/16''-16UN-BULKHEAD-ORFS | 1/2'' | 109 | 48 | S27 | 13/16"-16 UN MALE BULKHEAD ORFS |
HFSFC17912-M22X1.5-BULKHEAD-15L | 1/2'' | 100 | 48 | S27 | M22x1.5 MALE BULKHEAD SHORT 15L |
