Home / All / Poppet (Interchange) Couplers / 679 Series | 6DNPV Push-Pull Female Couplings for Agriculture Connectable with Both Halves Under Residual Pressure. The Male Half Can Get Manually Disconnected Under Residual Pressure Up To 250 bar. (Steel)
679 Series | 6DNPV Push-Pull Female Couplings for Agriculture Connectable with Both Halves Under Residual Pressure. The Male Half Can Get Manually Disconnected Under Residual Pressure Up To 250 bar. (Steel)
| Categories | Poppet (Interchange) Couplers |
|---|---|
| Interchange | FASTER 6DNPV SERIES |
| Update Time | Sep 12,2025 |
Detail Information
679 Series

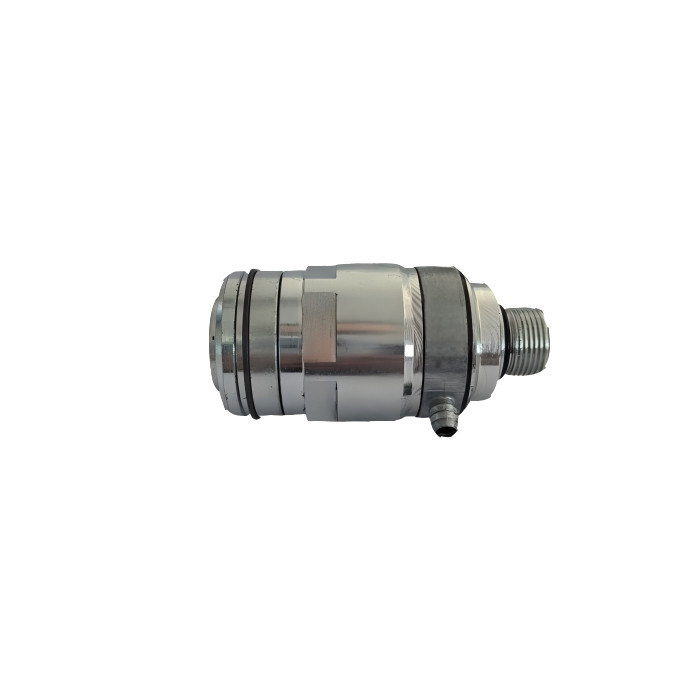

Hydraulic Push-Pull Quick Coupling (Steel)
ISO-7241-A, Poppet Valve, Connectable with Both Halves Under Residual Pressure
This EH series is interchangeable with the FASTER 6DNPV SERIES. Steel Product. Compliant with ISO 7241-1A, this series can be screwed directly into valve ports or rigid piping. It features a breakaway safety function: under excessive force, such as unintentional tractor pull, the coupling halves disconnect cleanly to prevent hose rupture and environmental spills. The male half can get manually disconnected under residual pressure up to 250 bar.
Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||

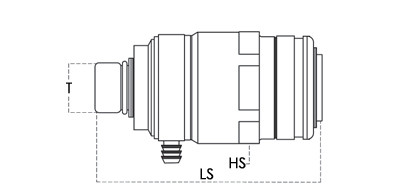

| Art. No. | Body Size (inch) | HS(mm) | LS(mm) | T |
HFSMC67912- M22X1.5-15L-A | 1/2'' | S46 | 101.7 | M22x1,5 MALE |
HFSMC67912- M22X1.5-15L-B | 1/2'' | S46 | 101.7 | M22x1,5 MALE |
Art. No. ending with A has a single oil collecting port;
Art. No. ending with B has double oil collecting ports;
