162 Series | CFPV Push-Pull Female Couplings for Agriculture (Steel)

Categories	Poppet (Interchange) Couplers
Interchange	FASTER CFPV SERIES
Update Time	Sep 12,2025

Detail Information

162 Series

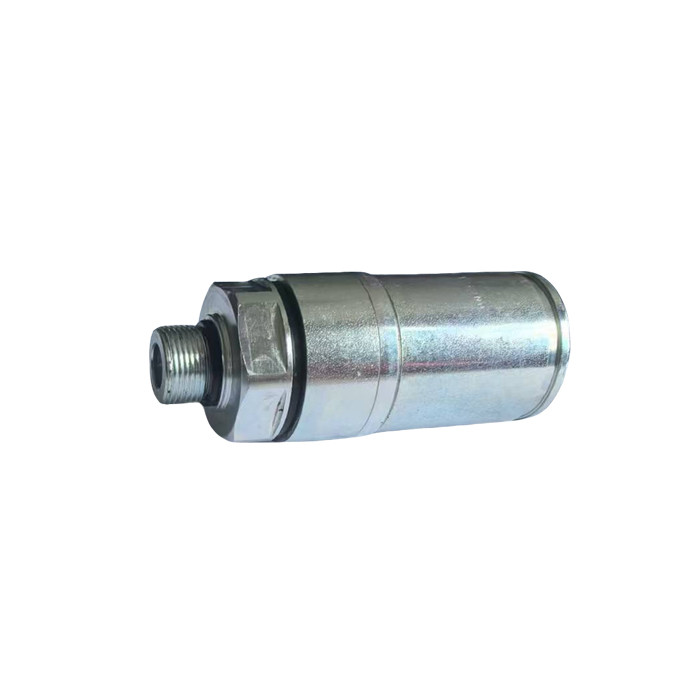

Hydraulic Push-Pull Female Couplings For Agriculture (Steel)

ISO-7241-A, Poppet Valve

This EH series is interchangeable with the FASTER CFPV SERIES. Steel Product. This ISO 7241-1-A compliant series is designed for direct threading into valve ports or rigid pipe systems. It incorporates a safety breakaway feature that prevents hose rupture during accidental snagging—such as from tractor movement—by cleanly separating at the male coupling, ensuring safe and environmentally responsible operation.

Female

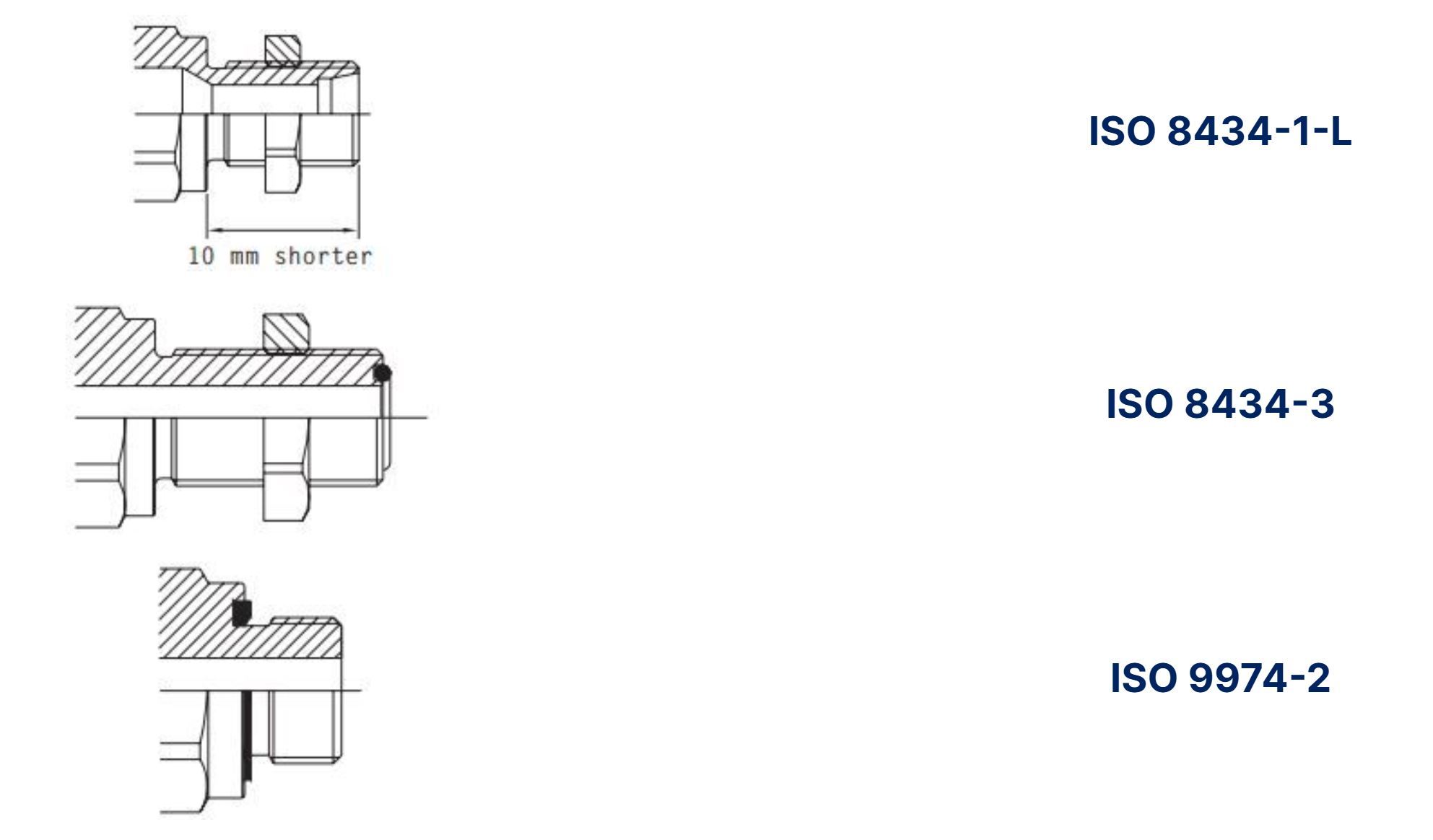

Other Threads/Fitting Ends Are Available Upon Request

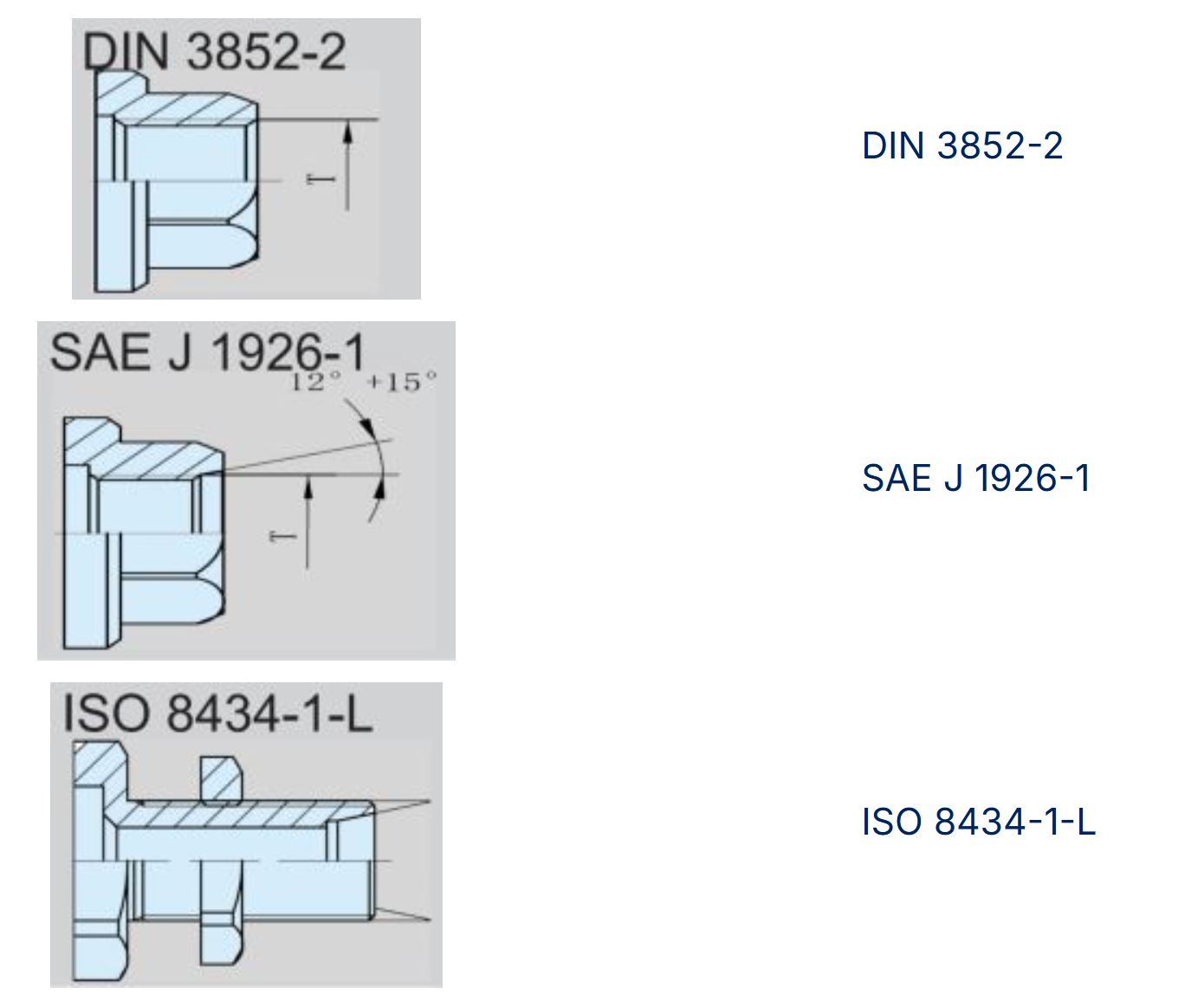

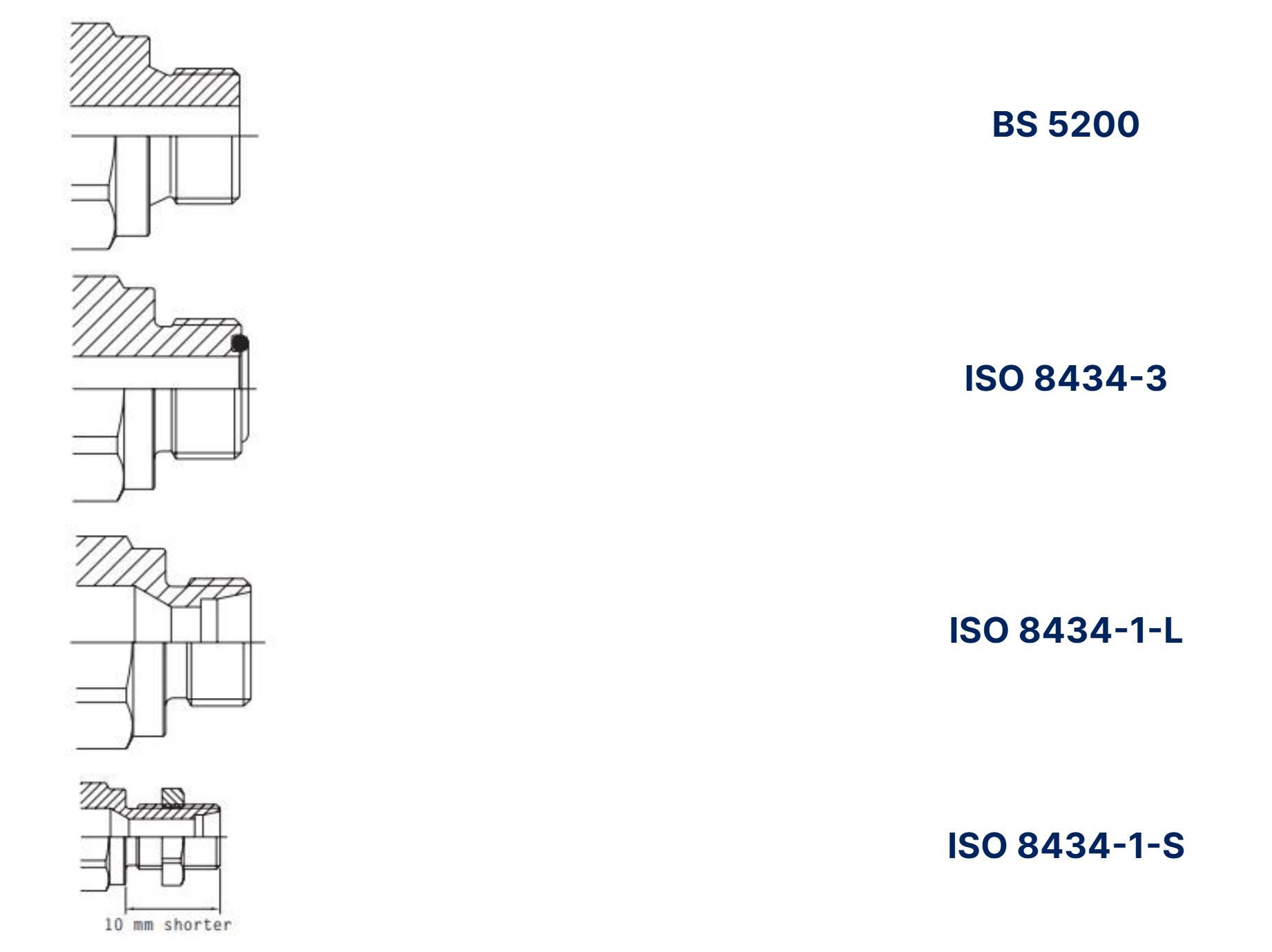

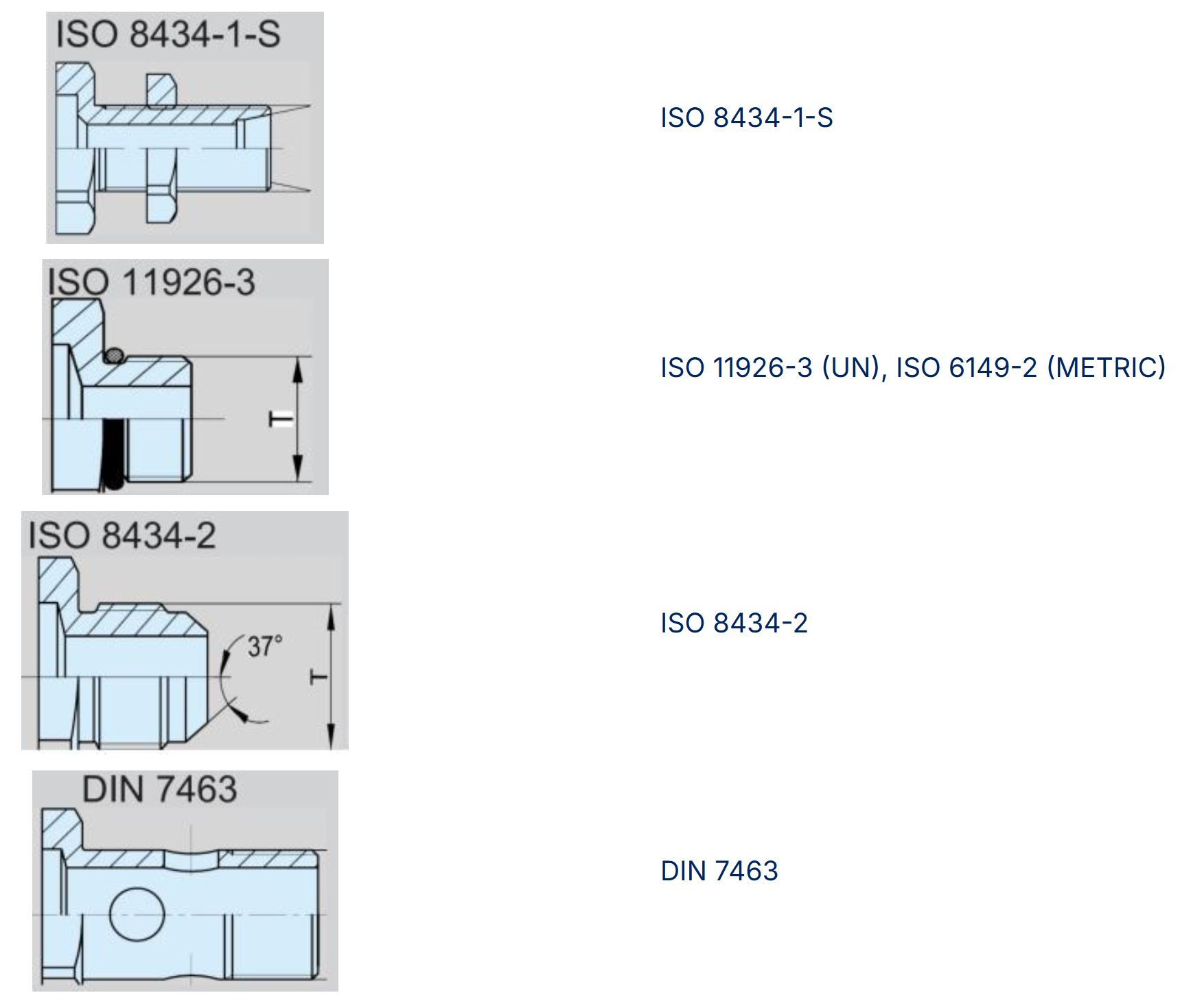

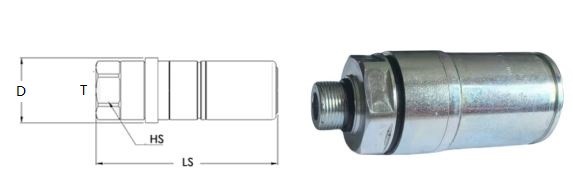

Art. No.	Body Size (inch)	Standard Type	D(mm)	Hs(mm)	Ls(mm)	T
HFSFC16214-1/4G-A	1/4''	DIN 3852-2	28	S24	83.5	BSPP 1/4" FEMALE
HFSMC16214-M14X1.5-A	1/4''	ISO 6149-2	28	S24	88	M14x1,5 MALE
HFSFC16238-1/4G-B	3/8''	DIN 3852-2	31	S27	85	BSPP 1/4" FEMALE
HFSMC16238-M12X1.5	3/8''	ISO 6149-2	31	S27	89.8	M12x1,5 MALE
HFSMC16238-M14X1.5-B	3/8''	ISO 6149-2	31	S27	89.8	M14x1,5 MALE
HFSMC16238-M14X1.5-C	3/8''	ISO 6149-2	31	S27	89.8	M14x1,5 MALE
HFSMC16238-M14X1.5-8L-BULKHEAD	3/8''	ISO 8434 -1-1L	31	S27	98.3	M14x1,5 MALE BULKHEAD SHORT 8L
HFSMC16238-M14X1.5-D	3/8''	ISO 6149-2	31	S28	126.5	M14x1,5 MALE
HFSMC16238-M14X1.5-E	3/8''	ISO 6149-2	31	S28	126.5	M14x1,5 MALE
HFSFC16212-M22X1.5-ORB	1/2''	SAE J 1926-1	42	S34	110.2	M22x1,5 FEMALE ORB
HFSMC16212-M22X1.5	1/2''	ISO 6149-2	42	S32	110.7	M22x1,5 MALE
HFSFC16234-3/4G	3/4''	DIN 3852-2	48	S42	116.5	BSPP 3/4" FEMALE
HFSFC16234-M27X2-ORB	3/4''	SAE J 1926-1	48	S42	117.5	M27x2 FEMALE ORB
HFSMC16234-M22X1.5	3/4''	ISO 6149-2	48	S42	118	M22x1,5 MALE
HFSMC16234-M27X2	3/4''	ISO 6149-2	48	S42	121.5	M27x2 MALE
HFSMC16234-M30X2	3/4''	ISO 6149-2	48	S42	121.5	M30x2 MALE
HFSMC16234-M33X2	3/4''	ISO 6149-2	48	S42	122	M33x2 MALE
HFSMC16234-1-1/16''-12UN	3/4''	ISO 11926-3	48	S42	115.6	1-1/16"-12 UN MALE
HFSMC16234-1-7/16''-12UN-BULKHEAD-ORFS	3/4''	ISO 8434-3	48	S42	142.5	1 7/16" - 12 UN MALE BULKHEAD ORFS
HFSMC16234-1-3/16''-12UN-BULKHEAD-ORFS	3/4''	ISO 8434-3	48	S42	140.5	1 3/16" - 12 UN MALE BULKHEAD ORFS
HFSMC16234-1''-14UNS-BULKHEAD-ORFS	3/4''	ISO 8434-3	48	S42	141	1"-14 UNS MALE BULKHEAD ORFS
HFSMC16234-M26X1.5-18L-BULKHEAD-A	3/4''	ISO 8434 -1-1L	48	S42	153.5	M26x1,5 MALE BULKHEAD 18L
HFSMC16234-M26X1.5-18L-BULKHEAD-B	3/4''	ISO 8434 -1-1L	48	S42	153.5	M26x1,5 MALE BULKHEAD 18L
HFSMC16234-M26X1.5-18L-BULKHEAD-C	3/4''	ISO 8434 -1-1L	48	S42	153.5	M26x1,5 MALE BULKHEAD 18L
HFSMC16234-M30X2-22L-BULKHEAD	3/4''	ISO 8434 -1-1L	48	S42	134.5	M30x2 MALE BULKHEAD 22L
HFSMC16234-M36X2-28L-BULKHEAD	3/4''	ISO 8434 -1-1L	48	S42	143.6	M36x2 MALE BULKHEAD 28L
HFSMC16234-M26X1.5-18L-BULKHEAD	3/4''	ISO 8434 -1-1L	48	S42	153.5	M26x1,5 MALE BULKHEAD 18L
HFSMC16234-M30X2-20S-BULKHEAD	3/4''	ISO 8434-1-S	48	S42	144.5	M30x2 MALE BULKHEAD 20S
HFSMC16234-M36X2-25S-BULKHEAD	3/4''	ISO 8434-1-S	48	S42	138.5	M36x2 MALE BULKHEAD 25S
HFSMC16234-M42X2-30S-BULKHEAD	3/4''	ISO 8434-1-S	54	S50	151.5	M42x2 MALE BULKHEAD 30S
HFSMC16234-M36X2-28L-BULKHEAD	3/4''	ISO 8434 -1-1L	48	S42	133.5	M36x2 MALE BULKHEAD SHORT 28L

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
04	1/4''	250	250	250	100	100	100	0.6
06	3/8''	300	300	300	1200	1200	1400	1.3
08	1/2''	250	250	250	1000	1000	1000	2.0
12	3/4''	250	250	250	1000	1000	1100	5.0

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	FASTER CFPV SERIES
	Valve Type:	Poppet
	Connection:	Push to Connect
	Disconnection:	Pull to Disconnect
	Connection Under Pressure:	Not Allowed
