296 Series | APM Flat Face Quick Couplings, ISO 16028, Connection Under Pressure (Steel)

Categories	Flat Face Couplers
Interchange	STUCCHI APM SERIES
Interchange	PARKER FEC SERIES
Interchange	FASTER 3FFH SERIES
Interchange	DIXON HTE SERIES
Interchange	CEJN X64 SERIES
Interchange	DNP PLK4 SERIES
Interchange	SAFEWAY FFEC49 SERIES
Interchange	VOSWINKEL FU SERIES
Interchange	FASTER 3FFI SERIES
Update Time	Sep 12,2025

Detail Information

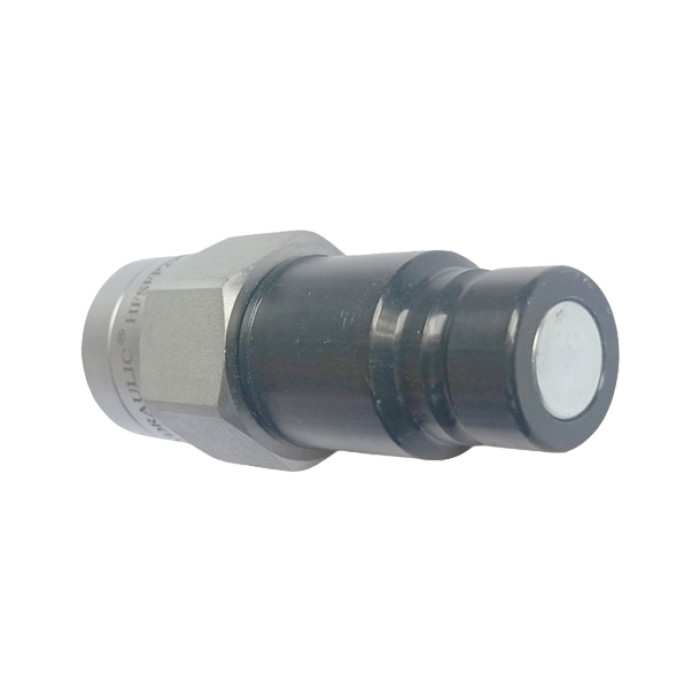

296 Series

Flat Face Coupling (Steel)

ISO-16028 Standard, Connect Under Pressure, Male Plug

This EH series is interchangeable with STUCCHI APM SERIES, PARKER FEC SERIES, FASTER 3FFH SERIES, FASTER 3FFI SERIES, DIXON HTE SERIES, CEJN X64 SERIES, DNP PLK4 SERIES, SAFEWAY FFEC49 SERIES, and VOSWINKEL FU SERIES. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.

Male

Other Threads/Fitting Ends Are Available Upon Request

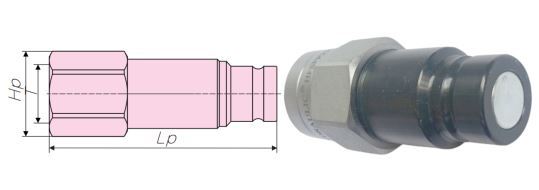

Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSFP29638-3/8"NPT	3/8''	80	S27	3/8"NPT
HFSFP29638-1/2"NPT	3/8''	82.5	S27	1/2"NPT
HFSFP29638-3/8"G	3/8''	80	S27	3/8"BSPP
HFSFP29638-1/2"G	3/8''	82.5	S27	1/2"BSPP
HFSFP29638-3/4"UNF	3/8''	80	S27	3/4"UNF-16
HFSFP29612-1/2"NPT	1/2''	91	S36	1/2"NPT
HFSFP29612-3/4"NPT	1/2''	93.5	S36	3/4"NPT
HFSFP29612-1/2"G	1/2''	91	S36	1/2"BSPP
HFSFP29612-3/4"G	1/2''	93.5	S36	3/4"BSPP
HFSFP29612-7/8"UNF	1/2''	91	S36	7/8"UNF-14
HFSFP29612-1-1/16"UN	1/2''	93.5	S36	1-1/16"UN-12
HFSFP29658-3/4"NPT	5/8''	95	S36	3/4"NPT
HFSFP29658-1-1/16"UN	5/8''	95	S36	1-1/16"UN-12
HFSFP29634-3/4"NPT	3/4''	109	S46	3/4"NPT
HFSFP29634-3/4"G	3/4''	109	S46	3/4"BSPP
HFSFP29634-1"NPT	3/4''	109	S46	1"NPT
HFSFP29634-1"G	3/4''	109	S46	1"BSPP
HFSFP29634-1-1/16"UN	3/4''	109	S46	1-1/16"UN-12
HFSFP29634-1-5/16"UN	3/4''	109	S46	1-5/16"UN-12
HFSFP29610-1"NPT	1''	122.5	S55	1"NPT
HFSFP29610-1"G	1''	122.5	S55	1"BSPP
HFSFP29610-1-1/4"NPT	1''	122.5	S55	1-1/4"NPT
HFSFP29610-1-1/4"G	1''	122.5	S55	1-1/4"BSPP
HFSFP29610-1-5/16"UN	1''	122.5	S55	1-5/16"UN-12
HFSFP29610-1-5/8"UN	1''	122.5	S55	1-5/8"UN-16

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)	Max. Residual Pressure (bar)
06	3/8''	350	/	350	1200	/	1000	0.008	300
08	1/2''	330	/	330	1200	/	1000	0.01	300
10	5/8''	330	/	330	1200	/	1000	0.02	250
12	3/4''	300	/	300	1000	/	800	0.02	250
16	1''	300	/	300	1000	/	800	0.03	200

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 1000 (ZnNi)
Specifications:	Series Interchange:	STUCCHI APM SERIES, PARKER FEC SERIES, CEJN X64 SERIES, FASTER 3FFH SERIES, FASTER 3FFI SERIES, DNP PLK4 SERIES, SAFEWAY FFEC49 SERIES, DIXON HTE SERIES, VOSWINKEL FU SERIES
	Valve Type:	Flat
	Connection:	Push to Connect
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Allowed Up To Work Pressure
