90 Series | Spare Part Kit / Accessories For Faster 4BD4FH Auxiliary Lines Block (Steel)
| Categories | Flat Face Couplers |
|---|---|
| Interchange | Faster 4BD4FH Spare Part Kit |
| Interchange | Faster 4BD4FH Accessories |
| Update Time | Sep 12,2025 |
Detail Information
90 Series

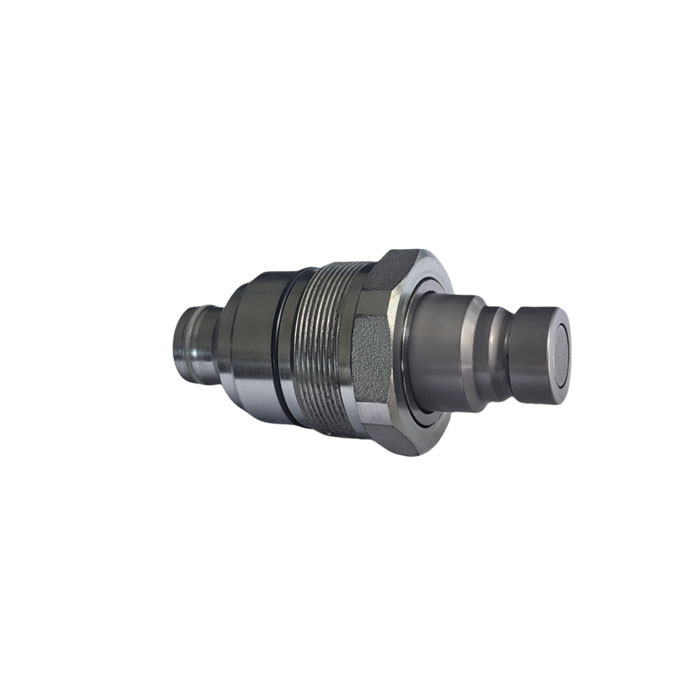

Spare Part Kit / Accessories For Faster 4BD4FH Auxiliary Lines Block (Steel)
This EH series is interchangeable with the Faster 4BD4FH Spare Part Kit and Faster 4BD4FH Accessories. Steel Product. This pioneering cast iron block was the first of its kind to enable the rapid connection and disconnection of attachments for skid steer loaders and similar construction machinery. It utilizes cartridges that incorporate the full benefits of flat face coupler series technology, including a decompression feature for safe coupling even with residual pressure on both sides of the circuit. The block accepts 3/8'' (MALE PLUG ONLY), 1/2", and 3/4" cartridges, with the larger size providing a higher flow capacity while maintaining the same compact footprint.

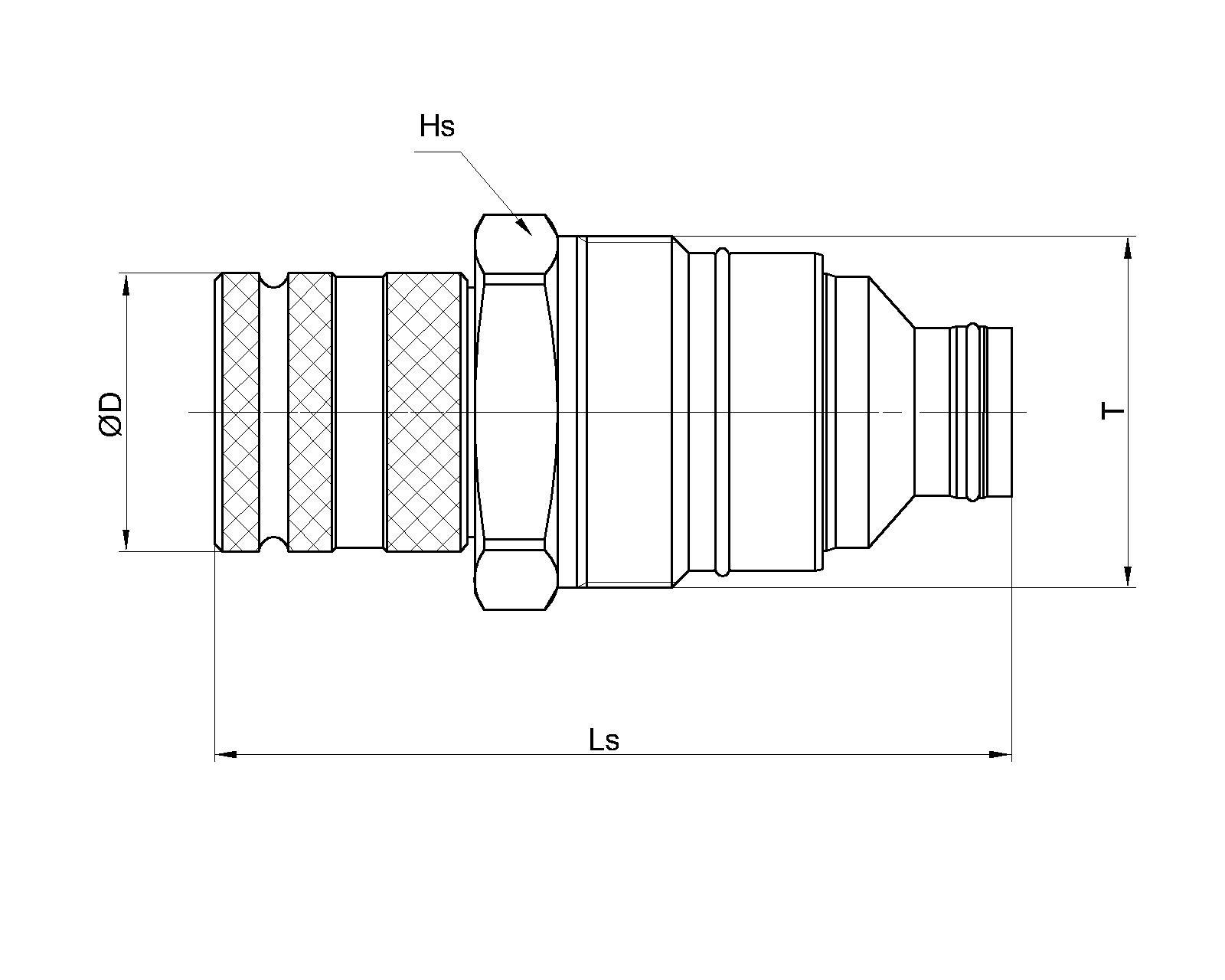

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9012-M48X1.5 | 1/2'' | 108.8 | 38 | S50 | M48X1.5 |
| HFSFC9034-M48X1.5 | 3/4'' | 128.5 | 48 | S50 | M48X1.5 |

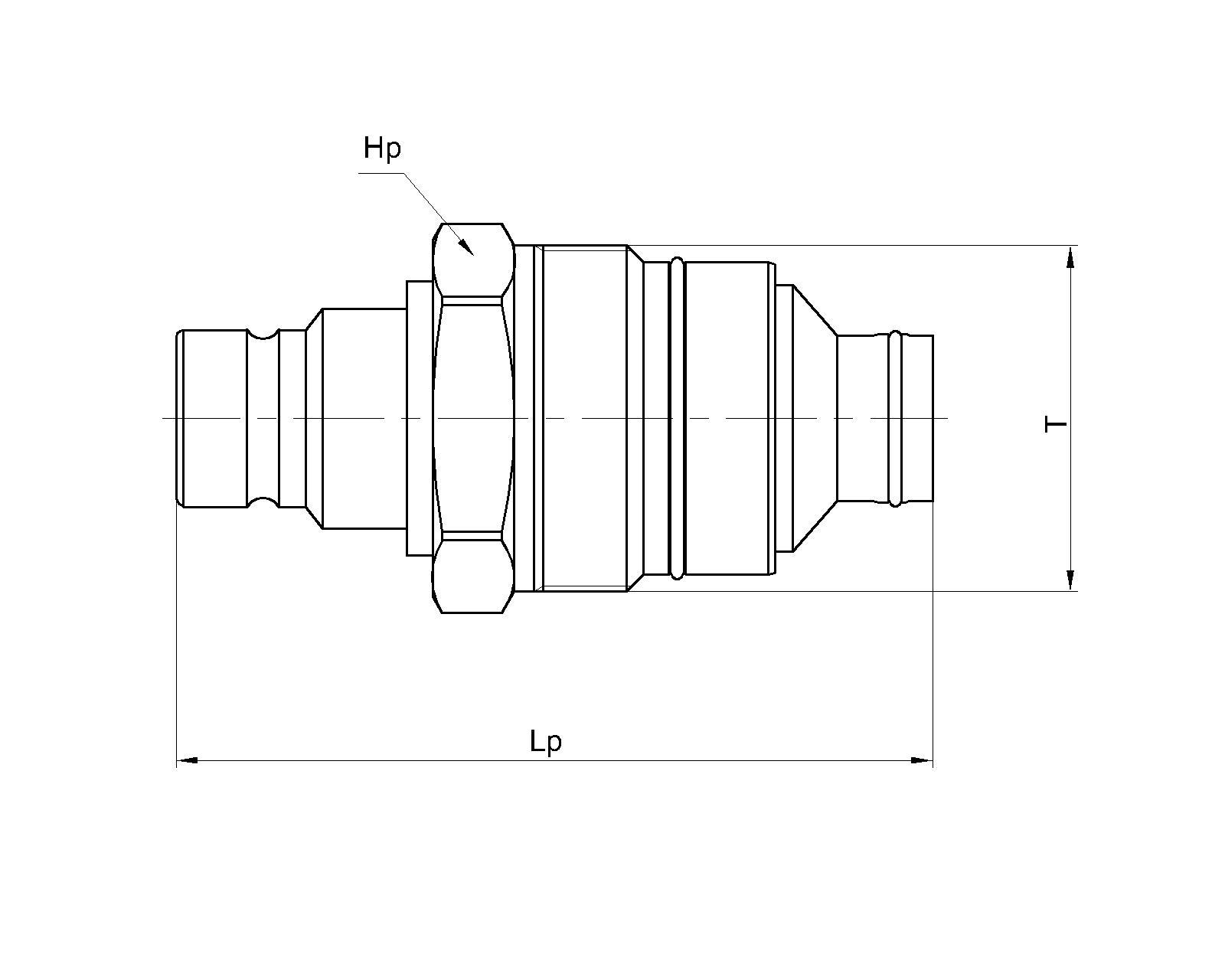

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9012-M48X1.5 | 1/2'' | 105 | S50 | M48X1.5 |
| HFSFP9034-M48X1.5 | 3/4'' | 140 | S50 | M48X1.5 |
HFSFP9038 | 3/8'' | 43.5 | S24 | M24X1.5 |
