Home / All / High / Ultra High 10000PSI+ Couplers / 85 Series | PARKER 3000 Enerpac Screw To Connect Quick Couplers 10000PSI (Steel)

85 Series | PARKER 3000 Enerpac Screw To Connect Quick Couplers 10000PSI (Steel)

Categories	High / Ultra High 10000PSI+ Couplers
Interchange	PARKER 3000 SERIES
Interchange	HANSEN WA56000 SERIES
Interchange	SAFEWAY S30 SERIES
Interchange	FASTER PVVM SERIES
Interchange	STUCCHI IV-HP SERIES
Interchange	DNP PVM SERIES
Interchange	VOSWINKEL HJ SERIES
Interchange	DIXON T SERIES
Update Time	Sep 12,2025

Detail Information

85 Series

PARKER 3000 High Pressure Screw-To-Connect Enerpac Coupling, 10000PSI (Steel)

Poppet Valve, ISO-14540

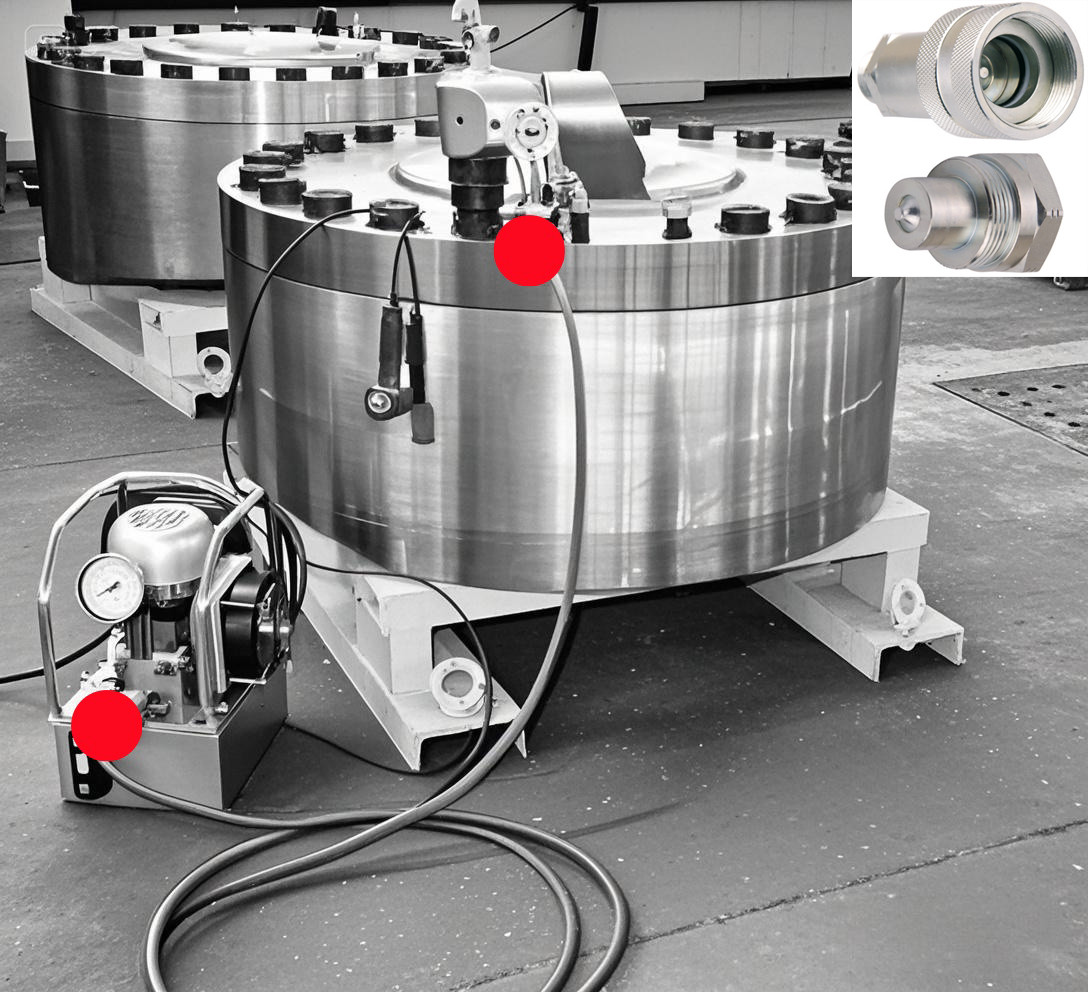

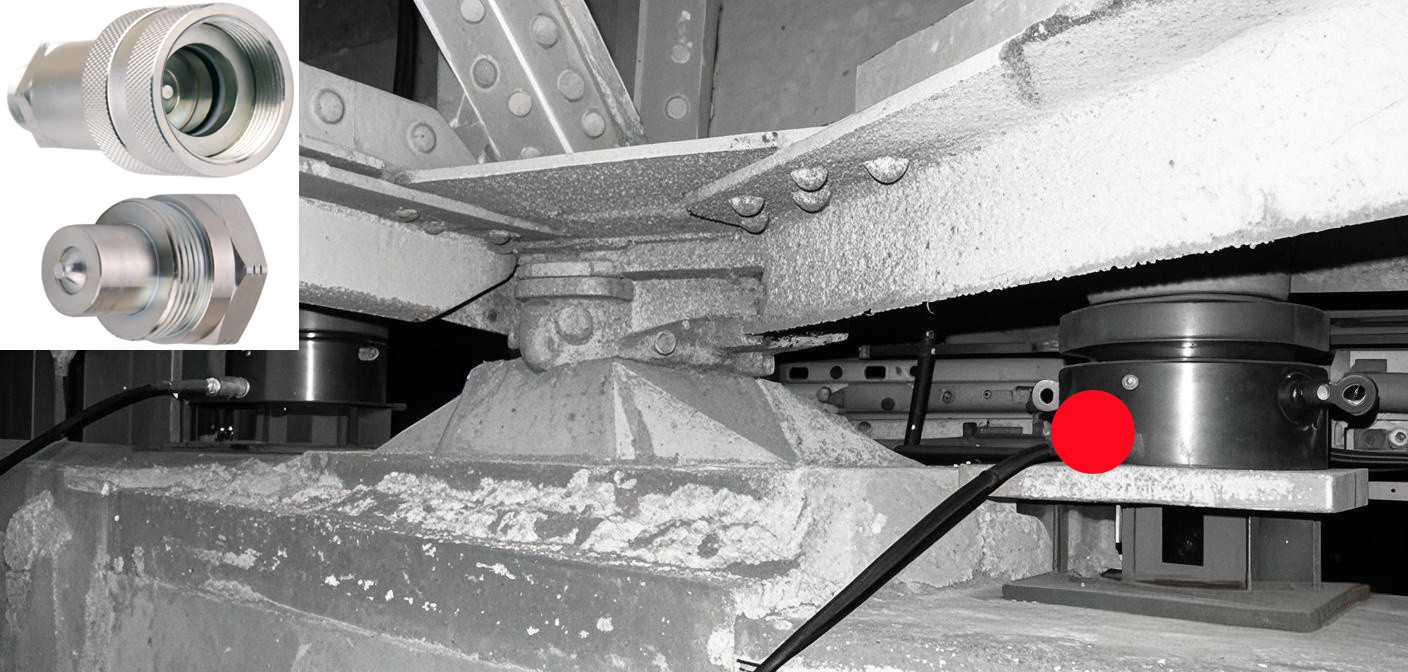

This EH series is interchangeable with PARKER 3000 SERIES, HANSEN WA56000 SERIES, SAFEWAY S30 SERIES, FASTER PVVM SERIES, STUCCHI IV-HP SERIES, DNP PVM SERIES, VOSWINKEL HJ SERIES, and DIXON T SERIES. Heavy-duty screw-on couplings engineered for extreme-pressure applications (bridge maintenance jacks, industrial hydraulics). Features a premium metal-to-metal poppet valve seal delivering industry-leading pressure performance. ISO 14540 compliant for guaranteed interchangeability.

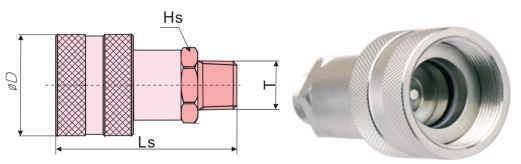

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	Hs(mm)	T
HFSMC8514-1/4"	1/4''	71	30	S22	1/4''NPTF
HFSMC8538-3/8"	3/8''	80	35	S22	3/8''NPTF

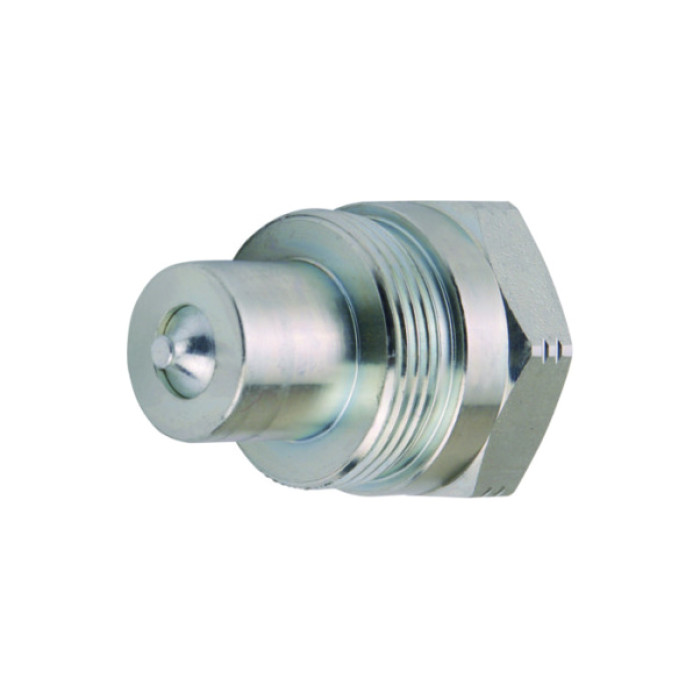

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	E(mm)	Hp(mm)	T
HFSFP8514-1/4"	1/4''	45	1-18UNS	S19	1/4''NPTF
HFSFP8538-3/8"	3/8''	40	1-3/16-16UN	S32	3/8''NPTF

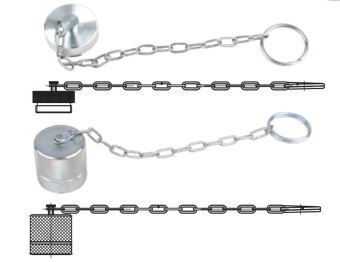

Accessories

High Pressure Screw-To-Connect Enerpac Coupling

Dash Size	ISO Size	Art. No. Dust Plug For Coupler	Art. No. Dust Cap For Plug	Material
04	6.3	ISO-14540-1/4-P-AL	ISO-14540-1/4-C-AL	Aluminum
06	10	ISO-14540-3/8-P-AL	ISO-14540-3/8-C-AL	Aluminum

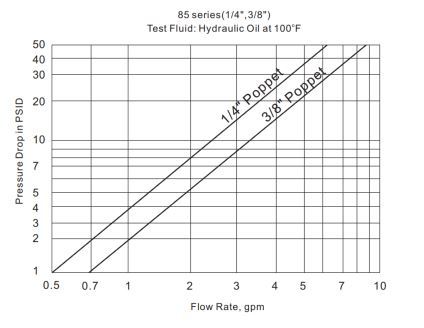

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
04	1/4''	720	720	720	2880	2880	2880	0.5
06	3/8''	720	720	720	2880	2880	2880	1

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	PARKER 3000 SERIES, HANSEN WA56000 SERIES, SAFEWAY S30 SERIES, FASTER PVVM SERIES, STUCCHI IV-HP SERIES, DNP PVM SERIES, VOSWINKEL HJ SERIES, DIXON T SERIES
	Valve Type:	Poppet
	Connection:	Screw to Connect
	Disconnection:	Unscrew to Disconnect
	Connection Under Pressure:	Allowed Residual
