151 Series | Parker TC Quick Coupling (Steel)

Categories	High / Ultra High 10000PSI+ Couplers
Interchange	PARKER TC SERIES
Update Time	Sep 12,2025

Detail Information

151 Series

High Pressure Coupling (Steel), 3/8'' Body Only, 10,000PSI

This EH series is interchangeable with PARKER TC SERIES. 151 Series is used in high pressure applications with hydraulic and mechanical shock. Available in 3/8'' size only. Widely used in hydraulic jacking and house moving equipment, construction equipment and railway maintenance.

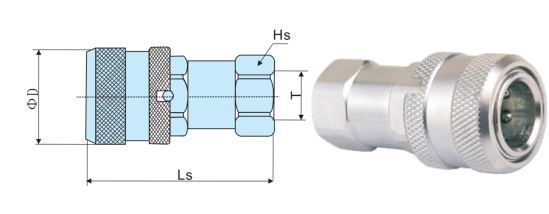

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	Hs(mm)	T
HFSFC15138-3/8"	3/8''	63	32	S24	3/8''NPT

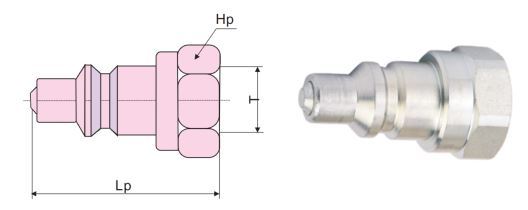

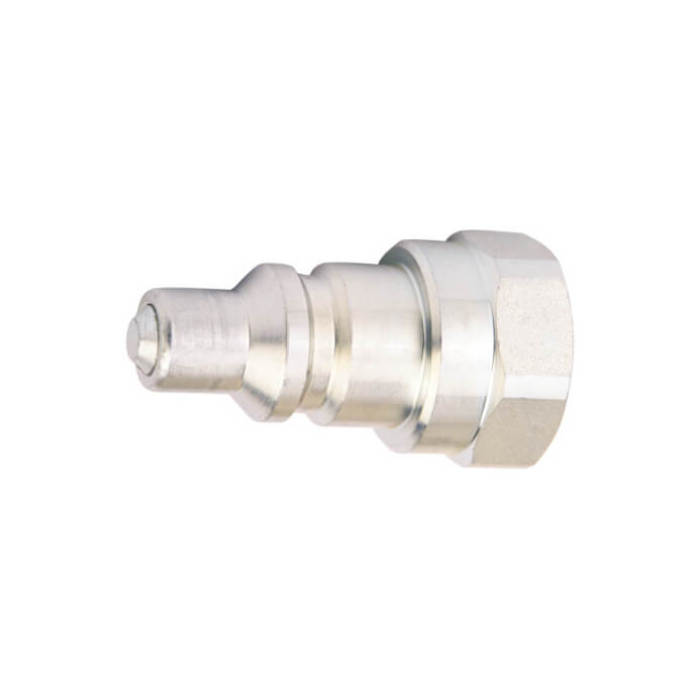

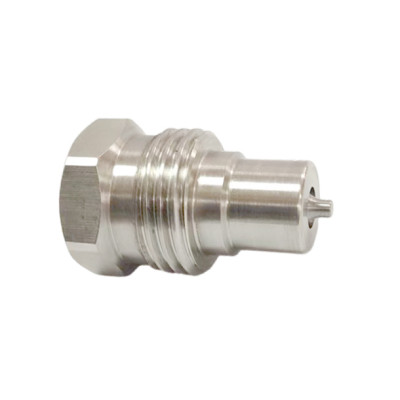

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	Hp(mm)	T
HFSFP15138-3/8"	3/8''	46	24	3/8''NPT

Accessories

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
06	3/8"	700	700	700	2800	2800	2800	/

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	PARKER TC SERIES
	Valve Type:	Poppet
	Connection:	Sleeve Retraction
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Not Allowed
