91 Series | VVS Screw To Connect Quick Couplings For High Pressure Applications (Stainless Steel)
| Categories | High / Ultra High 10000PSI+ Couplers |
|---|---|
| Interchange | DNP VVVX SERIES |
| Interchange | FASTER VVS STAINLESS STEEL SERIES |
| Interchange | VOSWINKEL HH-VA SERIES |
| Interchange | STAUFF HH-VA SERIES |
| Update Time | Sep 12,2025 |
Detail Information
91 Series
High Pressure Screw-To-Connect Coupling (Stainless Steel)
Poppet Valve
This EH series is interchangeable with DNP VVVX SERIES, FASTER VVS STAINLESS STEEL SERIES, VOSWINKEL HH-VA SERIES, and STAUFF HH-VA SERIES. High-performance AISI 316 stainless steel screw couplings engineered for extreme-pressure applications. Features corrosion-resistant construction, heavy-duty internal components.

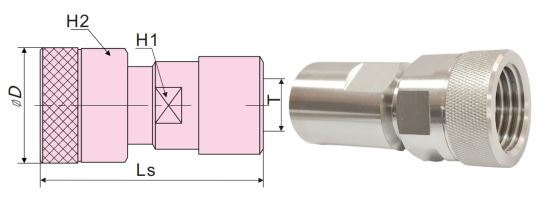

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | H1(mm) | H2(mm) | T |
| HFSSFC9114-1/4" | 1/4'' | 58 | 30 | 22 | 27 | 1/4"BSPP/NPT |
HFSSFC9138-3/8" | 3/8'' | 62 | 40 | 30 | 36 | 3/8"BSPP/NPT |
| HFSSFC9112-1/2" | 1/2'' | 71 | 45 | 34 | 41 | 1/2"BSPP/NPT |
HFSSFC9134-3/4" | 3/4'' | 87 | 55 | 41 | 50 | 3/4"BSPP/NPT |
HFSSFC9110-1" | 1'' | 100 | 60 | 50 | 55 | 1" BSPP/ NPT |
HFSSFC91114 -1-1/4" | 1-1/4'' | 123 | 80 | 65 | 75 | 1-1/4"BSPP/NPT |
HFSSFC91112 -1-1/2" | 1-1/2'' | 137 | 98 | 75 | 90 | 1-1/2"BSPP/NPT |
HFSSFC9120-2" | 2'' | 160 | 129 | 100 | 125 | 2" BSPP/ NPT |

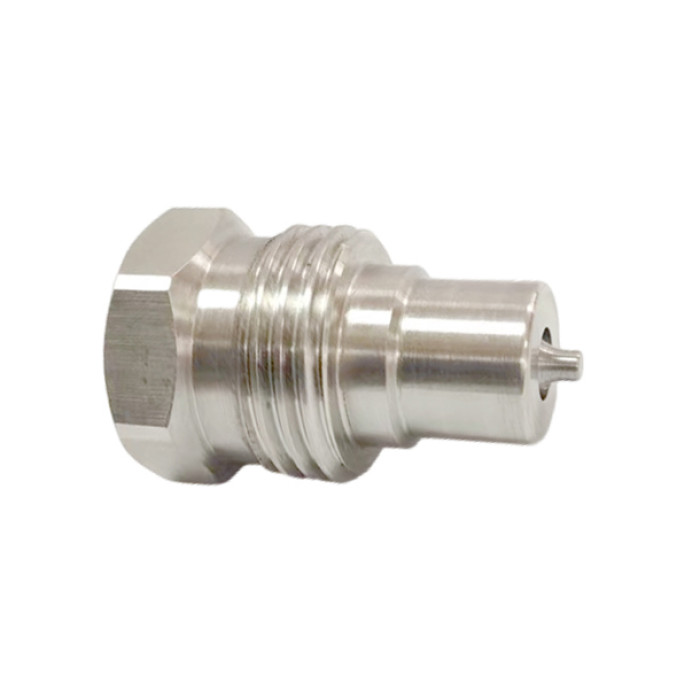

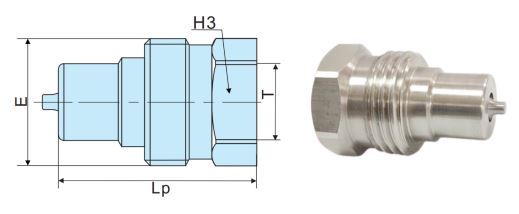

Male
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | H3(mm) | T |
| HFSSFP9114-1/4" | 1/4'' | 58 | 1''-12UNF | S25 | 1/4" BSPP/ NPT |
| HFSSFP9138-3/8" | 3/8'' | 62 | 1-1/14''-8UN | S32 | 3/8"BSPP/ NPT |
HFSSFP9112-1/2" | 1/2'' | 71 | 1-3/8"-UN | S34 | 1/2" BSPP/ NPT |
HFSSFP9134-3/4" | 3/4'' | 87 | 1-3/4"-6UN | S46 | 3/4" BSPP/ NPT |
HFSSFP9110-1" | 1'' | 100 | M52X4 | S50 | 1" BSPP/ NPT |
HFSSFP91114-1-1/4" | 1-1/4'' | 123 | M68X4 | S65 | 1-1/4"BSPP/NPT |
HFSSFP91112-1-1/2" | 1-1/2'' | 137 | M78X6 | S80 | 1-1/2"BSPP/NPT |
HFSSFP9120-2" | 2'' | 160 | M115X8 | S110 | 2" BSPP/ NPT |
