Home / All / High / Ultra High 10000PSI+ Couplers / 155 Series | CEJN 115 Quick Couplings for Ultra High Pressure applications-100 MPa (Steel)
155 Series | CEJN 115 Quick Couplings for Ultra High Pressure applications-100 MPa (Steel)
| Categories | High / Ultra High 10000PSI+ Couplers |
|---|---|
| Interchange | CEJN 115 SERIES |
| Interchange | VOSWINKEL HC SERIES |
| Interchange | FASTER UHP 100 SERIES |
| Interchange | DNP PCJ5 SERIES |
| Update Time | Sep 12,2025 |
Detail Information
155 Series
Ultra-High Pressure Coupling (Steel), 1/4'' Body Only
This EH series is interchangeable with CEJN 115 SERIES, VOSWINKEL HC SERIES, FASTER UHP 100 SERIES, and DNP PCJ5 SERIES. Representing EH's most advanced hydraulic coupling technology, the 155 series is engineered for extreme-pressure applications exceeding 100 MPa. These couplings combine unparalleled reliability with robust construction, featuring redundant safety systems that incorporate both visual indicators and mechanical interlocks. Designed for mission-critical operations, the 155 series delivers exceptional performance where standard hydraulic connections would fail, making it the premier solution for ultra-high-pressure systems demanding absolute operational security and durability.

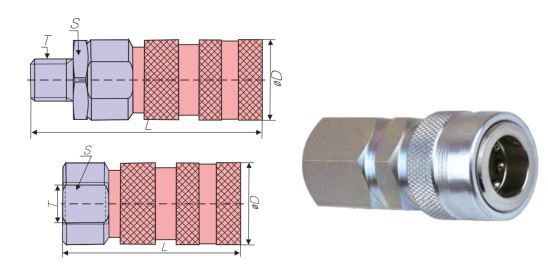

Female
| Female Thread, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | S(mm) | L(mm) | T |
| HFSFC15514-Rc1/4" | 1/4'' | 27 | 24 | 62.5 | Rc 1/4" |
HFSFC15514-Rc3/8" | 1/4'' | 27 | 24 | 62.5 | Rc 3/8" |
HFSFC15514-G1/4" | 1/4'' | 27 | 24 | 62.5 | G1/4" |
HFSFC15514-G3/8" | 1/4'' | 27 | 24 | 62.5 | G3/8" |
HFSFC15514-1/4"NPT | 1/4'' | 27 | 24 | 62.5 | 1/4"NPT |
HFSFC15514-3/8"NPT | 1/4'' | 27 | 24 | 62.5 | 3/8"NPT |
| Male Thread, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | S(mm) | L(mm) | T |
| HFSMC15514-R1/4" | 1/4'' | 27 | 24 | 80 | R 1/4" |
HFSMC15514-R3/8" | 1/4'' | 27 | 24 | 82 | R 3/8" |
HFSMC15514 -1/4"NPT | 1/4'' | 27 | 24 | 80 | 1/4"NPT |
HFSMC15514 -3/8"NPT | 1/4'' | 27 | 24 | 82 | 3/8"NPT |

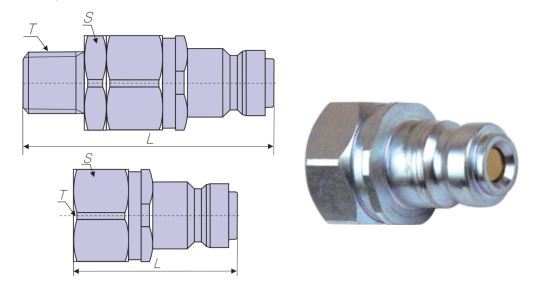

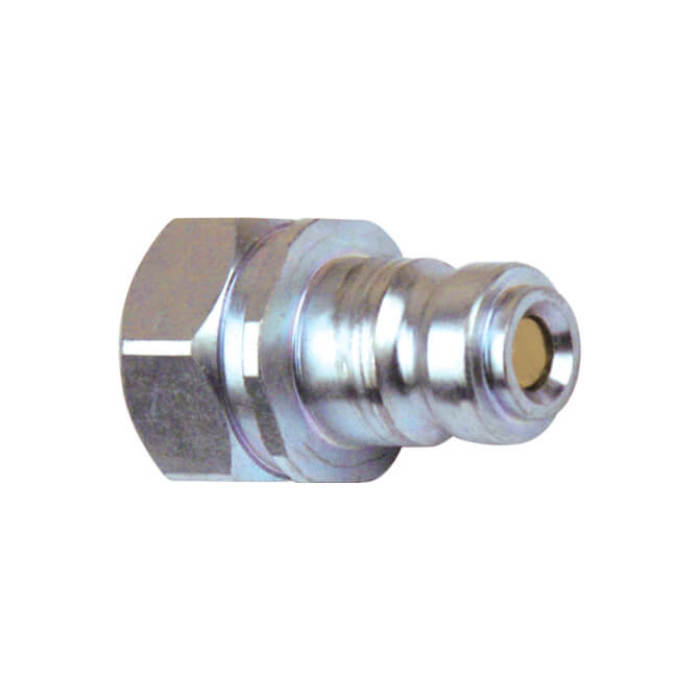

Male
| Female Thread, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | S(mm) | L(mm) | T |
| HFSFP15514-Rc1/4" | 1/4'' | 22 | 38 | Rc 1/4" |
HFSFP15514-Rc3/8" | 1/4'' | 22 | 38 | Rc 3/8" |
HFSFP15514-G1/4" | 1/4'' | 22 | 38 | G1/4" |
HFSFP15514-G3/8" | 1/4'' | 22 | 38 | G3/8" |
HFSFP15514-1/4"NPT | 1/4'' | 22 | 38 | 1/4"NPT |
HFSFP15514-3/8"NPT | 1/4'' | 22 | 38 | 3/8"NPT |
| Male Thread, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | S(mm) | L(mm) | T |
| HFSMP15514-R1/4" | 1/4'' | 22 | 60 | R 1/4" |
HFSMP15514-R3/8" | 1/4'' | 22 | 60 | R 3/8" |
HFSMP15514-1/4"NPT | 1/4'' | 22 | 60 | 1/4"NPT |
HFSMP15514-3/8"NPT | 1/4'' | 22 | 60 | 3/8"NPT |
