88 Series | PARKER 3000 Enerpac Screw To Connect Quick Couplers 10000PSI (Steel)

Categories	High / Ultra High 10000PSI+ Couplers
Interchange	PARKER 3000 SERIES
Interchange	FASTER PVSM SERIES
Interchange	STUCCHI IV-HP SERIES
Interchange	CEJN 232 SERIES
Interchange	DIXON T SERIES
Interchange	DNP PVS SERIES
Interchange	HANSEN WA56000 SERIES
Interchange	SAFEWAY S30 SERIES
Update Time	Sep 12,2025

Detail Information

88 Series

PARKER 3000 High Pressure Screw-To-Connect Enerpac Coupling, 10000PSI (Steel)

Ball Valve, ISO-14540

This EH series is interchangeable with PARKER 3000 SERIES, STUCCHI IV-HP SERIES, FASTER PVSM SERIES, CEJN 232 SERIES, DIXON T SERIES, DNP PVS SERIES, HANSEN WA56000 SERIES, and SAFEWAY S30 SERIES. These screw-to-connect couplings are engineered for ultra-high-pressure applications. Featuring a durable metal-to-metal sealing ball valve, these ISO 14540-compliant couplings deliver exceptional performance in demanding hydraulic systems.

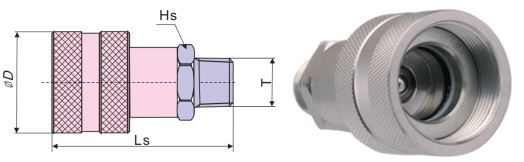

Female

High Pressure Screw-To-Connect Enerpac Coupling

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	Hs(mm)	T
HFSMC8814-1/4"	1/4''	62.5	30	S22	1/4''NPTF
HFSMC8838-3/8"	3/8''	71.5	35	S24	3/8''NPTF

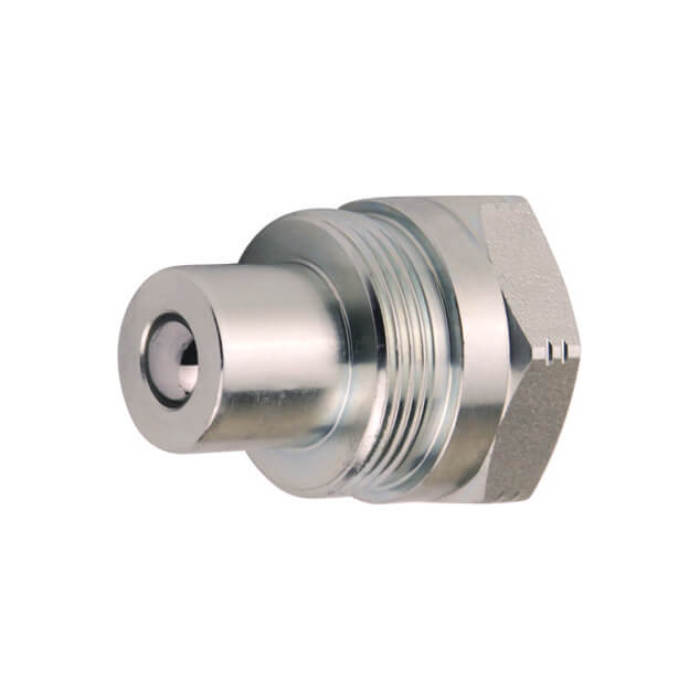

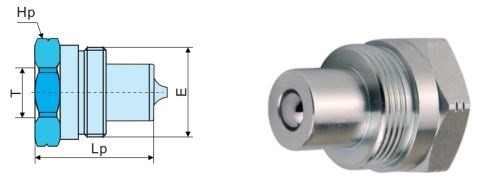

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	E(mm)	Hp(mm)	T
HFSFP8814-1/4"	1/4''	45	1-18UNS	S19	1/4''NPTF
HFSFP8838-3/8"	3/8''	40	1-3/16-16UN	S32	3/8''NPTF

Accessories

Dash Size	ISO Size	Art. No. Dust Plug For Coupler	Art. No. Dust Cap For Plug	Material
04	6.3	ISO-14540-1/4-P-AL	ISO-14540-1/4-C-AL	Aluminum
06	10	ISO-14540-3/8-P-AL	ISO-14540-3/8-C-AL	Aluminum

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
04	1/4''	720	720	720	2880	2880	2880	0.5
06	3/8''	720	720	720	2880	2880	2880	1

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	PARKER 3000 SERIES, HANSEN WA56000 SERIES, SAFEWAY S30 SERIES, FASTER PVSM SERIES, STUCCHI IV-HP SERIES, DNP PVS SERIES, CEJN 232 SERIES, DIXON T SERIES
	Valve Type:	Ball
	Connection:	Screw to Connect
	Disconnection:	Unscrew to Disconnect
	Connection Under Pressure:	Allowed Residual
