89 Series | W6000 Screw To Connect Quick Couplings For High Pressure (Steel)

Categories	High / Ultra High 10000PSI+ Couplers
Interchange	DNP PVG1 SERIES
Interchange	GROMELLE W6000 SERIES
Interchange	INTEVA TGW SERIES
Interchange	VOSWINKEL HB SERIES
Interchange	EATON W6000 SERIES
Interchange	STAUFF HB SERIES
Update Time	Sep 12,2025

Detail Information

89 Series

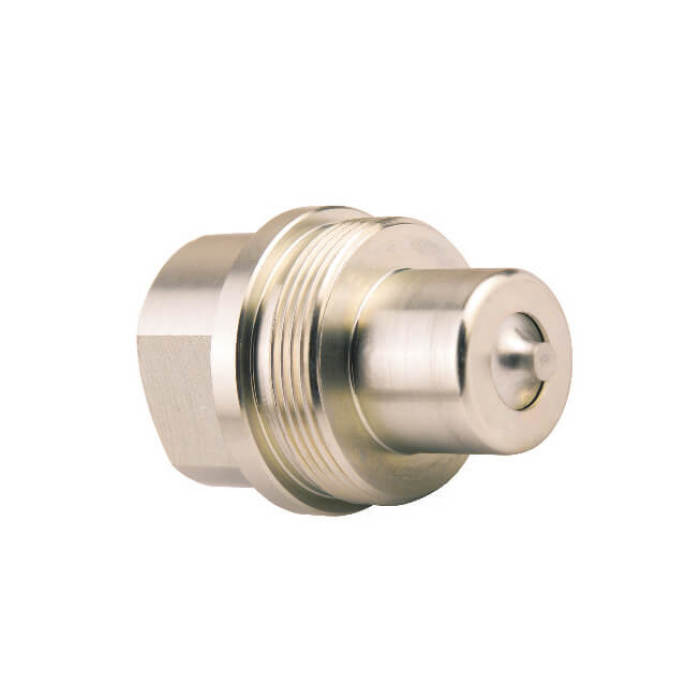

High Pressure Screw-To-Connect Coupling (Steel)

Poppet Valve

This EH series is interchangeable with DNP PVG1 SERIES, GROMELLE W6000 SERIES, INTEVA TGW SERIES, VOSWINKEL HB SERIES, EATON W6000 SERIES, and STAUFF HB SERIES. High-pressure screw-on couplings engineered for extreme working conditions with frequent pressure spikes. The heavy-duty internal construction ensures optimal safety and reliability. Market Interchange.

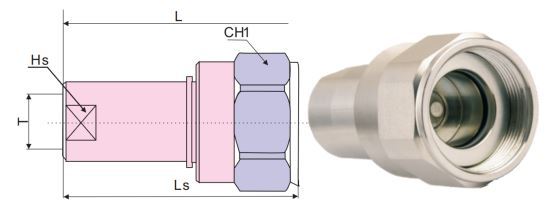

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	CH1(mm)	Hs(mm)	Ls(mm)	L(mm)	T
HFSFC8914-1/4"	1/4''	32	19	59	72	1/4"BSPP/NPT
HFSFC8938-3/8"	3/8''	36	22	66.5	81.5	3/8"BSPP/NPT
HFSFC8912-1/2"	1/2''	41	27	76.5	98	1/2"BSPP/NPT
HFSFC8934-3/4"	3/4''	50	35	89.5	112	3/4"BSPP/NPT
HFSFC8910-1"	1''	65	41	105.5	132.5	1"BSPP/NPT

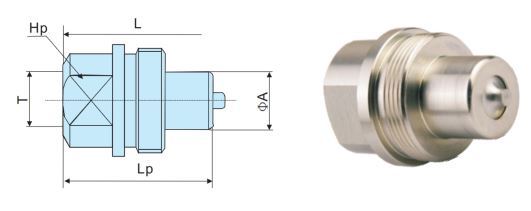

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	A(mm)	Hp(mm)	Lp(mm)	L(mm)	T
HFSFP8914-1/4"	1/4''	15	19	36	72	1/4"BSPP/NPT
HFSFP8938-3/8"	3/8''	19	22	40.5	81.5	3/8"BSPP/NPT
HFSFP8912-1/2"	1/2''	22	27	49.5	98	1/2"BSPP/NPT
HFSFP8934-3/4"	3/4''	29	35	56	112	3/4"BSPP/NPT
HFSFP8910-1"	1''	36	41	66	132.5	1"BSPP/NPT

Accessories

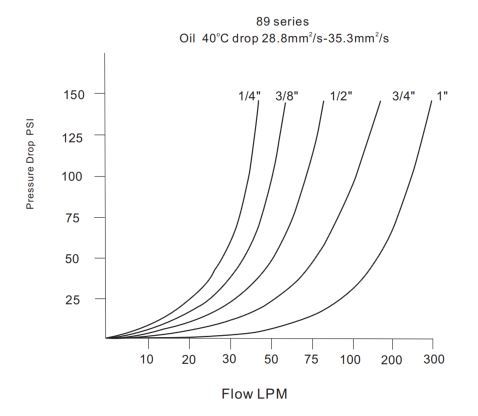

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
04	1/4''	950	950	950	3650	3500	3800	1.1
06	3/8''	750	750	750	3000	2900	3000	1.9
08	1/2"	750	750	750	2950	3000	3000	2.8
12	3/4"	650	650	650	2520	2500	2600	5.8
16	1"	450	450	450	1800	1650	1800	10.9

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	EATON W6000 SERIES, GROMELLE W6000 SERIES, DNP PVG1 SERIES, INTEVA TGW SERIES, STAUFF HB SERIES, VOSWINKEL HB SERIES
	Valve Type:	Poppet
	Connection:	Screw to Connect
	Disconnection:	Unscrew to Disconnect
	Connection Under Pressure:	Allowed Residual
