241 Series | PARKER 1141 Connect Under Pressure Stainless Quick Couplings (AISI 316 Stainless Steel)
| Categories | High / Ultra High 10000PSI+ Couplers |
|---|---|
| Interchange | PARKER 1141 SERIES |
| Interchange | SNAP-TITE H SERIES |
| Update Time | Sep 12,2025 |
Detail Information

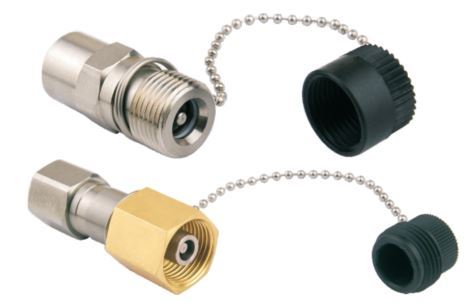

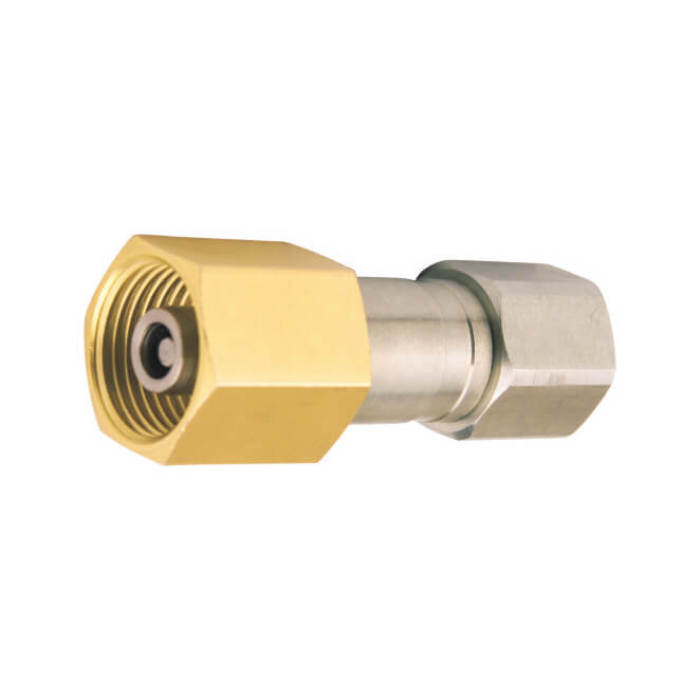

241 Series
High-Pressure Screw-To-Connect Coupling (AISI 316 Stainless Steel)-Connect Under Pressure
This EH series is interchangeable with SNAP-TITE H SERIES and PARKER 1141 SERIES. This series is mainly used in offshore equipment and hydraulic lines in a corrosive environment. Rated pressure up to 10,000 PSI. Small diameter mating seal keeps separate forces to a minimum, allowing easier threaded connection and disconnection at pressures up to 5000 PSI. Self-locking threads guard against accidental disconnection. Visual connection indicator- when fully coupled, the sleeve edge is flush with the end of the male thread.
Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||

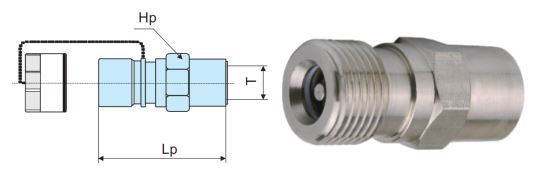

| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFC24114-1/4" | 1/4'' | 51 | S22 | 1/4"NPTF |
Male
| Other Threads/Fitting Ends Are Available Upon Request | |||||

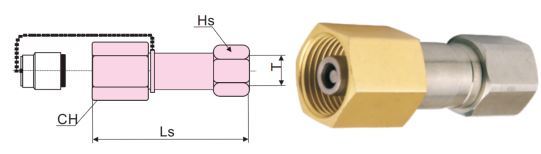

| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | CH(mm) | T |
| HFSSFP24114-1/4" | 1/4'' | 70 | S22 | 25 | 1/4"NPTF |
