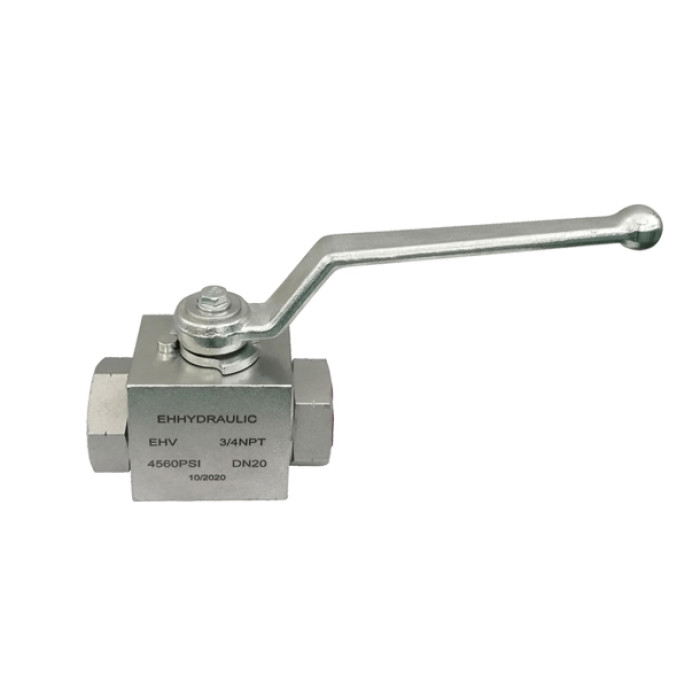

EHV Series | BKH Two-Way Block High Pressure Ball Valve (Steel)

Categories	High Pressure Ball Valves
Interchange	PISTER BKH SERIES
Interchange	MHA BKH SERIES
Interchange	HYDAC KHB SERIES
Interchange	HYDAC KHM SERIES
Interchange	GEMELS GE2 SERIES
Interchange	CIOCCA CRHI2 SERIES
Interchange	HOLMBURY BVC2 SERIES
Update Time	Sep 12,2025

Detail Information

EHV Series

Two-Way High Pressure Ball Valve (Steel)

This EH series is interchangeable with PISTER BKH SERIES, MHA BKH SERIES, HYDAC KHB SERIES, HYDAC KHM SERIES, GEMELS GE2 SERIES, CIOCCA CRHI2 SERIES, and HOLMBURY BVC2 SERIES. Steel Product. Two-way high-pressure ball valve (carbon steel), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.

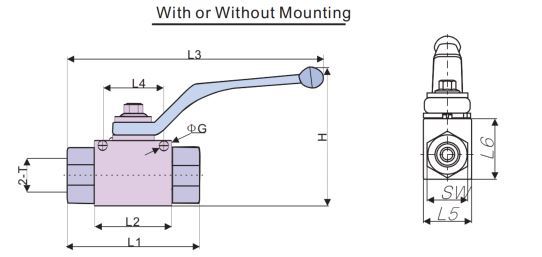

Body Size

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (Inch)	L1(mm)	L2(mm)	L3(mm)	H(mm)	G(mm)	L4(mm)	L5(mm)	L6(mm)	T
EHV18	1/8''	69	40	154.1	73	4.5	26	26	33	1/8'' BSPP(NPT)
EHV14	1/4''	69	40	145	71	4.5	26	26	33	1/4'' BSPP(NPT)
EHV38	3/8''	71	42	145	70.5	6.5	32	33	38	3/8'' BSPP(NPT)
EHV12	1/2''	82	48	161	81	6.5	37.5	36	40	1/2'' BSPP(NPT)
EHV34	3/4''	96	62	218	112	6.5	45	49	57	3/4'' BSPP(NPT)
EHV10	1''	113	66	226.5	120	6.5	55	58	65	1'' BSPP(NPT)
EHV10-114	1''	120	66	229.8	120	6.5	55	58	65	1-1/4'' BSPP(NPT)
EHV10-112	1''	130	66	234.8	120	6.5	55	58	65	1-1/2'' BSPP(NPT)
EHV114	1-1/4''	120	80	295	170	/	/	82	87	1-1/4'' BSPP(NPT)
EHV112	1-1/2''	130	85	305	174.5	/	/	93	99	1-1/2'' BSPP(NPT)
EHV20	2''	140	100	305	197	/	/	110	115	2'' BSPP(NPT)

Thread Size

Dimension diagram of two-way high-pressure ball valve

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHV18-G1/8	G1/8	/	69	10	22
EHV14-G1/4	G1/4	/	69	13.5	22
EHV38-G3/8	G3/8	/	71	14	27
EHV12-G1/2	G1/2	/	82	16.5	30
EHV34-G3/4	G3/4	/	95	18	41
EHV10-G1	G1	/	113	20	50
EHV10-G114	G1-14	/	120	22	50
EHV10-G112	G1-12	/	129	25	60
EHV114-G114	G1-14	/	120	29	60
EHV112-G112	G1-12	/	130	28	70
EHV20-G2	G2	/	140	29	85

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHV18-1/8NPT	1/8NPT	/	69	10.5	22
EHV14-1/4NPT	1/4NPT	/	69	15	22
EHV38-3/8NPT	3/8NPT	/	71	15.5	27
EHV12-1/2NPT	1/2NPT	/	82	17	30
EHV34-3/4NPT	3/4NPT	/	95	20.5	41
EHV10-1NPT	1NPT	/	113	25	50
EHV10-114NPT	1-1/4NPT	/	120	22	50
EHV10-112NPT	1-1/2NPT	/	129	22	60
EHV114-114NPT	1-1/4NPT	/	120	29	60
EHV112-112NPT	1-1/2NPT	/	130	30	70
EHV20-2NPT	2NPT	/	140	30	85

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHV-10S	M18X1.5	10	73	12	22
EHV-12S	M20X1.5	12	77	12	27
EHV-16S	M24X1.5	16	87	14	30
EHV-20S	M30X2	20	91	16	32
EHV-25S	M36X2	25	111	18	41
EHV-30S	M42X2	30	120	20	50
EHV-38S	M52X2	38	141	22	60

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHV-8L	M14X1.5	8	69	10	22
EHV-10L	M16X1.5	10	77	11	27
EHV-12L	M18X1.5	12	77	11	27
EHV-15L	M22X1.5	15	83	12	30
EHV-22L	M30X2	22	103	14	41
EHV-28L	M36X2	28	107.5	14	55
EHV-35L	M45X2	35	135	16	60
EHV-42L	M52X2	42	142	16	70

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHV-SAE4	7/16-20UNF	/	69	14	22
EHV-SAE6	9/16-18UNF	/	71	15.5	27
EHV-SAE8	3/4-16UNF	/	82	18	30
EHV-SAE12	1-1/16-12UN	/	101	23.5	41
EHV-SAE16	1-5/16-12UN	/	113	23	50
EHV-SAE20	1-5/8-12UN	/	120	25	60
EHV-SAE24	1-7/8-12UN	/	130	25	70
EHV-SAE32	2-1/2-12UN	/	140	25	80

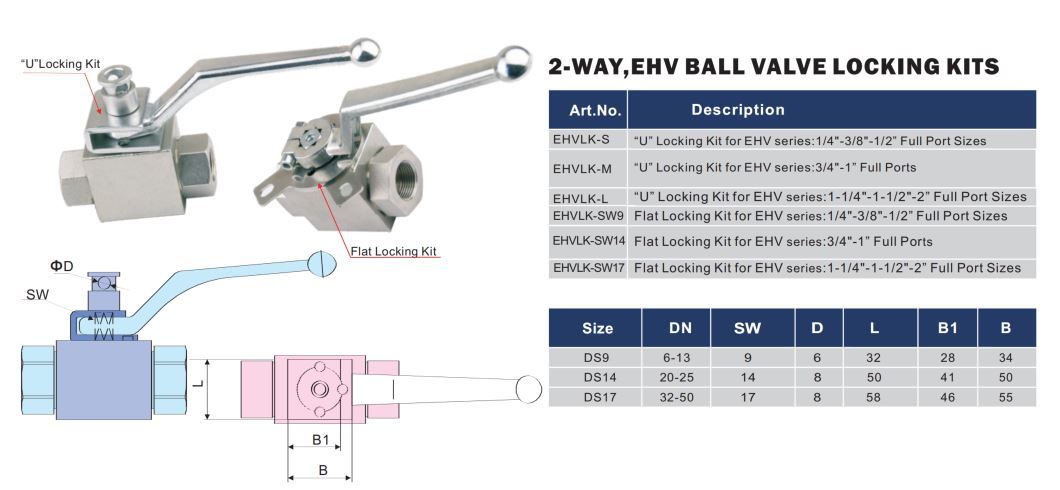

Accessories

2-Way High Pressure Ball Valve (Carbon Steel)

Technical Specifications

Body Dash Size	Body Size (Inch)	Max. Work Pressure (bar)
02	1/8''	500
04	1/4''	500
06	3/8''	500
08	1/2''	500
12	3/4''	315
16	1''	315
16	1''	315
16	1''	315
20	1-1/4''	315
24	1-1/2''	315
32	2''	315

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	PISTER BKH SERIES, MHA BKH SERIES, HYDAC KHB SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, GEMELS GE2 SERIES
	Ball Seals:	POM
	Connection:	Handle
	Disconnection:	Handle
	Connection Under Pressure:	No Allowed
