EHVDH Series | SKH Two-Way High Pressure Forged Ball Valve (Steel)
| Categories | High Pressure Ball Valves |
|---|---|
| Interchange | PISTER SKH SERIES |
| Interchange | MHA MKHP SERIES |
| Interchange | HYDAC KHM SERIES |
| Interchange | GEMELS GB2 SERIES |
| Interchange | CIOCCA CRHI2 SERIES |
| Update Time | Sep 12,2025 |
Detail Information
EHVDH Series

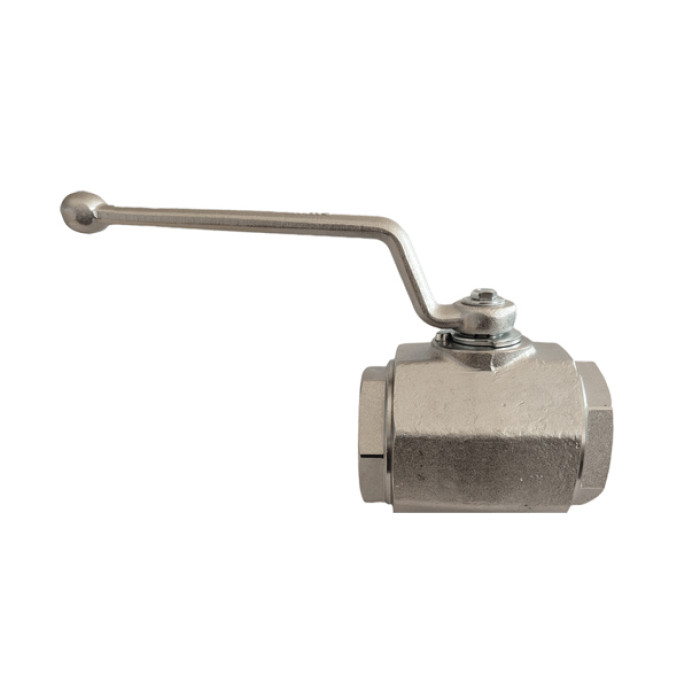

Two-Way High Pressure Forged Ball Valve (Steel)
This EH series is interchangeable with PISTER SKH SERIES, MHA MKHP SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, and GEMELS GB2 SERIES. Two-way high-pressure forged ball valve (steel), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | LW(mm) | L1(mm) | L2(mm) | L3(mm) | H(mm) | G(mm) | L4(mm) | L5(mm) | L6(mm) | T |
EHVDH114 | 1-1/4'' | 32 | 150 | 120 | 172 | 168 | / | / | 82 | 87.5 | 1-1/4'' BSPP(NPT) |
EHVDH112 | 1-1/2'' | 38 | 165 | 130 | 177 | 179.5 | / | / | 93 | 99 | 1-1/2'' BSPP(NPT) |
EHVDH20 | 2'' | 48 | 180 | 140 | 199 | 195.5 | / | / | 110 | 115 | 2'' BSPP(NPT) |
Thread Size
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHVDH-G1-1/4 | 32 | G1-1/4 | / | 110 | 20 | 60 |
EHVDH-G1-1/2 | 38 | G1-1/2 | / | 120 | 22 | 70 |
EHVDH-G2 | 48 | G2 | / | 140 | 24 | 85 |
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHVDH-1-1/4NPT | 32 | 1-1/4NPT | / | 110 | 19.5 | 60 |
EHVDH-1-1/2NPT | 38 | 1-1/2NPT | / | 120 | 19.5 | 70 |
EHVDH-2NPT | 48 | 2NPT | / | 140 | 20 | 85 |
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHVDH-38S | 32 | M52X2 | 38 | 148 | 22 | 81 |
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHVDH-35L | 32 | M45X2 | 35 | 136 | 16 | 81 |
EHVDH-42L | 38 | M52X2 | 42 | 147 | 16 | 100 |
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHVDH-SAE20 | 32 | 1-5/8-12UN | / | 120 | 20 | 60 |
EHVDH-SAE24 | 38 | 1-7/8-12UN | / | 130 | 20 | 70 |
EHVDH-SAE32 | 48 | 2-1/2-12UN | / | 140 | 20 | 80 |
