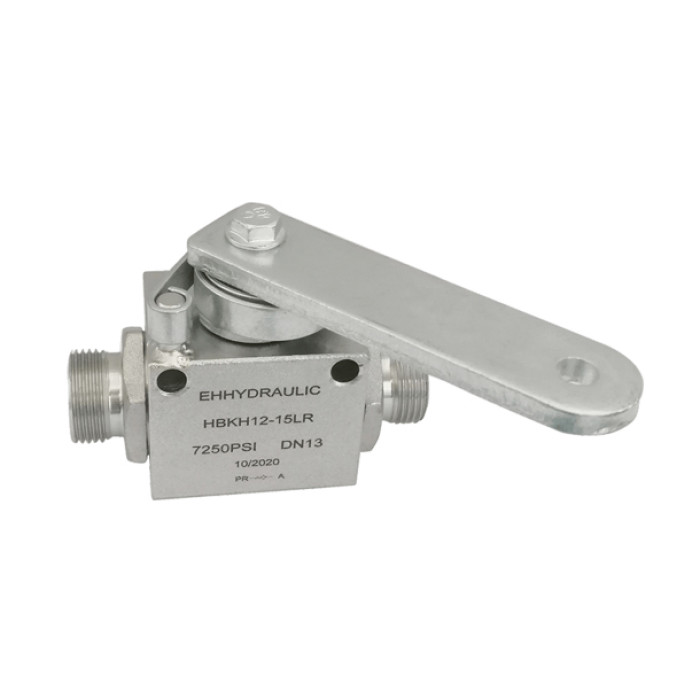

HBKH Series | PISTER HBKH Two-Way Stroke Limiter Ball Valve (Steel)

Categories	High Pressure Ball Valves
Interchange	PISTER HBKH SERIES
Update Time	Sep 12,2025

Detail Information

HBKH Series

Two-Way Stroke Limiter Ball Valves (Steel)

This EH series is interchangeable with PISTER HBKH SERIES. This series has a stroke limitation function on single-action cylinders, e.g., tilt cylinders or lifting platforms for hydraulically powered machines.

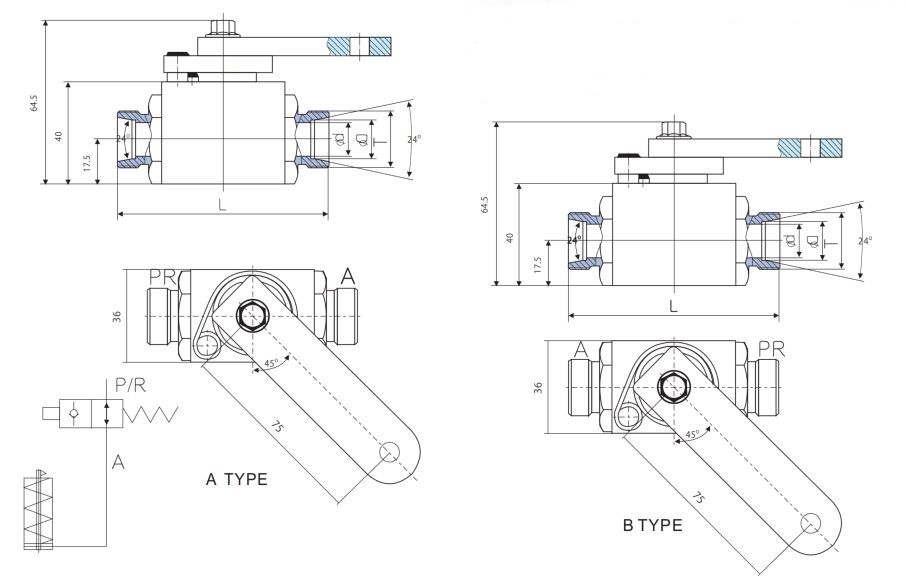

Body Size

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	DN	d(mm)	D(mm)	T
HBKH12-12LR	13	10	12	M18X1.5
HBKH12-15LR	13	13	15	M22X1.5

Technical Specifications

Body Size (Inch)	Max. Work Pressure (bar)
1/2''	350

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	PISTER HBKH SERIES
	Ball Seals:	POM
	Connection:	Handle
	Disconnection:	Handle
	Connection Under Pressure:	No Allowed
