Home / All / High Pressure Ball Valves / EHVFS Series | BKH Two-Way High Pressure Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)

EHVFS Series | BKH Two-Way High Pressure Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)

EHVFS Series | BKH Two-Way High Pressure Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)
EHVFS Series | BKH Two-Way High Pressure Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)EHVFS Series | BKH Two-Way High Pressure Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)EHVFS Series | BKH Two-Way High Pressure Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)
CategoriesHigh Pressure Ball Valves
InterchangeMHA BKH SERIES
InterchangeHYDAC KHB-F3/6 SERIES
InterchangeGEMELS GES SERIES
Update TimeSep 12,2025
Contact Now
Favorites
Detail Information
Items
Specs
Applications

EHVFS Series

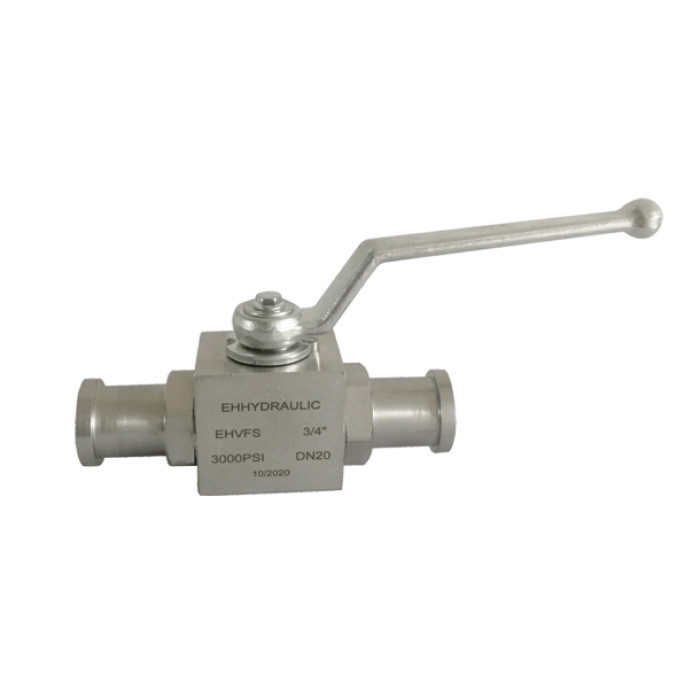

Two-Way High Pressure Ball Valve With Flange (Steel), SAE J518C (ISO-6162) Standard

This EH series is interchangeable with MHA NDRV SERIES, HYDAC DRV SERIES, PARKER F SERIES, and GEMELS RF SERIES. Two-way high-pressure ball valve with flange (carbon steel) SAE J518C (ISO-6162), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.

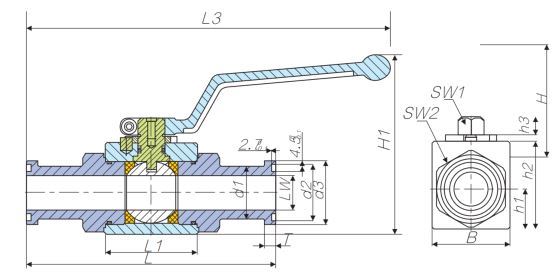

Body Size


2-Way High Pressure Ball Valve With Flange
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
DN
LW(mm)
L(mm)
L1(mm)
B(mm)
H(mm)
H3(mm)
H1(mm)
h1(mm)
EHVFS-DN13-210
13
13
151
48
36
54
193
85
19
EHVFS-DN13-420
13
13
151
48
36
54
193
85
19
EHVFS-DN20-210
20
20
162
62
49
74.5
252
119
24.5
EHVFS-DN20-420
20
20
174
62
49
74.5
260
119
24.5
EHVFS-DN25-210
25
25
178
66
58
83
260
128
29.5
EHVFS-DN25-420
25
25
198
66
58
83
280
128
29.5
EHVFS-DN32-210
32
32
191
80
82
107.5
336
170
41
EHVFS-DN32-420
32
32
223
80
82
107.5
368
170
41
EHVFS-DN40-210
40
38
231
85
93
113
355
174.5
42
EHVFS-DN40-420
40
38
281
85
93
113
405
174.5
42
EHVFS-DN50-210
50
48
232
100
110
136
357
197
57
EHVFS-DN50-420
50
48
316
100
110
136
441
197
57
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
h2(mm)
h3(mm)
SW1(mm)
SW2(mm)
T(mm)
d1(mm)
d2(mm)
d3(mm)
O-Ring
EHVFS-DN13-210
40
9
9
30
6.8
24
25.5
30.2
18.64X3.53
EHVFS-DN13-420
40
9
9
30
7.9
24
25.5
30.2
18.64X3.53
EHVFS-DN20-210
57
12
14
41
6.8
31.7
31.9
38.1
24.99X3.53
EHVFS-DN20-420
57
12
14
41
8.9
32
31.9
41.3
24.99X3.53
EHVFS-DN25-210
65
12
14
50
8.1
38
39.8
44.4
32.92X3.53
EHVFS-DN25-420
65
12
14
50
9.6
38
39.8
47.6
32.92X3.53
EHVFS-DN32-210
87
14
17
60
8
43
44.5
50.8
37.69X3.53
EHVFS-DN32-420
87
14
17
60
10.4
43
44.5
50.8
37.69X3.53
EHVFS-DN40-210
99
14
17
65
8
50
53.8
60.3
47.22X3.53
EHVFS-DN40-420
99
14
17
65
12.7
50
53.8
60.3
47.22X3.53
EHVFS-DN50-210
115
14
17
85
9.6
62
63.4
71.4
56.74X3.53
EHVFS-DN50-420
115
14
17
85
12.7
62
63.4
71.4
56.74X3.53

Accessories


2-Way High Pressure Ball Valve With Flange
Accessories

Technical Specifications

DN
Max. Work Pressure (bar)
13
210/420
20
210/420
25
210/420
32
210/420
40
210/420
50
210/420
Material:
Steel
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
MATE 500 (CRIII)
Specifications:
Series Interchange:
MHA BKH SERIES,
HYDAC KHB-F3/6 SERIES,
GEMELS GES SERIES
Ball Seals:
POM
Connection:
Handle
Disconnection:
Handle
Connection Under Pressure:
No Allowed
