EHVDHFS Series | KHM Two-Way High Pressure Forged Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)

Categories	High Pressure Ball Valves
Interchange	MHA MKHP-SAEFS SERIES
Interchange	HYDAC KHM-F3/6 SERIES
Interchange	GEMELS GBS3 SERIES
Interchange	GEMELS GBS6 SERIES
Update Time	Sep 12,2025

Detail Information

EHVDHFS Series

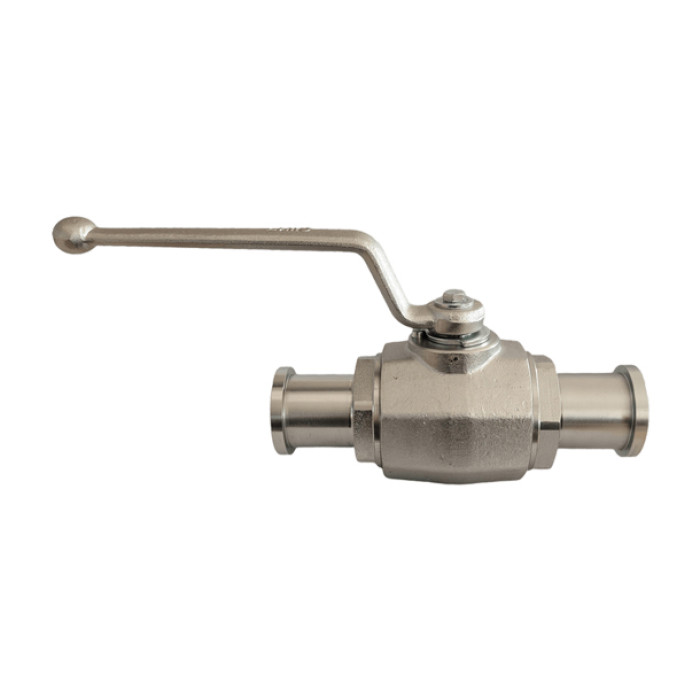

Two-Way High Pressure Forged Ball Valve With Flange (Steel), SAE J518C (ISO-6162) Standard

This EH series is interchangeable with MHA MKHP-SAEFS SERIES, HYDAC KHM-F3/6 SERIES, GEMELS GBS3 SERIES, and GEMELS GBS6 SERIES. Two-way high-pressure forged ball valve with flange (carbon steel) SAE J518C (ISO-6162), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.

Body Size

Two-Way High Pressure Forged Ball Valve With Flange

Other Threads/Fitting Ends Are Available Upon Request

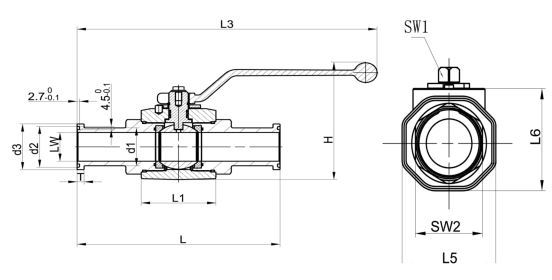

Art. No.	Body Size (Inch)	DN	LW(mm)	L(mm)	L1(mm)	L5(mm)	L6(mm)	H(mm)
EHVDHFS-DN32-210	1-1/4''	32	30	231	120	82	87.5	168
EHVDHFS-DN32-420	1-1/4''	32	30	263	120	82	87.5	168
EHVDHFS-DN40-210	1-1/2''	40	38	276	130	93	99	179.5
EHVDHFS-DN40-420	1-1/2''	40	38	326	130	93	99	179.5
EHVDHFS-DN50-210	2''	50	48	272	140	110	115	195.5
EHVDHFS-DN50-420	2''	50	48	356	140	110	115	195.5

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	L3(mm)	SW1(mm)	SW2(mm)	T(mm)	d1(mm)	d2(mm)	d3(mm)
EHVDHFS-DN32-210	379	17	60	8	43	44	50.8
EHVDHFS-DN32-420	408	17	60	10.4	43	44.6	54
EHVDHFS-DN40-210	400	17	65	8	50	53.7	60.3
EHVDHFS-DN40-420	450	17	65	12.7	50	54.1	63.5
EHVDHFS-DN50-210	397	17	85	9.6	62	62.5	71.4
EHVDHFS-DN50-420	481	17	85	12.7	62	63.6	79.4

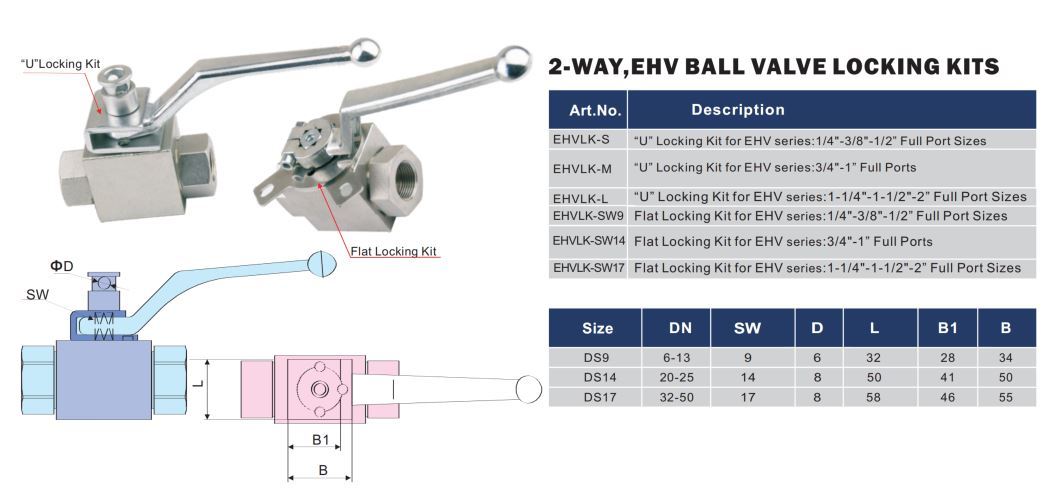

Accessories

Technical Specifications

Body Size (Inch)	Max. Work Pressure (bar)
1-1/4''	210/420
1-1/2''	210/420
2''	210/420

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	MHA MKHP-SAEFS SERIES, HYDAC KHM-F3/6 SERIES, GEMELS GBS3 SERIES, GEMELS GBS6 SERIES
	Ball Seals:	POM
	Connection:	Handle
	Disconnection:	Handle
	Connection Under Pressure:	No Allowed
