EHVSS 316Ti Series | RKH Two-Way High Pressure Ball Valve (Stainless Steel)
| Categories | High Pressure Ball Valves |
|---|---|
| Interchange | PISTER RKH SERIES |
| Interchange | MHA BKH SERIES |
| Interchange | HYDAC KHM SERIES |
| Interchange | GEMELS GE2 SERIES |
| Update Time | Sep 12,2025 |
Detail Information
EHVSS 316Ti Series

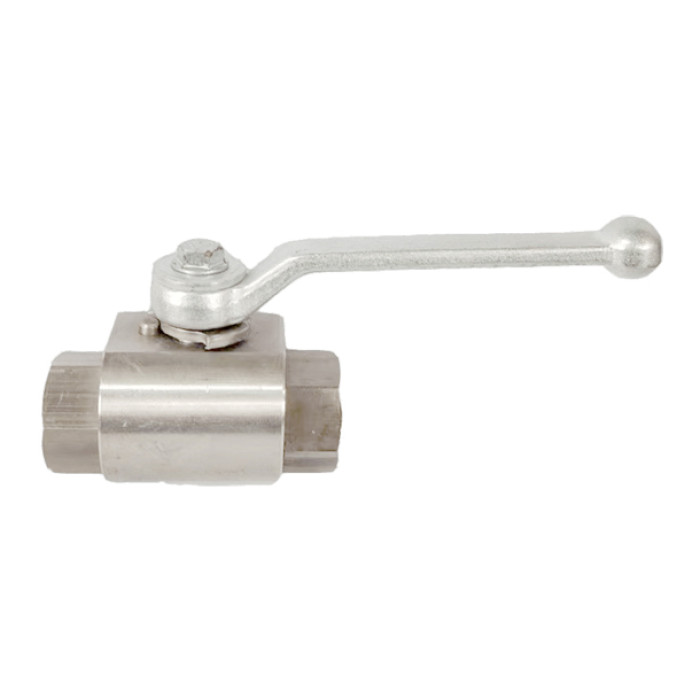

2-Way High Pressure Ball Valve (Stainless Steel)
This EH series is interchangeable with PISTER RKH SERIES, MHA BKH SERIES, HYDAC KHM SERIES, and GEMELS GE2 SERIES. 2-way high-pressure ball valve (AISI Stainless 316Ti), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.

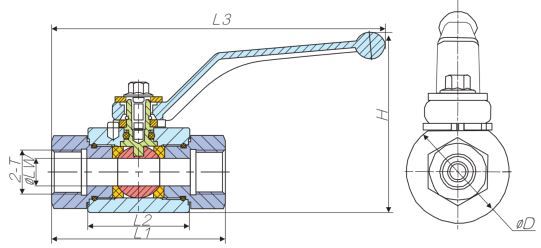

Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | LW(mm) | L1(mm) | L2(mm) | L3(mm) | H(mm) | D(mm) | L4(mm) | L5(mm) | L6(mm) | T |
EHVSS14 | 1/4'' | 6 | 69 | 40 | 152 | 78 | 35 | / | / | / | 1/4'' BSPP(NPT) |
EHVSS38 | 3/8'' | 10 | 72 | 42 | 154 | 84 | 42 | / | / | / | 3/8'' BSPP(NPT) |
EHVSS12 | 1/2'' | 13 | 84 | 48 | 159 | 86 | 45 | / | / | / | 1/2'' BSPP(NPT) |
EHVSS34 | 3/4'' | 20 | 97 | 62 | 219 | 119 | 60 | / | / | / | 3/4'' BSPP(NPT) |
EHVSS10 | 1'' | 25 | 113 | 66 | 228 | 128 | 65 | / | / | / | 1'' BSPP(NPT) |
Thread Size
| Art. No. | DN(mm) | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVSS-G1/4 | 6 | 6 | G1/4 | / | 69 | 13.5 | 22 |
| EHVSS-G3/8 | 10 | 10 | G3/8 | / | 71 | 14 | 27 |
EHVSS-G1/2 | 13 | 13 | G1/2 | / | 82 | 16.5 | 30 |
EHVSS-G3/4 | 20 | 20 | G3/4 | / | 95 | 18 | 41 |
EHVSS-G1 | 25 | 25 | G1 | / | 113 | 20 | 50 |
| Art. No. | DN(mm) | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVSS-1/4NPT | 6 | 6 | 1/4NPT | / | 69 | 15 | 22 |
| EHVSS-3/8NPT | 10 | 10 | 3/8NPT | / | 71 | 15.5 | 27 |
EHVSS-1/2NPT | 13 | 13 | 1/2NPT | / | 82 | 17 | 30 |
EHVSS-3/4NPT | 20 | 20 | 3/4NPT | / | 95 | 20.5 | 41 |
EHVSS-1NPT | 25 | 25 | 1NPT | / | 113 | 25 | 50 |
| Art. No. | DN(mm) | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVSS-10S | 6 | 6 | M18X1.5 | 10 | 73 | 12 | 22 |
| EHVSS-12S | 8 | 8 | M20X1.5 | 12 | 77 | 12 | 27 |
EHVSS-16S | 13 | 13 | M24X1.5 | 16 | 87 | 14 | 30 |
EHVSS-20S | 16 | 13 | M30X2 | 20 | 91 | 16 | 32 |
EHVSS-25S | 20 | 20 | M36X2 | 25 | 111 | 18 | 41 |
EHVSS-30S | 25 | 25 | M42X2 | 30 | 120 | 20 | 50 |
| Art. No. | DN(mm) | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVSS-8L | 6 | 6 | M14X1.5 | 8 | 69 | 10 | 22 |
| EHVSS-10L | 8 | 10 | M16X1.5 | 10 | 77 | 11 | 27 |
EHVSS-12L | 10 | 10 | M18X1.5 | 12 | 77 | 11 | 27 |
EHVSS-15L | 13 | 13 | M22X1.5 | 15 | 83 | 12 | 30 |
EHVSS-22L | 20 | 20 | M30X2 | 22 | 103 | 14 | 41 |
EHVSS-28L | 25 | 25 | M36X2 | 28 | 107.5 | 14 | 55 |
| Art. No. | DN(mm) | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVSS-SAE4 | 6 | 6 | 7/16-20UNF | / | 69 | 14 | 22 |
| EHVSS-SAE6 | 10 | 10 | 9/16-18UNF | / | 71 | 15.5 | 27 |
EHVSS-SAE8 | 13 | 13 | 3/4-16UNF | / | 82 | 18 | 30 |
EHVSS-SAE12 | 20 | 20 | 1-1/16-12UN | / | 101 | 23.5 | 41 |
EHVSS-SAE16 | 25 | 25 | 1-5/16-12UN | / | 113 | 23 | 50 |
