EHPK Series | BKHU Two-Way High-Pressure Ball Valve (Steel)

EHPK Series | BKHU Two-Way High-Pressure Ball Valve (Steel)
CategoriesHigh Pressure Ball Valves
InterchangeMHA PKH SERIES
InterchangePISTER BKHU SERIES
InterchangeHYDAC KHP SERIES
InterchangeGEMELS GPK2 SERIES
InterchangeHYDAC KHP3K SERIES
Update TimeSep 12,2025
Contact Now
Favorites
Detail Information
Items
Specs
Applications

EHPK Series

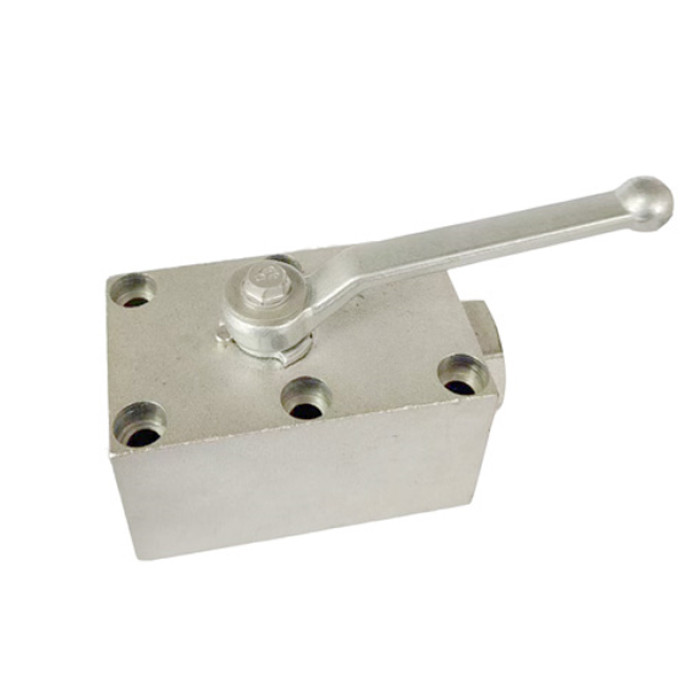

Two-Way High-Pressure Ball Valve (Steel)

This EH series is interchangeable with MHA PKH SERIES, PISTER BKHU SERIES, HYDAC KHP SERIES, GEMELS GPK2 SERIES, and HYDAC KHP3K SERIES. Two-way high-pressure ball valve (steel). Mainly used in hydraulics, particularly in the construction industry and agricultural machinery, water engineering, mining engineering, and paint industries.

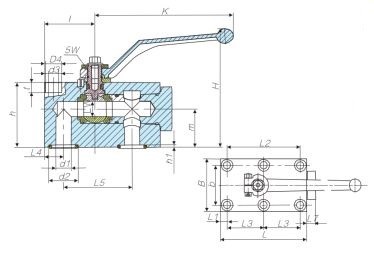

Body Size


Two-Way High-Pressure Ball Valve
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
DN
LW(mm)
I(mm)
L1(mm)
L2(mm)
L3(mm)
L4(mm)
L5(mm)
L7(mm)
L(mm)
EHPK06
06
6
26
8.5
70
/
8.5
35
6
57
EHPK10
10
10
29
7.5
55
/
10
44
10
70
EHPK16
16
13
42.5
7.5
83
41.5
16
58
10
98
EHPK20
20
20
51
10
97
48.5
20
69
10
117
EHPK25
25
25
62
10
115
57.5
24
81
10
135
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
B(mm)
b(mm)
H(mm)
h(mm)
m(mm)
SW(mm)
K(mm)
d1xd2xh1
(mm)
d3xd4xt
(mm)
O-Ring
EHPK06
40
27
80
80
15.5
9
117
6x11.8x1.9
6.5x10.5x7
7x2.5
EHPK10
55
40
93
93
24.5
9
117
9.5x14.9x1.9
8.4x13.5x8.5
10x2.5
EHPK16
60
45
100.5
100.5
34
9
117
13x24.9x1.9
8.4x13.5x8.5
20x2.5
EHPK20
70
51
110
110
37.5
14
171
20x29x2
10.5x16.5x10.5
23.47x2.62
EHPK25
80
60
118
118
44.5
14
171
25x34.9x2.3
10.5x16.5
29x3

Technical Specifications

DN
Max. Work Pressure (bar)
06
500
10
350
16
350
20
350
25
350
Material:
Steel
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
MATE 500 (CRIII)
Specifications:
Series Interchange:
MHA PKH SERIES, PISTER BKHU SERIES,
HYDAC KHP SERIES, HYDAC KHP3K SERIES, GEMELS GPK2 SERIES
Ball Seals:
POM
Connection:
Handle
Disconnection:
Handle
Connection Under Pressure:
No Allowed
